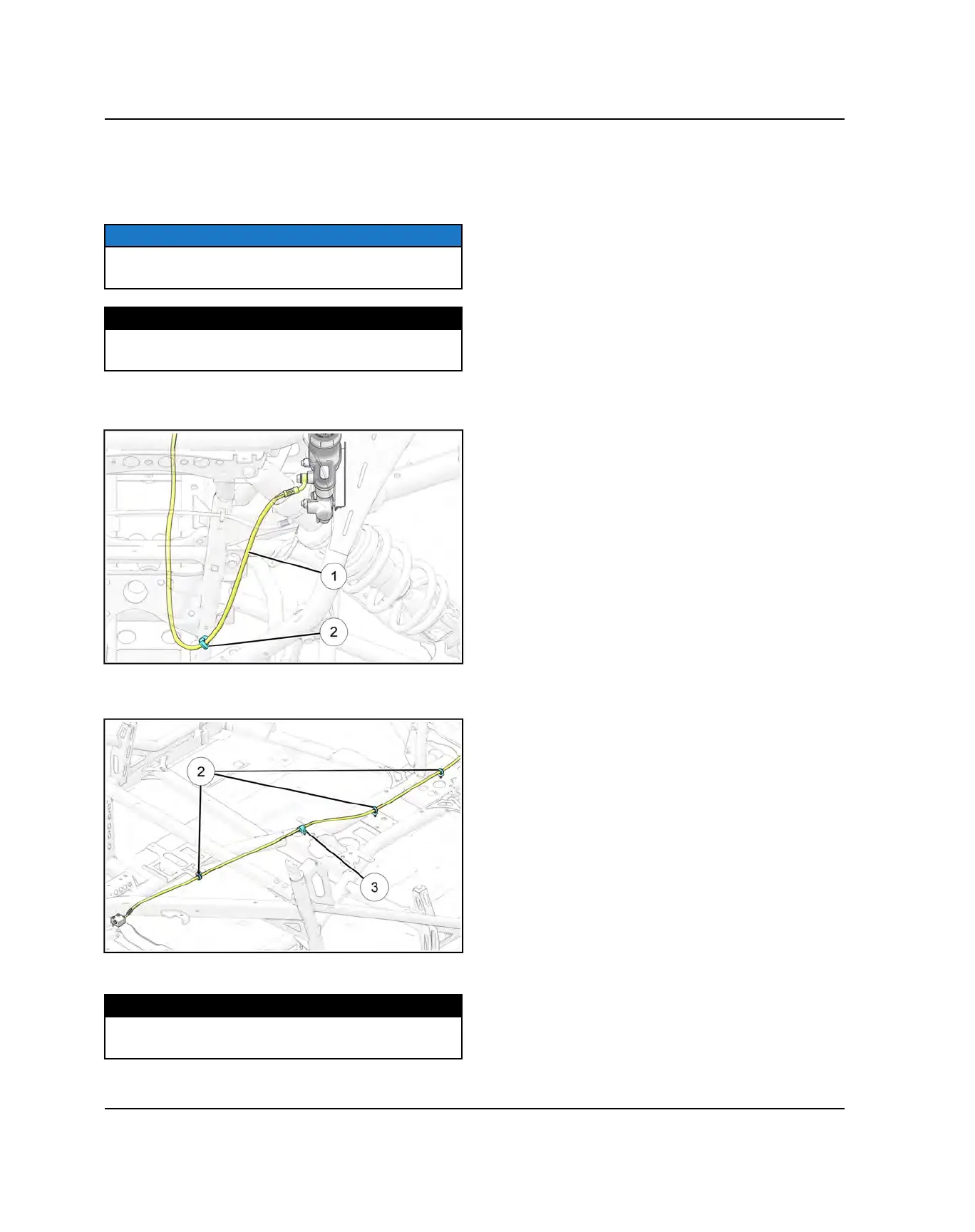

REAR BRAKE LINE FROM MASTER CYLIN-
DER TO JUNCTION BLOCK ROUTING
1. If not previously done, install brake line onto master
cylinder.
NOTICE
The center brake line is attached to the rear port of the
Master Cylinder.
TORQUE
Banjo Bolt:
15 lb-ft (20 Nm)
2. From the master cylinder, route the brake line
q
down the chassis and secure in the routing clip
w
.
3. Route the brake line rearward along the chassis and
secure with the routing clips
w
and routing clamp
e
.
4. Install brake line onto the junction block.
TORQUE
Brake Line to Junction Block:
13 lb-ft (18 Nm)
