9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
10.93

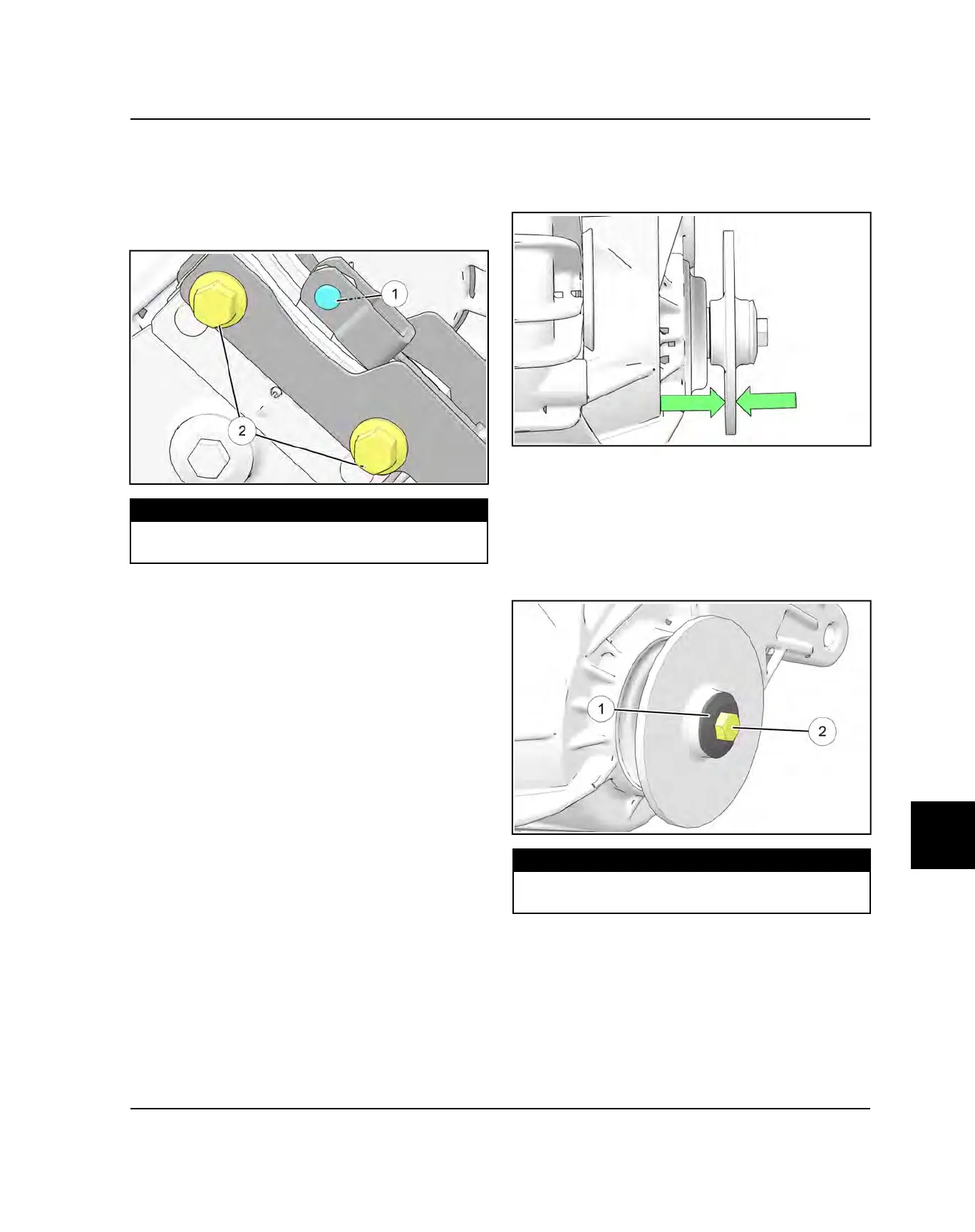

CALIPER INSTALLATION
1. Install the parking brake caliper over the brake disc.
Align the caliper mounting sleeves with the holes in
the mount bracket.
2. Install and tighten the two caliper mount / shift cable
bracket fasteners
w
to specification.
TORQUE
Parking Brake Caliper Mount Bracket Bolts:
37 lb-ft (50 Nm)
3. Install the cable, pin and clip pin
q
. Test the park
brake for proper function.
DISC INSPECTION / REPLACEMENT
Measure the brake disc with a micrometer. If the
thickness of the disc is less than specified, replace the
brake disc.
1. Remove the parking brake caliper from the disc.
2. Using a 1/2” socket and ratchet, remove the brake
disc retaining bolt and flat washer.
3. Remove the disc from the transmission shaft.
4. Install the new brake disc. Install the flat washer
q
and mounting bolt
w
. Torque the mounting bolt to
specification.
TORQUE
Parking Brake Disc Mounting Bolt:
26 lb-ft (35 Nm)
BRAKE SYSTEM
