9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.

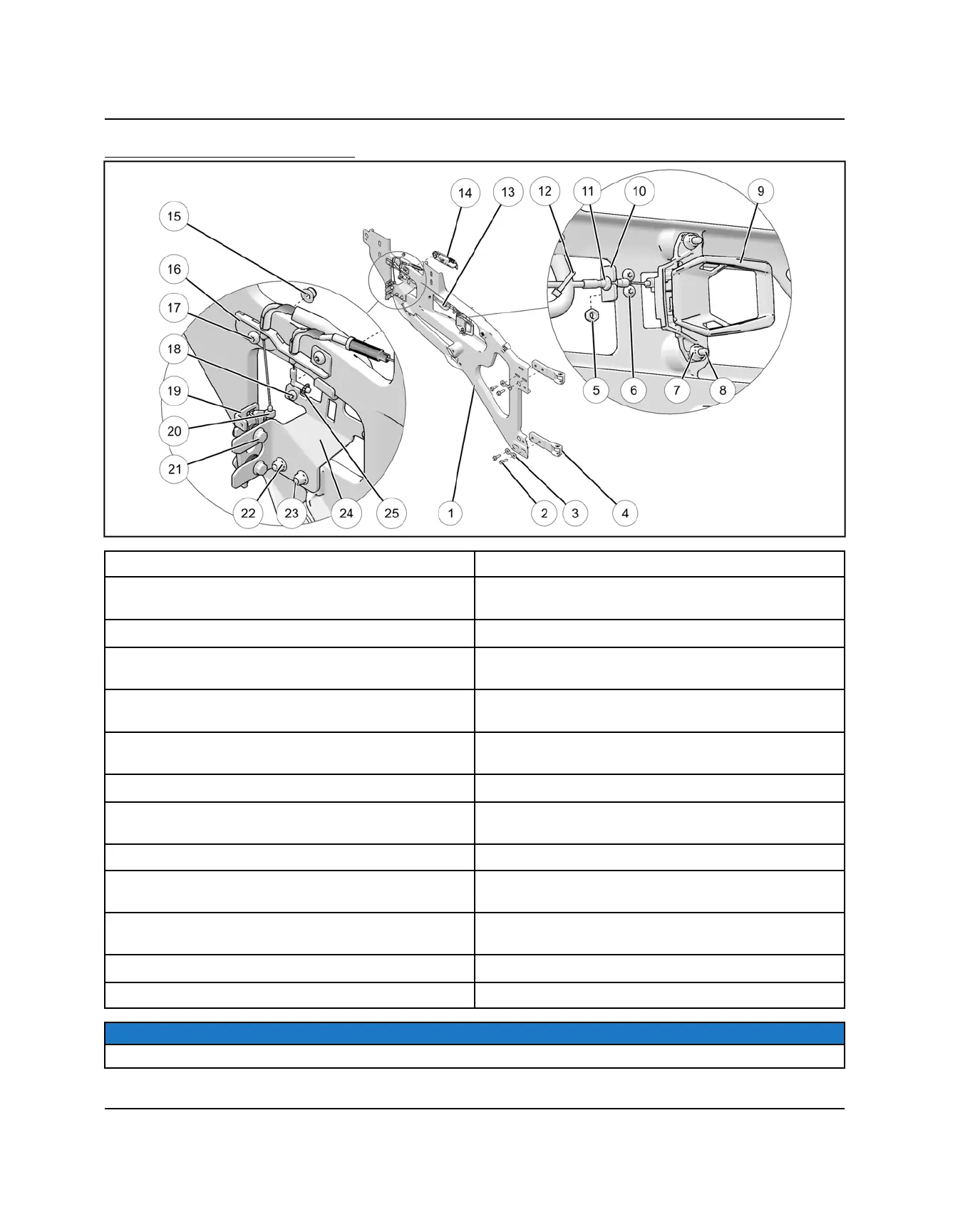

FRONT DOOR FRAME ASSEMBLY
q
Door Frame
g
Outer Door Handle
w
Door Hinge Fasteners
27 lb-ft (37 Nm)
h
Nut
e
Door Clamp Bracket
j
Dual Cable Retention Bracket
r
Door Hinge
k
Dual Cable Retention Bracket Fasteners
3.5 ft-lbs (4.7 Nm)
t
Nut
l
Outer Door Handle Fasteners
22 in-lbs (2.5 Nm)
y
90 Deg Cable Retention Bracket Fasteners
3.5 ft-lbs (4.7 Nm)
1(
Door Latch
u
Nut
2)
Door Latch Clip
i
Inner Door Handle Fasteners
3.5 ft-lbs (4.7 Nm)
2!
Door Latch Fasteners
10 ft-lbs (13 Nm)
o
Inner Door Handle
2@
Nut
a
90 Deg Cable Retention Bracket
2#
Door Handle Bracket Fastener
3.5 ft-lbs (4.7 Nm)
s
Front Door Cable Jam Nut
3.5 ft-lbs (4.7 Nm)
2$
Door Handle Bracket / Latch Mount
d
Panduit Strap
2%
Cable Retainer
f
Front Door Cable
NOTICE
LH door frame shown. RH door frame similar.
BODY / FRAME
