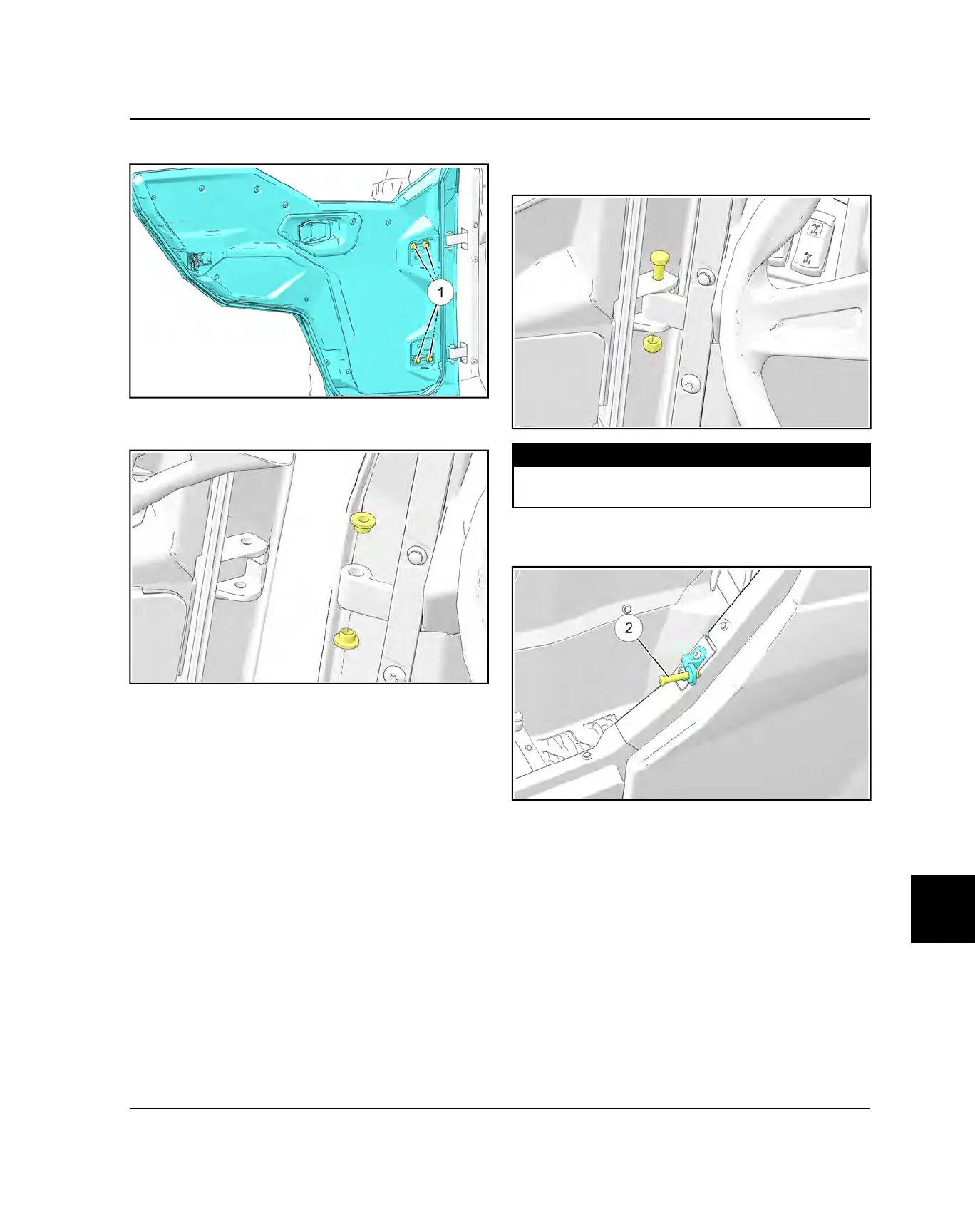

2. Loosen 13mm door hinge fasteners
q
.
3. Place door pivot bushings in door hinge mounting
brackets.
4. With the help of an assistant, align the Driver side
front door hinges with door hinge mounting brackets.
5. Install the door hinge pivot bolts and nuts into the
door hinges using a 13 mm socket and wrench.
Torque the nuts to specification.
TORQUE
Door Hinge Pivot Nut:
8 lb-ft (11 Nm)
6. Verify the striker is in a nominal position both
vertically and laterally and adjust if needed.
