Polaris General 2020

12
9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
12.11

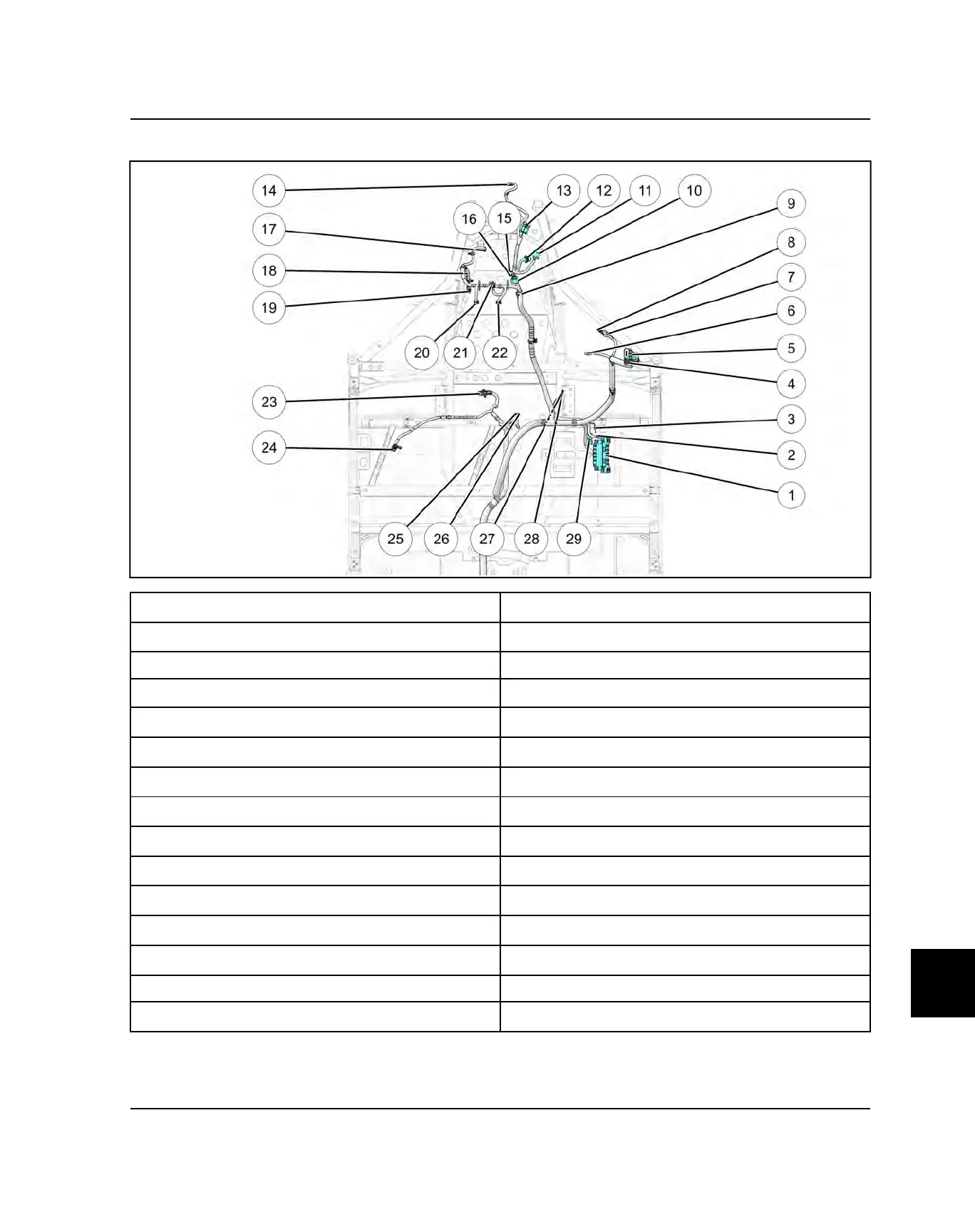

REAR VIEW
q
Relay/Fuse Block
j
Reverse Beeper #1
w
Start Solenoid
k
Vehicle Speed Sensor
e
Start Solenoid B+
l
Transmission Switch
r
ECM, Code 4
1(
Crank Position Sensor
t
ECM, Code 13
2)
MAG Fuel Injector
y
Purge Solenoid
2!
T-Map
u
Ground, Ignition Coil
2@
PTO Fuel Injector
i
Ignition Coil
2#
Stator AC
o
Coolant Temp Sensor
2$
Fuel Pump & Sender
a
Oxygen Sensor
2%
12V Receptacle LO (Rear Console)
s
ETC Throttle Body
2^
12V Receptacle HI (Rear Console)
d
Turf Relay
2&
Ground, Rear Chassis #1
f
Taillight Harness
2*
Ground, Rear Chassis #2
g
Video Rear
2(
Coil Ground Diode
h
Reverse Beeper #2
CHASSIS / BODY ELECTRICAL
