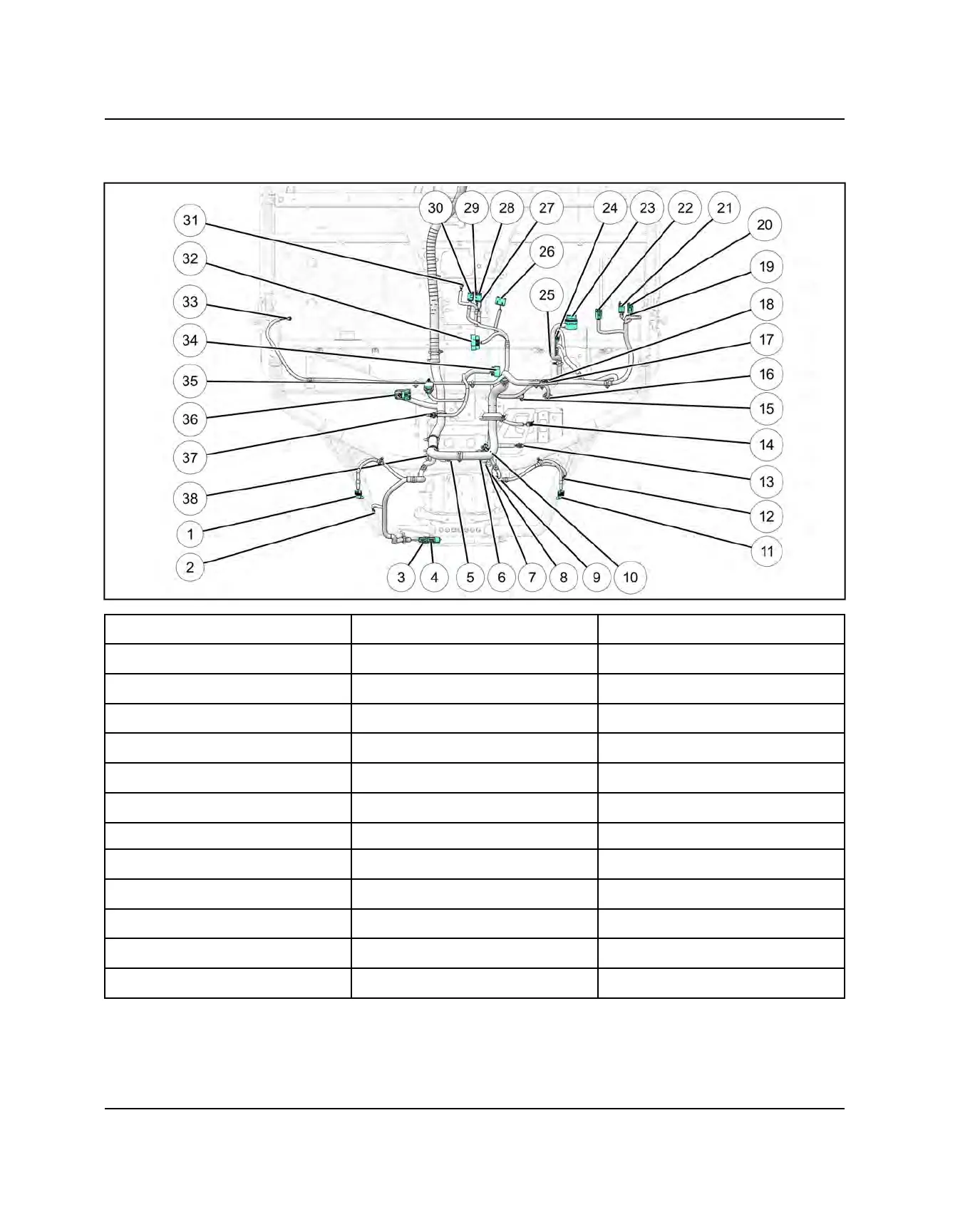

HARNESS COMPONENT LOCATIONS - INTL (ABS)
FRONT VIEW
q
RH Headlight
g
Brake Fluid Level Switch
2&
12V Receptacle HI (Dash)
w
RH Front Turn Signal
h
Pedal Position Sensor
2*
Hazard Switch
e
Voltage Regulator AC Input
j
Brake Pedal Switch
2(
12V Receptacle LO (Dash)
r
Voltage Regulator DC Out
k
Operator Alarm Signal
3)
Fog Light Switch
t
Winch Contactor
l
Operator Alarm B+
3!
LED Light #5
y
LF ABS Sensor
1(
LED Light #1
3@
Infotainment
u
Fan
2)
Winch Switch
3#
LED Light #3
i
Horn Ground
2!
AWD/2WD/TURF Switch
3$
Flasher Module
o
Horn Enable
2@
Turn/Light/Horn Switch
3%
Diagnostic
a
AWD Coil
2#
Speedometer
3^
ABS Controller
s
LH Headlight
2$
EPS Power
3&
Pulse Bar
d
LH Front Turn Signal
2%
EPS Signal
3*
RF ABS Sensor
f
Brake Pressure Switch
2^
Key Switch
CHASSIS / BODY ELECTRICAL
