9850067 R01 - 2020-2021 GENERAL / GENERAL XP Service Manual
© Copyright Polaris Inc.
12.21

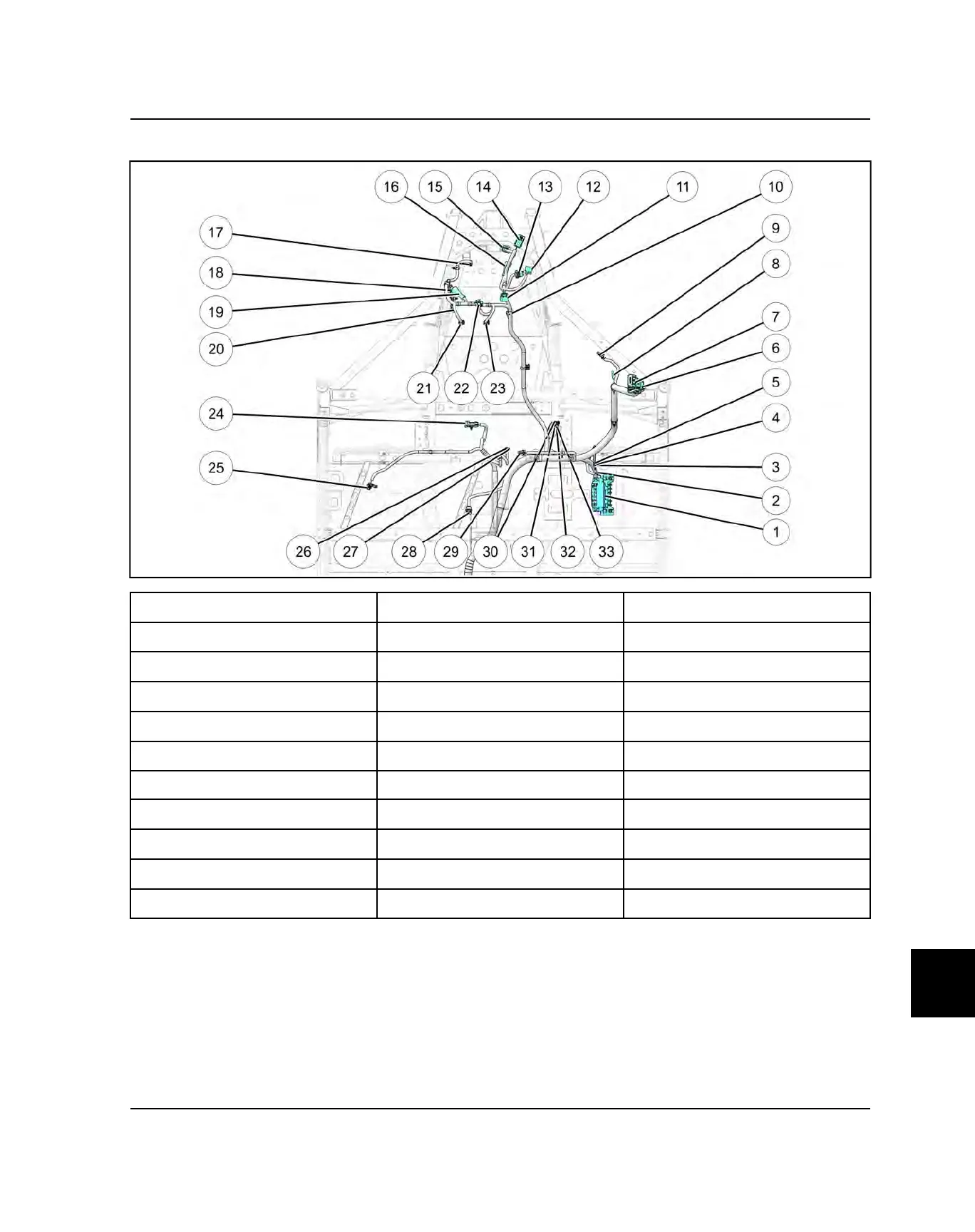

REAR VIEW
q
Relay/Fuse Block
d
ETC Throttle Body
2#
PTO Fuel Injector
w
Start Solenoid
f
Turf Relay
2$
Stator AC
e
Start Solenoid B+ 2
g
Taillight Harness
2%
Fuel Pump & Sender
r
Start Solenoid B+ 1
h
Trailer Jumper
2^
12V Receptacle LO (Console)
t
Start Solenoid B+ 3
j
LR ABS Sensor
2&
12V Receptacle HI (Console)
y
ECM, Code 4
k
Vehicle Speed Sensor
2*
Park Brake
u
ECM, Code 13
l
Transmission Switch
2(
Seatbelt Switch
i
Ground, Ignition Coil
1(
RR ABS Sensor
3)
Ground, Rear Chassis #4
o
Ignition Coil
2)
Crank Position Sensor
3!
Ground, Rear Chassis #3
a
Coolant Temp Sensor
2!
MAG Fuel Injector
3@
Ground, Rear Chassis #2
s
Oxygen Sensor
2@
T-Map
3#
Ground, Rear Chassis #1
CHASSIS / BODY ELECTRICAL
