ESP-LXIVM Series Controllers
Installation
Install the Controller
This section explains how to mount the ESP-LXIVM controller on a
wall (or mounting surface) and connect the wiring.
NOTE: An optional metal cabinet (LXMM) and pedestal
(LXMMPED) or stainless steel cabinet (LXMM-SS) and pedestal
(LXMMPED-SS) are also available for the LX-IVM controller. If
you intend to purchase those options then follow the installa-
tion instructions included with those items and proceed to the
Install Modules section below.
WARNING
This controller must be installed in compliance with local
electrical codes.
Installation Checklist
When installing the ESP-LXIVM controller for the fi rst time, it is rec-
ommended that you complete the following steps in order.
For your convenience a check-off box is provided for each step.
Check box contents ........................................................... page 105
Select a location .................................................................. page 106
Gather installation tools ................................................... page 106
Mount the controller ......................................................... page 108
Install IVM 2-Wire interface module .............................page 109
Connect 2-Wire path(s) ..................................................... page 110
Connect source power ...................................................... page 113
Complete the installation ................................................ page 115

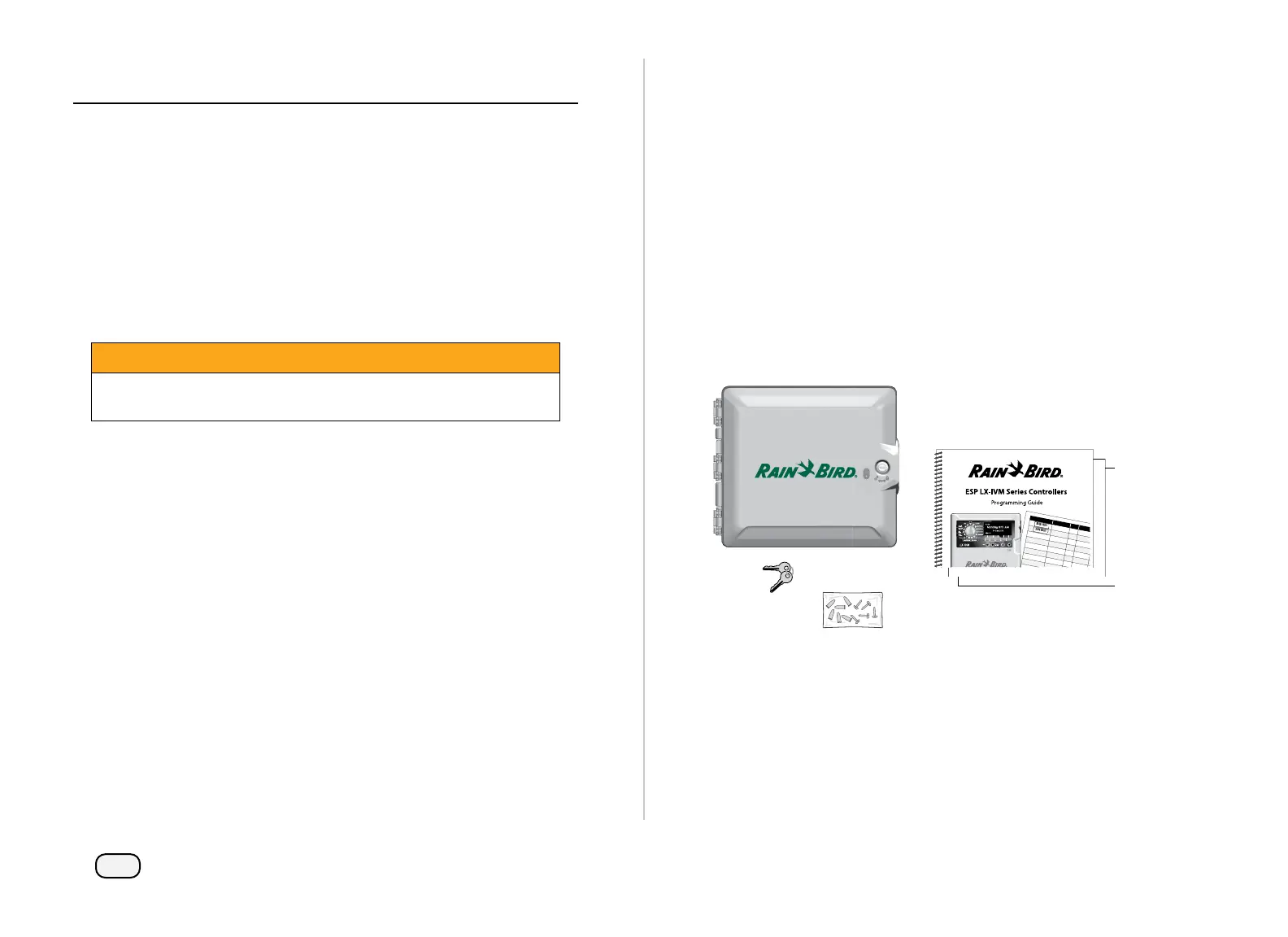

Check Box Contents
All components below are included with your ESP-LXIVM controller
and are required for installation. If anything is missing, please con-
tact your distributor before proceeding.
ESP-LXIVM controller
Controller cabinet keys
Mounting hardware (5 screws, 5 plastic wall anchors)
Programming Guide
Field Device Installation Guide
Controller mounting template
8
ESP LX-IVM Controller
Station
No.
Station 2-Wire Device
Address Label
Description Wire Path Station Uses
1
2
3
4
5
6
7
8
9
10
11
1
2
Entry sprays
Color beds
1
2
4
5 & 6
40005
40006
Box contents
