ESP-LXIVM Series Controllers
Set Station Rates

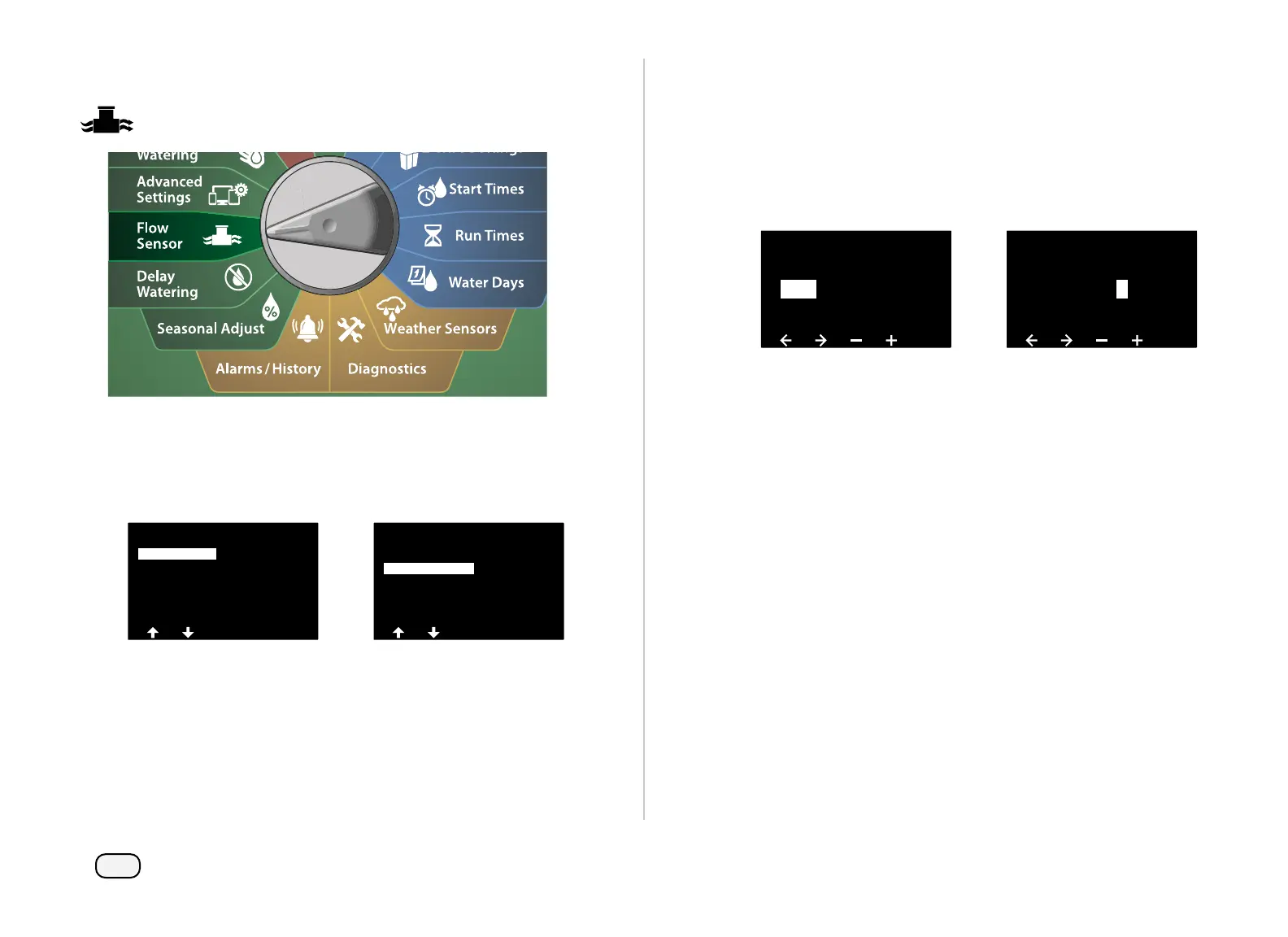

Turn the controller dial to Flow Sensor

At the FLOW SENSOR screen, with Set Flow Rates selected, press
Next.

At the Set Flow Rates screen, press the Down Arrow key to select
Set Station Rates, then press Next.

FLOW SENSOR
Next
Current Flow Reading
Set Flow Units
Set FloWatch
Set FloManager
Set Flow Rates

Set Flow Rates
Next
View Flow Rates
Clear Flow Rates
Set FloZone Rates
Set Station Rates
Learn Flow

At the Set Station Rates screen, press the + and – keys to set the
desired Station (from 1 to 240), then press the Right Arrow key.

Press the + and – keys to set the desired Flow Rate for that sta-
tion. Press the Arrow keys to navigate between the number set-
ting fields.
• Press and HOLD keys to accelerate settings.

Set Station Rates
GPM
0000.0
Station
FZ 01
001
User Entered
Done

Set Station Rates
GPM
0000.01
Station
FZ 01
001
User Entered
Done

Repeat this process to manually set up Flow Rates for additional
stations as desired.
