ESP-LXIVM Series Controllers
View Flow Rates

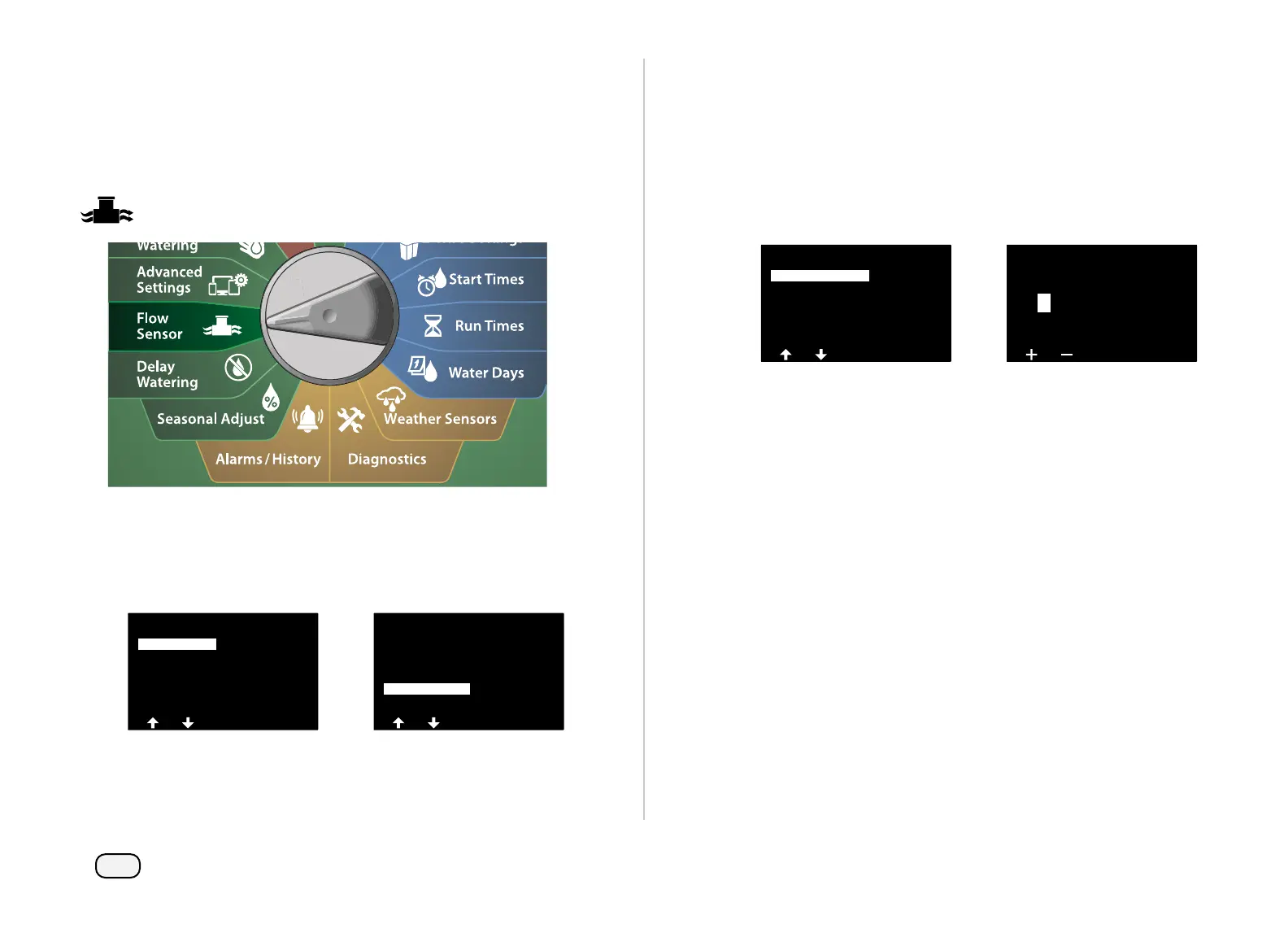

Occasionally you may want to view flow rates and their source for a
station or flow zone.
View Station Rates
Turn the controller dial to Flow Sensor

At the FLOW SENSOR screen, with Set Flow Rates selected, press
Next.

At the Set Flow Rates screen, press the Down Arrow key to select
View Flow Rates, then press Next.

FLOW SENSOR
Next
Current Flow Reading
Set Flow Units
Set FloWatch
Set FloManager
Set Flow Rates

Set Flow Rates
Next
View Flow Rates
Clear Flow Rates
Set FloZone Rates
Set Station Rates
Learn Flow

The View Flow Rates screen appears with View Station Rates
selected; press Next.

At the View Station Rates screen, press the + and – keys to set the
desired station number. The flow zone for each station is shown
below it. The normal flow rate for each station will show to the
right, and the source of the flow rate (Learned or User Entered)
shows below it.

View Flow Rates
Next
View FloZone Rates
View Station Rates

FloZone Flow Rates
FloZone Max GPM
Sensor(s) 1
MV(s) 1
010.51
Back
