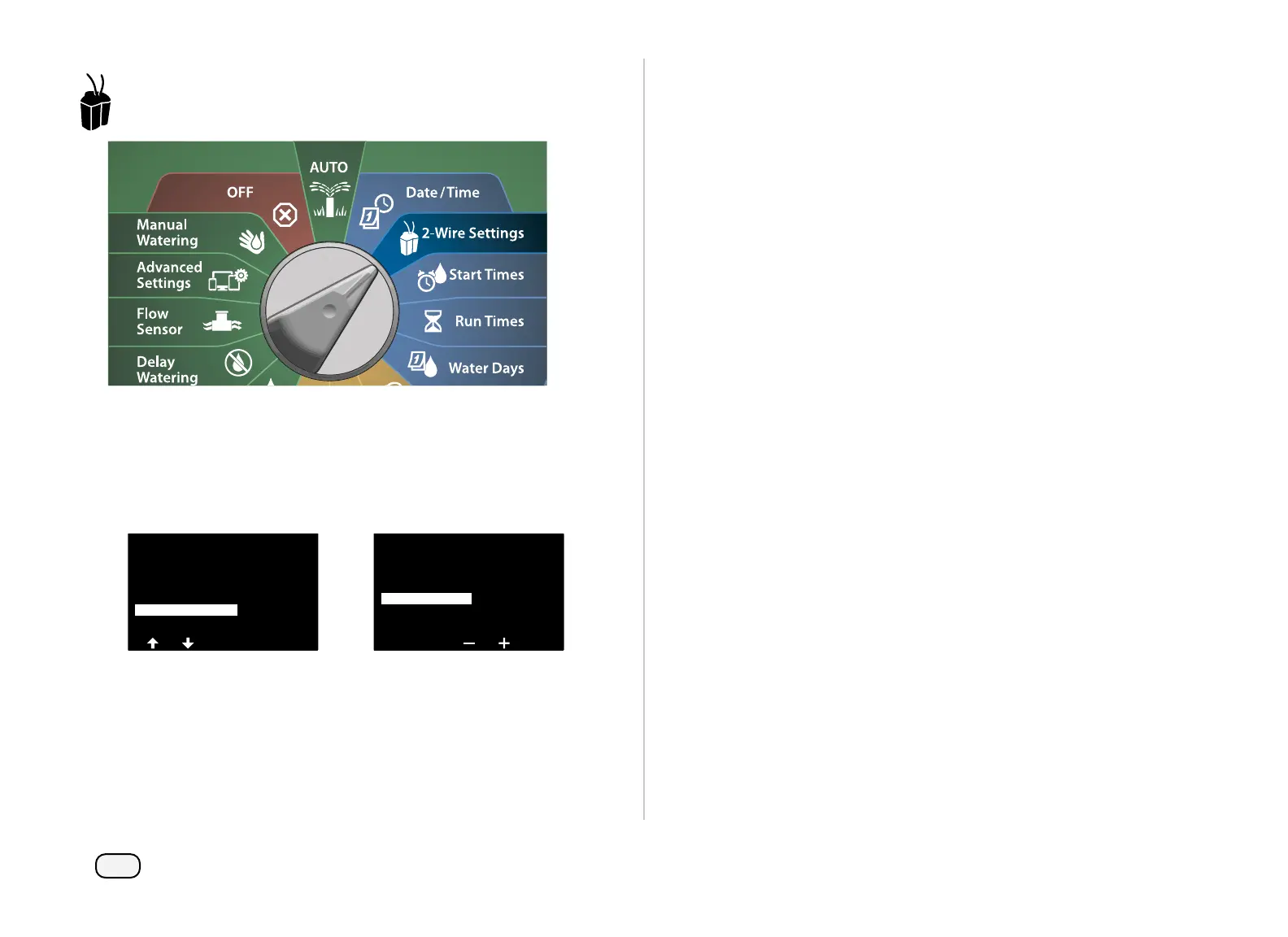

Turn the dial to 2-Wire Settings

At the Advanced Station Settings screen, press the Down Arrow
key to select Station Sequencing, then press Next.

At the Station Sequencing screen, press the + and – keys to
set Station Sequencing by either Station Numbers or Station
Priorities, as desired.

Cycle & Soak
Next
Inter-Station Delay
SimulStations
2-Wire Mapping
Station Sequencing
Advanced Station Settings

Station Sequencing
Station Numbers
Done
Sequence by:

NOTE: When Station Sequencing is set to Sequence by Sta-
tion Priorities, you can still manually operate stations in station
number sequence using the Test All Stations option from the
Manual Watering dial position. See "Test All Stations" on page
101 for more details.
2-Wire Mapping
2-Wire mapping identifies the wire path (one of four) that the device
is connected to. This could be helpful for Diagnostics.
For example, if you run “List Not responding” you will get a list of
stations not communicating along with the wire path they are con-
nected to. If they are all in the same wire path, it could help isolate
the cause.

NOTE: 2-Wire mapping is not mandatory and not doing so will
not stop irrigation functions.
