ESP-LXIVM Series Controllers
Advanced Station Settings
Cycle+Soak™
The ESP-LXIVM controller Cycle+Soak feature allows water to be
applied to stations intermittently.
This can apply to any station and is useful for locations such as hill-
sides which can be difficult to irrigate effectively.
Cycle+Soak consists of two settings:
1. Cycle time: How long a station will run before soaking.
2. Soak time: How long irrigation is paused before applying
another cycle.
For example, a station can be set up to receive 15 minutes of irriga-
tion in three 5 minute cycles, with two 10 minutes periods of soak
time in between waterings.
NOTE: Cycle+Soak settings apply to stations no matter which
programs it may be used in.
Turn the dial to 2-Wire Settings
Press the + and – keys to set the flow sensor K Factor. Press the
Arrow keys to navigate between the number setting fields.
Continue pressing the Right Arrow key to select Offset. Press the
+ and – keys to set the Offset number, then press Next.

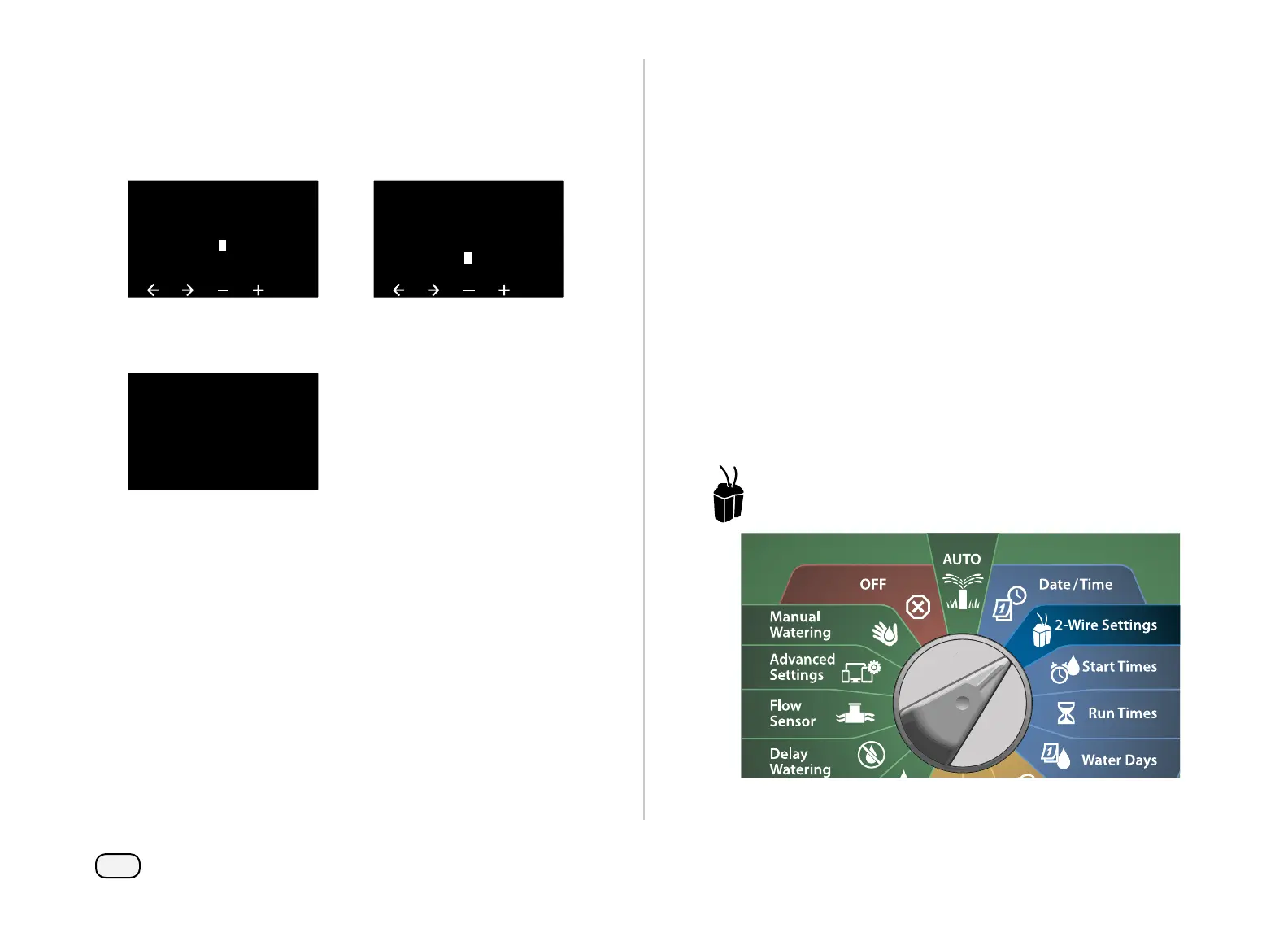

Flow Sensor Setup
FS 01
K Factor:
Offset:
0 03.918
+ 00.000
Flow Sensor Setup
FS 01
K Factor:
Offset:
003.918
+ 00.045
The Master Valve that is assigned to the flow sensor is shown, and
each assigned FloZone is shown below the MV field.
Flow Sensor Setup
FS 01
Assigned to:
Master Valve: MV1
FloZone: FZ 1
Repeat this process to set up additional custom flow sensors. Be
sure to note each flow sensor on your Programming Guide for
future reference.
