ESP-LXIVM Series Controllers
Confirm Programming
The ESP-LXIVM controller can make calculations and provide feed-
back on Start Times and total Run Times for programs and stations.
Program Summary
Review program information for all programs:

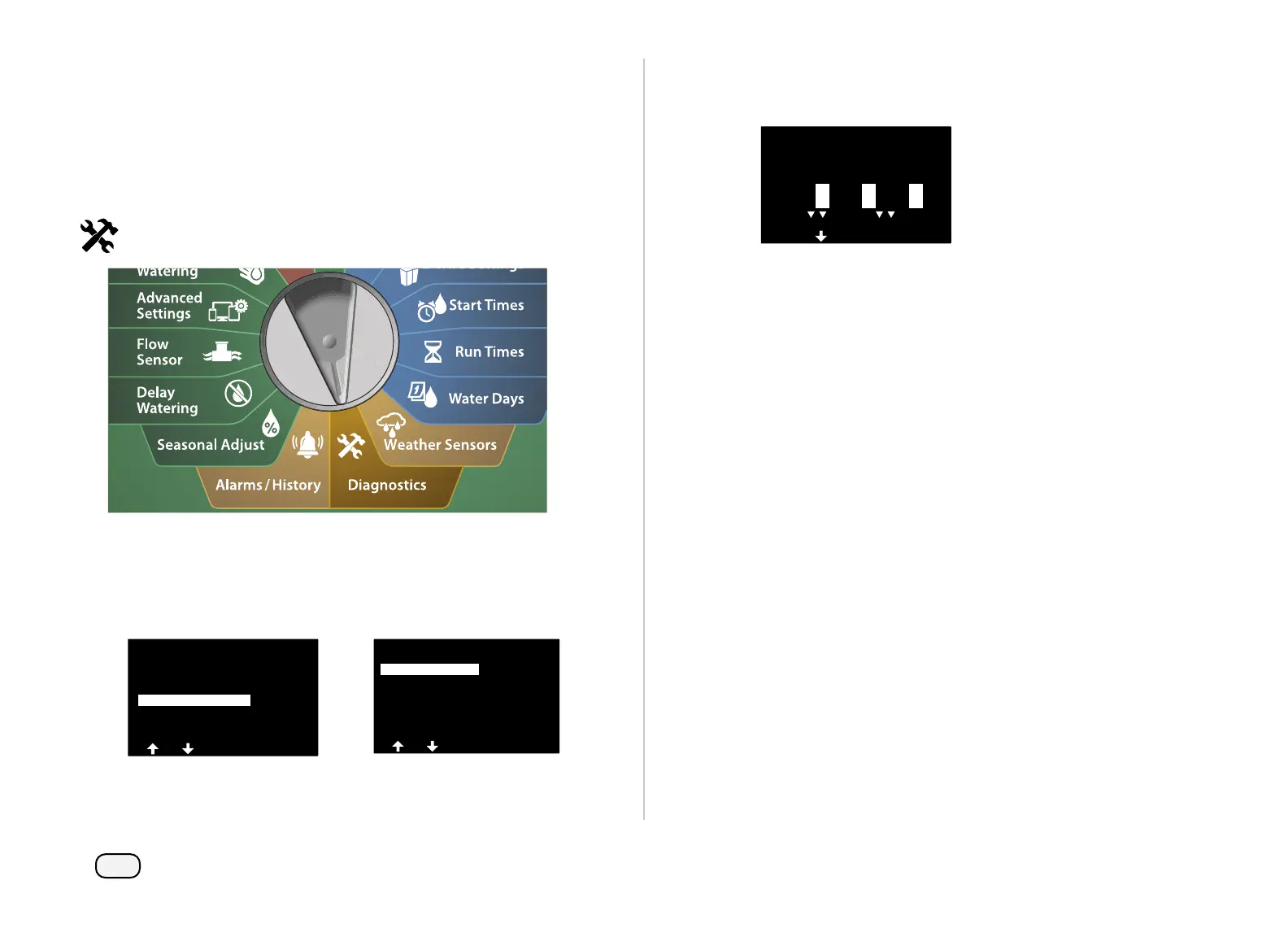

Turn the controller dial to Diagnostics

At the DIAGNOSTICS screen, press the Down Arrow key to select
Confirm Programming, then press Next.

At the CONFIRM PROGRAMS screen, with Program Summary
selected, press Next.

DIAGNOSTICS
Test All Stations
Next
Diagnostics
Confirm Programming

CONFIRM PROGRAMS
Program Summary
Next
Review Programs
Program Run Times
Station Run Times
Review Master Valves

The Program Summary screen appears, providing a summary of
Run Times, Start Times and Water Days for all programs.

Program Summary
PGM
02
01
03
Time
Run
Time
Start
Days
Water
Y
N
N
Y
N
N
Y
N
N
Done
In the example above:
• Program 1 will run because it has Station Run Time, Start Time
and Water Days all programmed, as indicated by the “Y” in each
column.
• Program 2 and 3 will not run as they are missing all programming,
as indicated by the “N” in each column.
