114
ESP-LXIVM Series Controllers

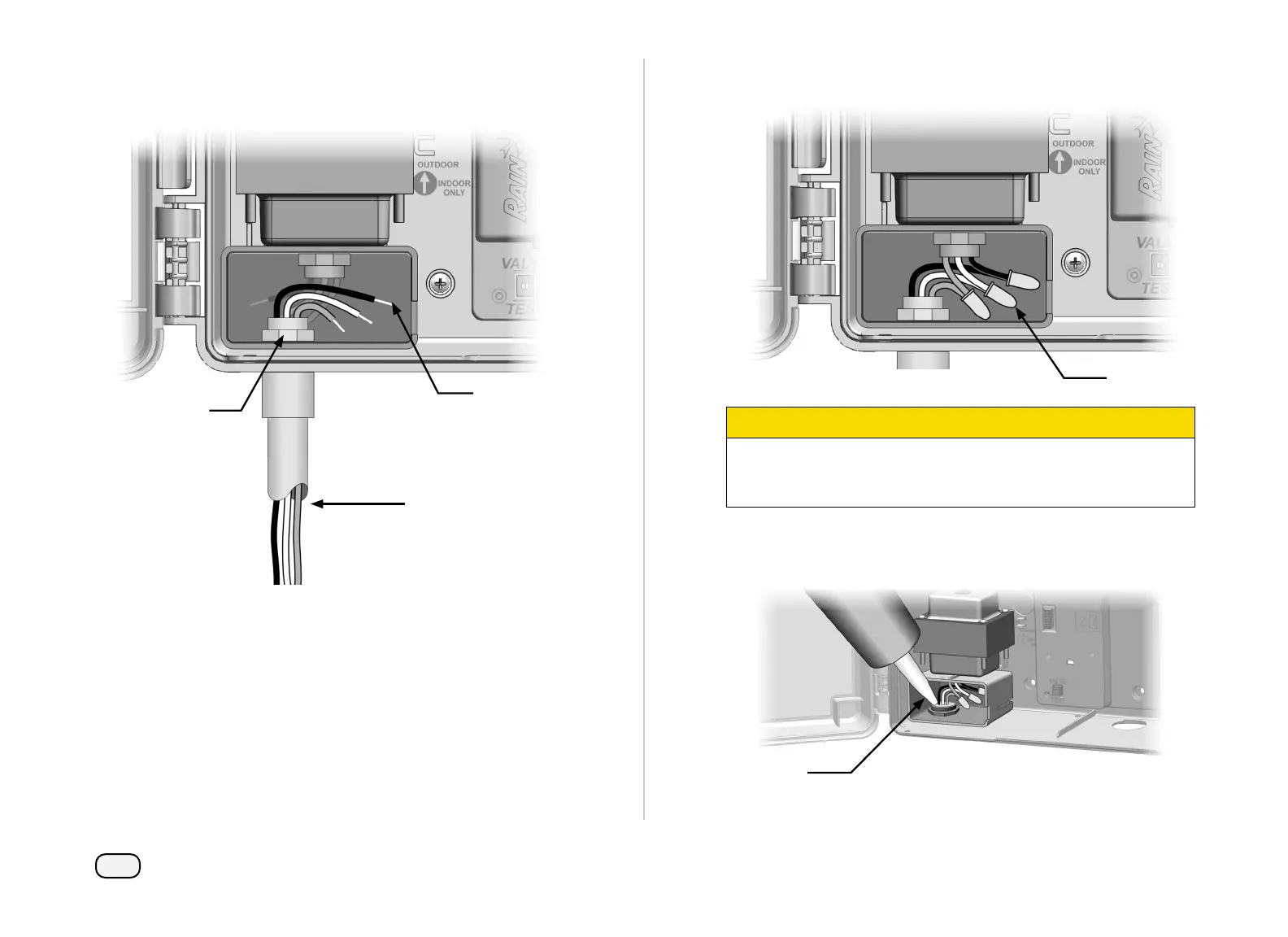

Feed the three supply wires from the power source through the
conduit into the wiring compartment.
3X
3 wires
Using supplied wire nuts, connect the wires accordingly.
3X
CAUTION
The ground wire MUST be connected to provide electrical
surge protection. You will void the controller warranty if you
do not ground the controller.
Once wiring is completed, fill top of conduit with waterproof
caulking to prevent insect intrusion into the controller cabinet.
Verify that all connections are secure. Then replace the cover of
the transformer wiring compartment and secure it with the screw.
To Next Page
