Remote control commands

R&S

NRPxxS(N)

81User Manual 1177.5079.02 ─ 15

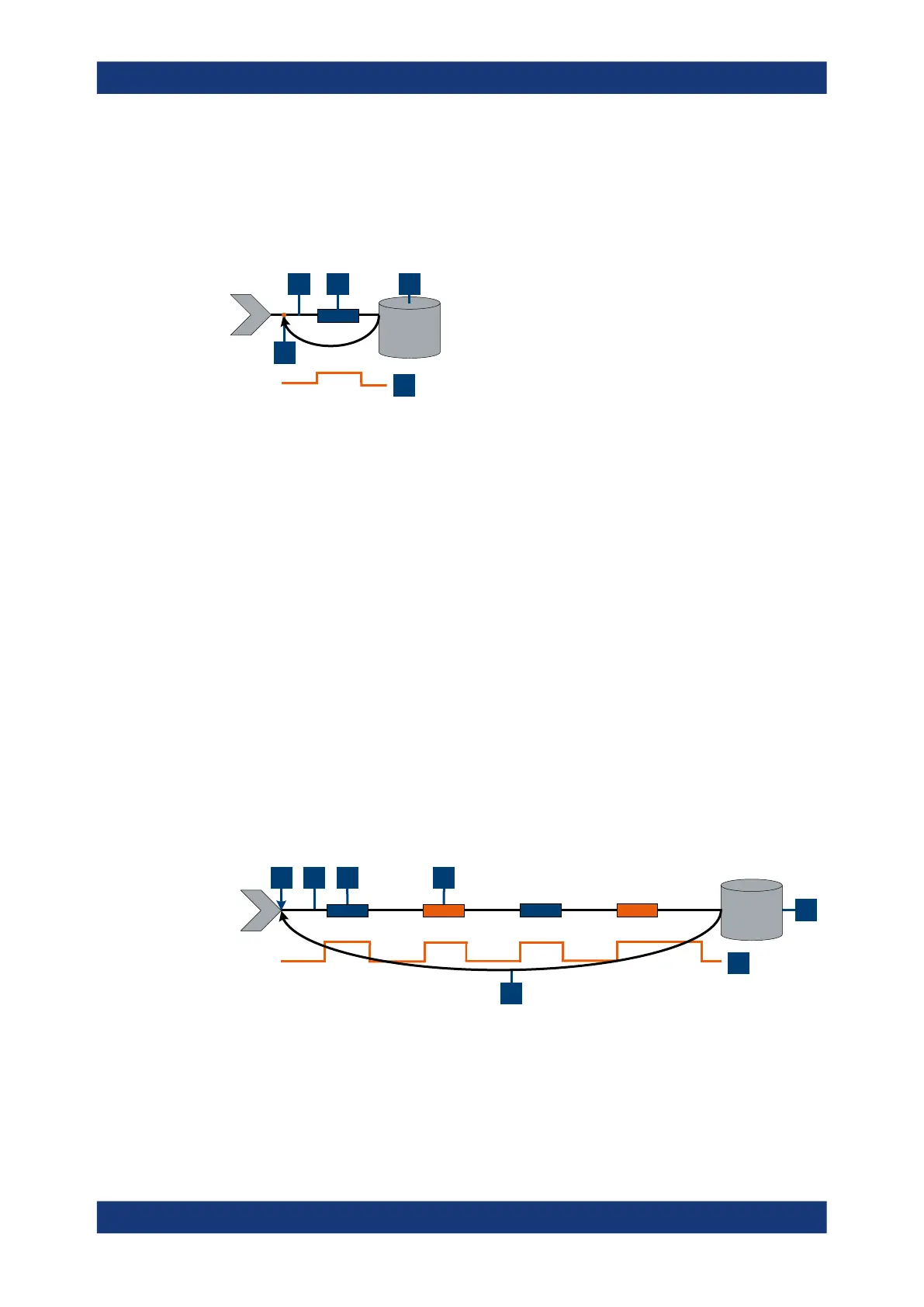

Example: Average count = 1

[SENSe<Sensor>:]AVERage:COUNt 1

For average count 1, the setting of the termination control has no impact. In both

cases, the measurement runs for the duration of one aperture time. Then, settled data

is available, and the power sensor returns to the idle state.

1 2 3

1 = Trigger event

2 = Noninverted chopper phase

3 = Measurement result

4 = Trigger synchronization

5 = Return to idle state

9.5.4.2 Trace mode

General settings for the first two examples:

●

INITiate:CONTinuous ON

●

[SENSe<Sensor>:]TRACe:AVERage:COUNt 2

●

[SENSe<Sensor>:]TRACe:AVERage[:STATe] ON

Example: Repeating termination control

Further settings for this example:

●

[SENSe<Sensor>:]TRACe:AVERage:TCONtrol REPeat

Every chopper phase is started by a trigger event and lasts the defined trace time. Dur-

ing a chopper phase, the trigger synchronization is high (TRIGger:SYNC:STATe ON).

After 2 chopper phases, 1 measurement is completed. As defined by the trace average

count, after 2 measurements, the trace measurement result is averaged and available.

2 3 4

= Start of the measurement cycle

2 = Trigger events

3 = Noninverted chopper phase

4 = Inverted chopper phase

5 = Trace measurement result

6 = Trigger synchronization

7 = Return to the start of the measurement cycle

Controlling the measurement
