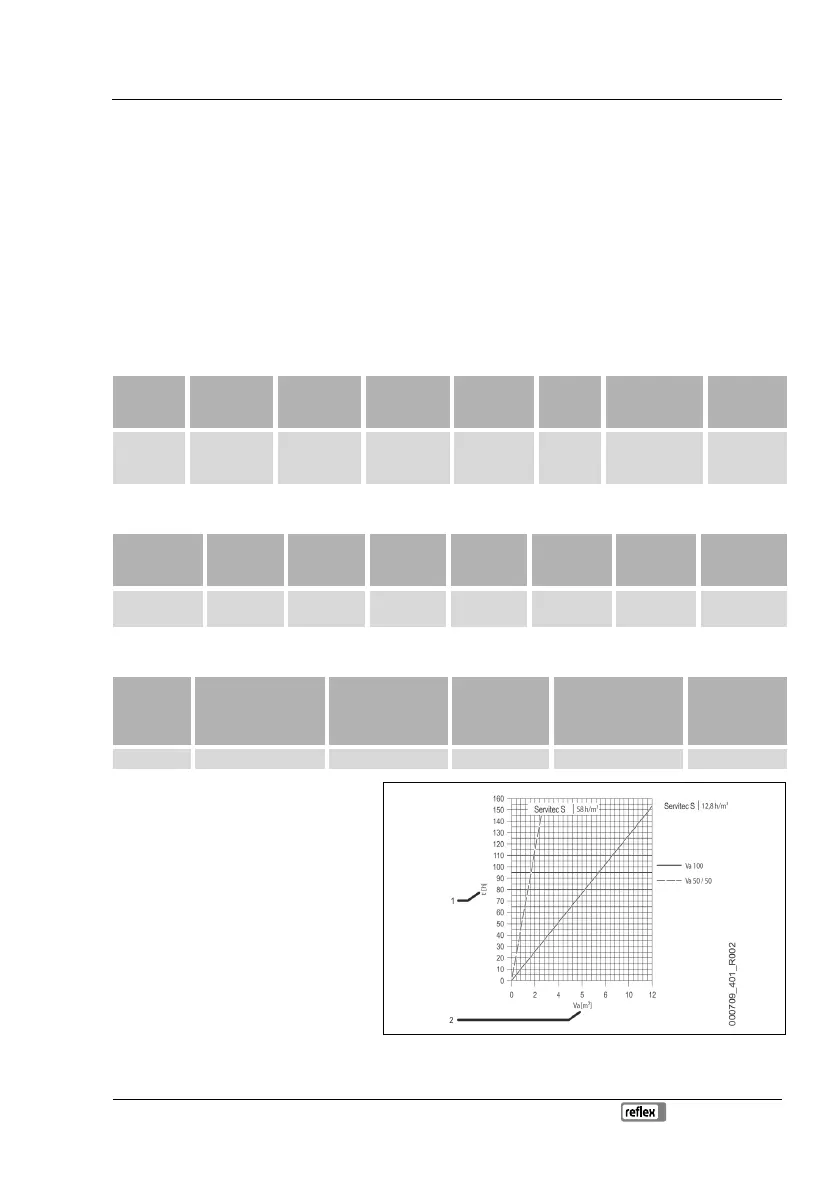

Technical data
Vacuum spray degassing — 20.05.2019 English — 11
5 Technical data

Note!
The following values apply for all systems:
– Permissible flow temperature:
–
Permissible operating temperature make-up degassing:
–
Permissible ambient temperature:
–
Permissible operating gauge pressure:
–
Maximum inlet pressure for make-up:
–
Make-up capacity:
–
Separation level, dissolved gases:
–
Separation level, free gases:
– Degree of protection:
70° C
0 °C
– 30 °C
0 °C
– 35 °C
8 bar
6 bar
0.05 m³/h
≤ 90 %
100 %
IP 42
5.1 Electrical system
Type
Power output
(kW)
Power supply
(V / Hz)
Fusing
(A)
Number of
RS-485
interfaces
I/O
module
Electrical voltage
control unit
(V, A)
Noise level
(dB)
Servitec S 0.2 230 / 50 10 1 piece as
plug-in
module
External
optional
module
230, 4 54
5.2 Dimensions and connections
Type
Weight
(kg)
Height
(mm)
Width
(mm)
Depth
(mm)
Degassing
device
connection
Degassing
system
connection
Make-up
connection
Servitec S 12.4 572 340 211 Internal
thread ½ "
Internal
thread ½ "
Internal
thread ½ "
5.3 Operation
Type
System volume
(100% water)
(m³)
System volume
(50% water 50%
glycol)
(m³)
Working
pressure
(bar)
Permissible operating
gauge pressure
(bar)
Operating
temperature
(°C)
Servitec S 6 4 0.5 – 4.5 8 0 – 70
Standard values for the maximum "Va" system
volume to be degassed under extreme conditions
during commissioning at a nitrogen reduction
from 18
mg/l to 10 mg/l.
1
Continuous degassing "t" [h]
2
. System volume "Va" [m
3
]
