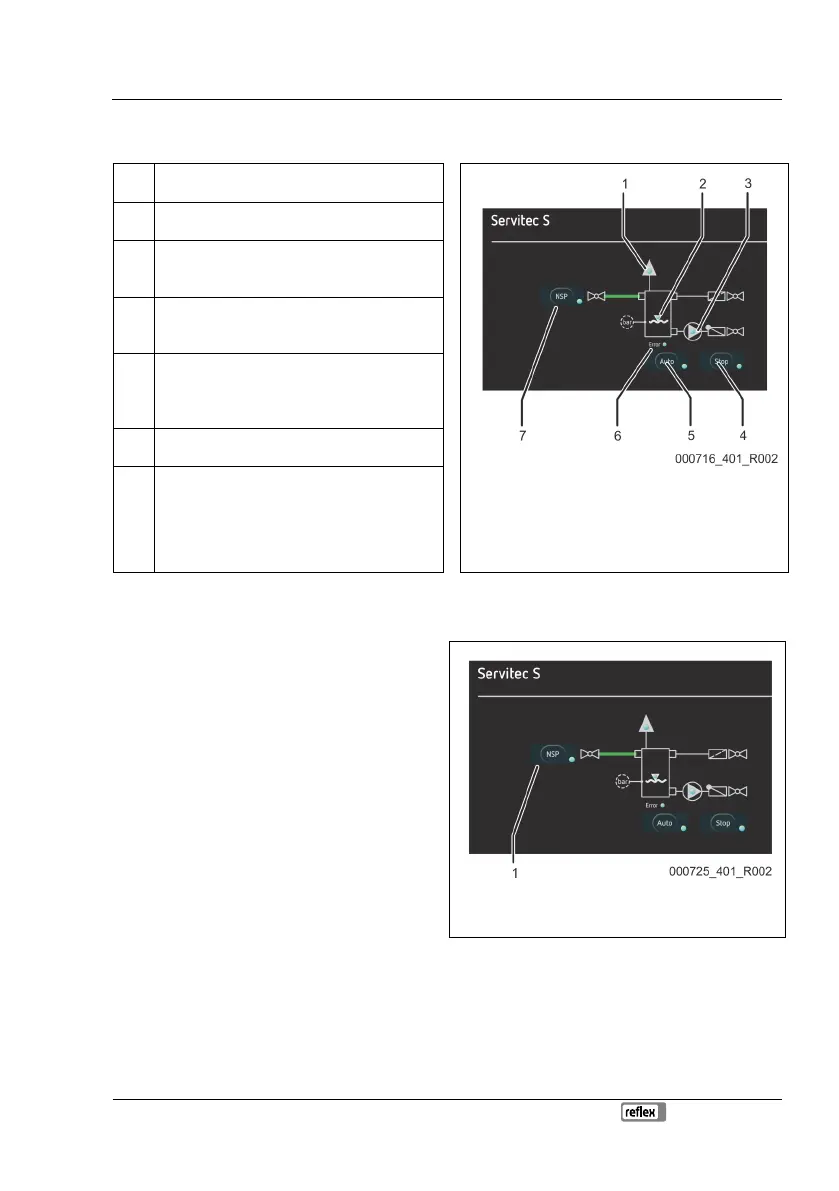

9.2 Operator panel
1 Degassing LED
• Turns green during degassing
2 Water level LED
• Lights up red if a warning exists
3 Pump LED
• Lights up green during operation
• Flashes during vacuum test
4 Stop button/LED
• For stop mode
• Lights up yellow
5 Auto button/LED
• For automatic mode
• Acknowledge error messages
• Lights up green
6 Error LED
• Lights up red if an error exists
7 NSP button/LED
• For make-up
• Lights up green
• Only active in “Levelcontrol” operating mode if
there is no externally connected pressure
maintenance station.
9.3 Manual make-up
If no pressure maintenance station is
connected in operating
-up can be performed via the NSP button
Press the button for 10 seconds to increase the pressure
by 0.1 bar.
Repeat for a further pressure increase.
Operating mode “Magcontrol” can only be activated
and processed via the Reflex Control Smart App for
Android & iOS.
In “Magcontrol” operating mode the NSP button on
the operating display is inactive.
However, the system can also be operated without
the app and then runs in the preset automatic
9.4 Messages
If errors occur during operation of the system, these are visualised via the Error LED in combination with other LEDs.
• Errors must be acknowledged with the Auto button.
– Until acknowledgement, the system remains in the error state.
• Warnings need not be acknowledged. The system continues to run.
– As soon as the cause of the warning is cleared, the corresponding LED goes out.
