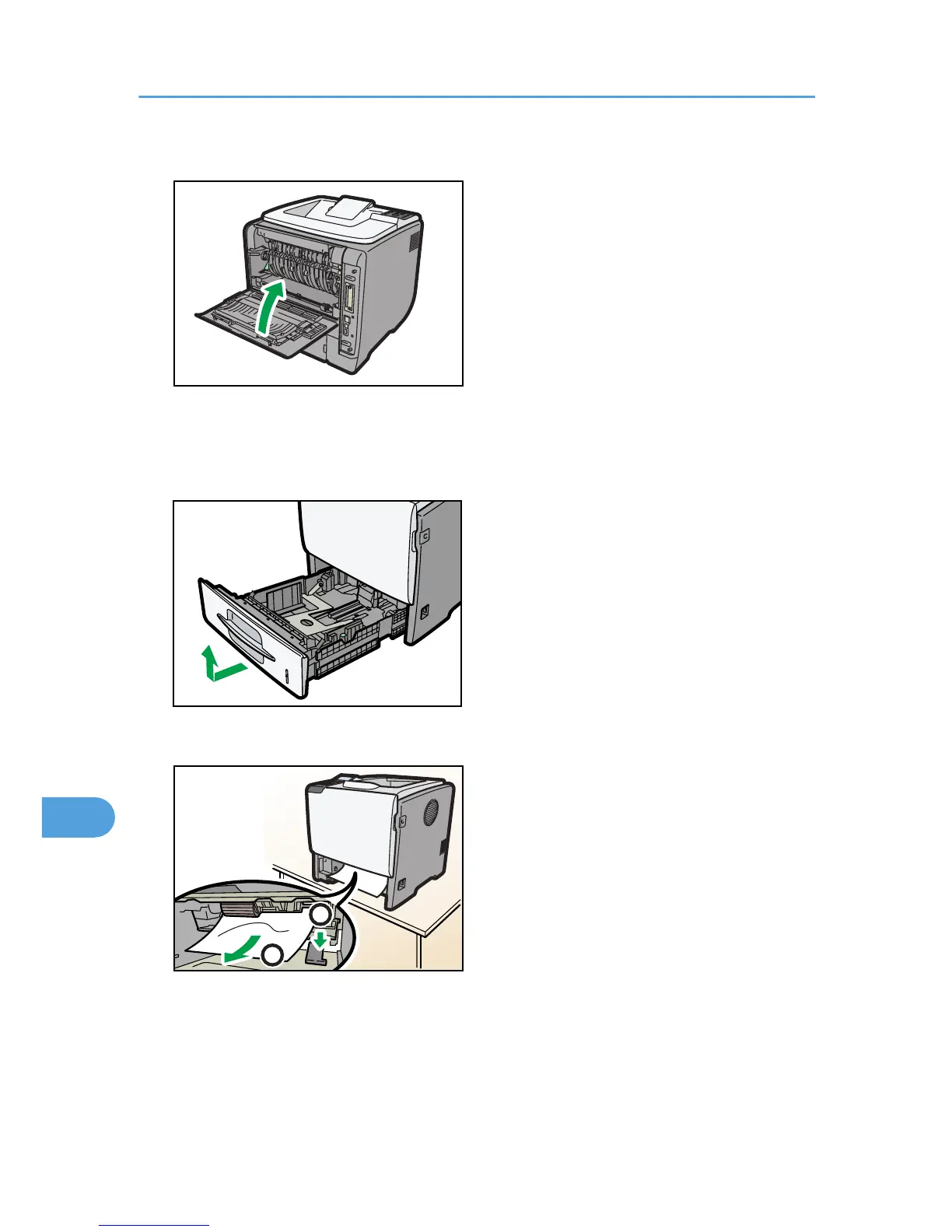

3. Close the rear cover.
CEC049
If the printer does not recover from the error, a paper jam may have occurred in another location. In
that case, proceed to the following steps.
4. Lift and pull Tray 1 carefully, and then pull it out with both hands.
CEC031
5. Push down on the Z2 lever, and remove the jammed paper.
1
2
CEC079
10. Removing Misfed Paper
206
10

Ricoh Aficio SP 5200DN Specifications

General

Brand	Ricoh
Model	Aficio SP 5200DN
Category	Printer
Language	English
