Ricoh Aficio SP 5200DN

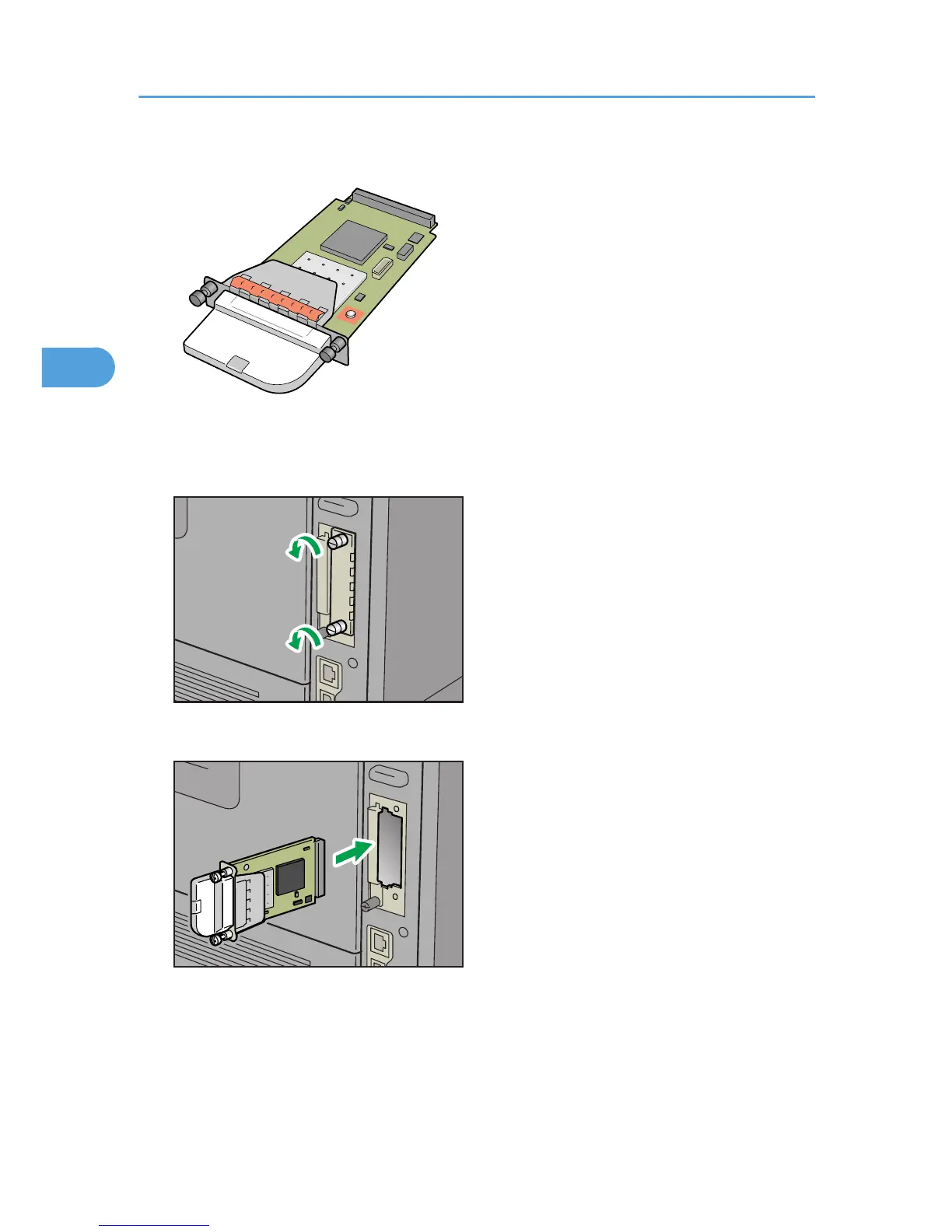

1. Check the contents of the package.
BFL301S
2. Turn off the power, and then unplug the power cord.
3. Remove
the two screws and remove the cover of the slot in which the Wireless LAN interface
board is installed.
CEC061
4. Fully insert the Wireless LAN interface board.
CEC065
5. Tighten the two screws to secure the interface board.
Check the Wireless LAN interface board is connected firmly to the interface board slot.
3. Installing Options
62
3
