BOOKLET MAKER INSTALLATION
[A]
Copier exit tray

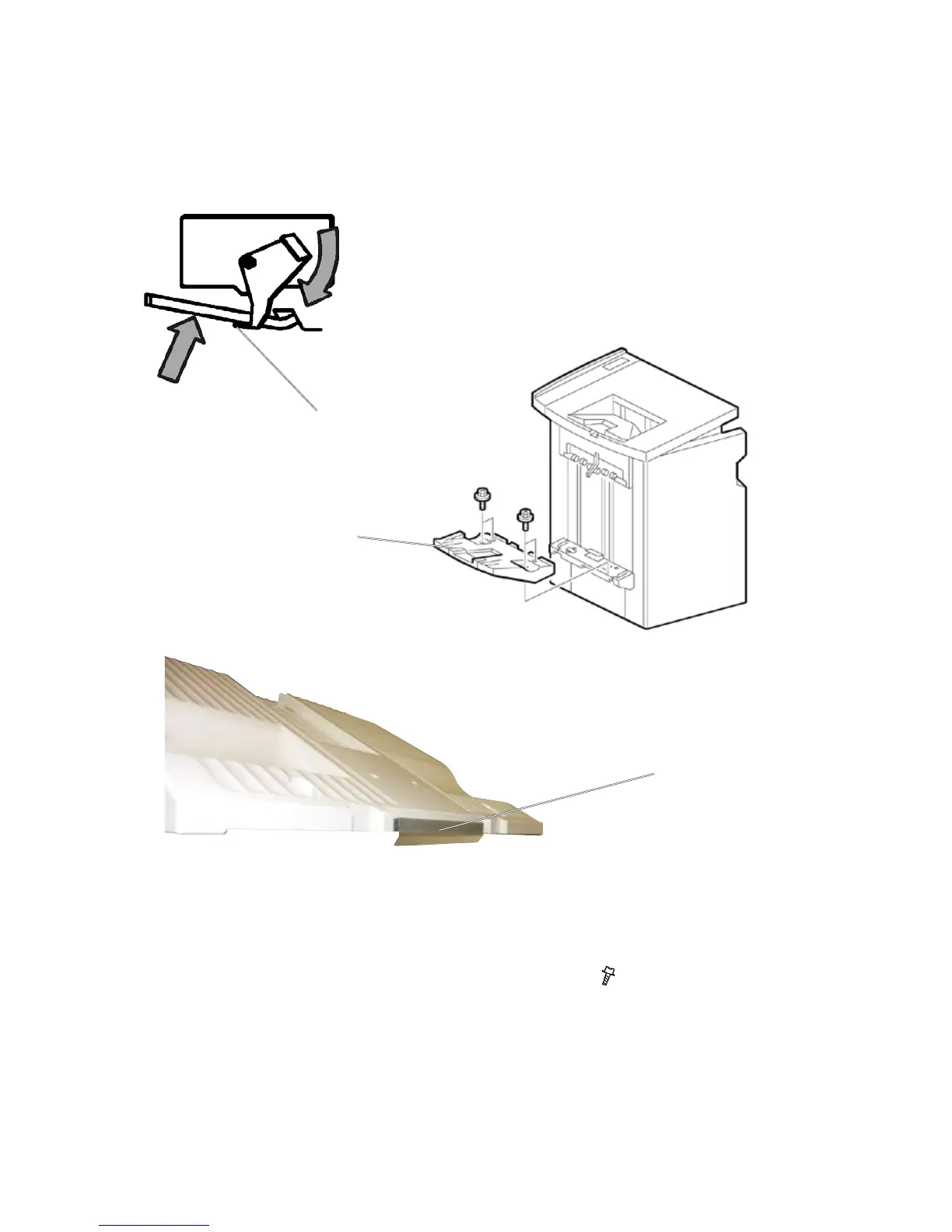

1. Make sure that the Exit paper arm is in the upper position [A].
2. Remove the nisher exit tray by removing screws [B] (
x 4).
3. Remove the plastic deector [C], on the nisher exit tray.
[B]
[C]
