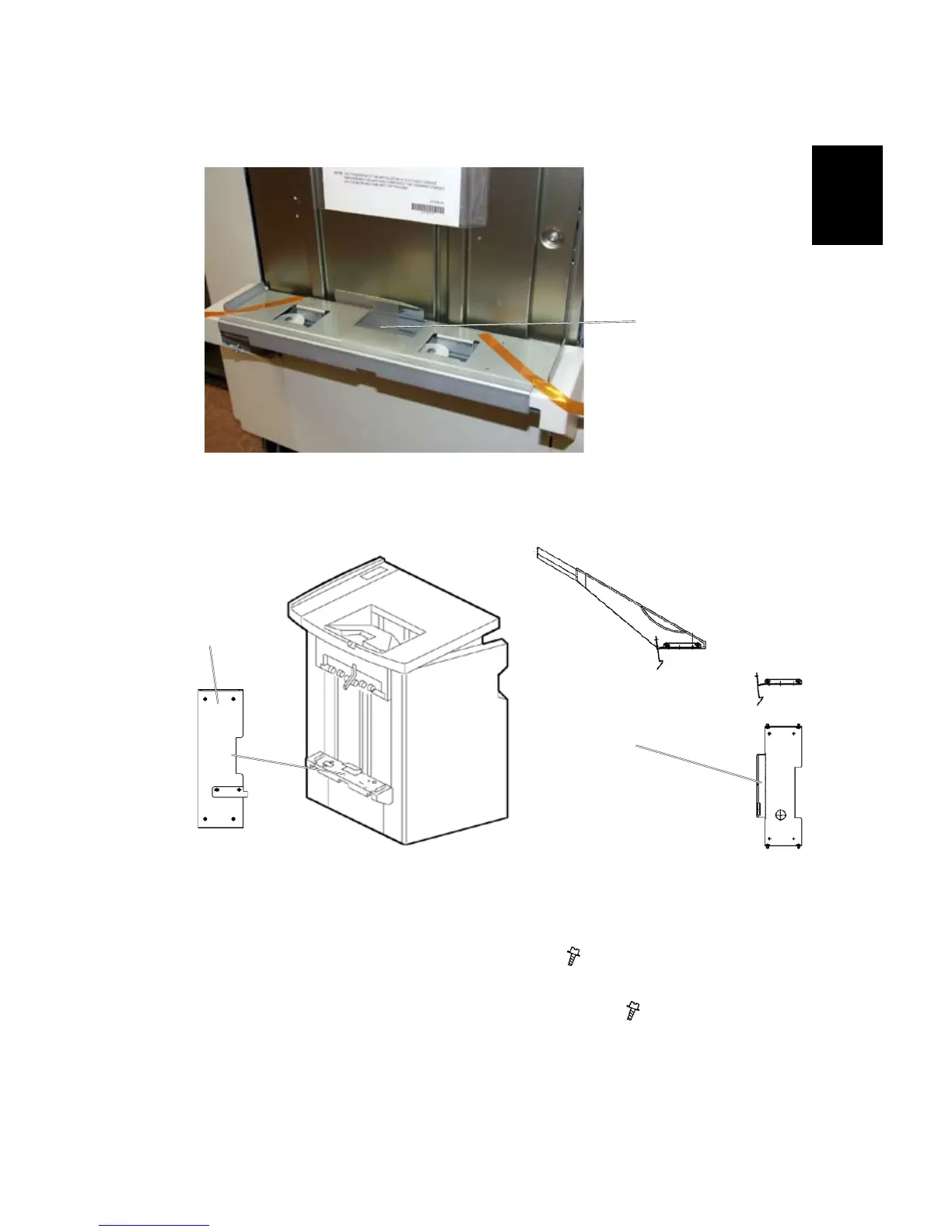

4. Remove the plastic deector [D] from the shift tray.
5. Install the Shift tray plate [E] on to the nisher (
x 4 counter screws from
installation kit)
6. Install the Exit tray plate [F] on to the nisher exit tray (
x 4 from installation
kit).
[E]
[F]
[D]
BOOKLET MAKER INSTALLATION
