1. Remove the two stapler heads ( 3.4.12 ).
2. Insert a Interlock cheater.
3. Enter the Service Program Mode.
4. Go to Paper Size Reset. Press OK.
5. The text READY will be shown on the LCD display. Press Run.
The text SIDE JOGGERS will be shown.
The side joggers moves in and out.
NOTE: If this fails, switch OFF and ON the main power switch and go to
step 1.
6. The text INSERT TOOL will be shown.

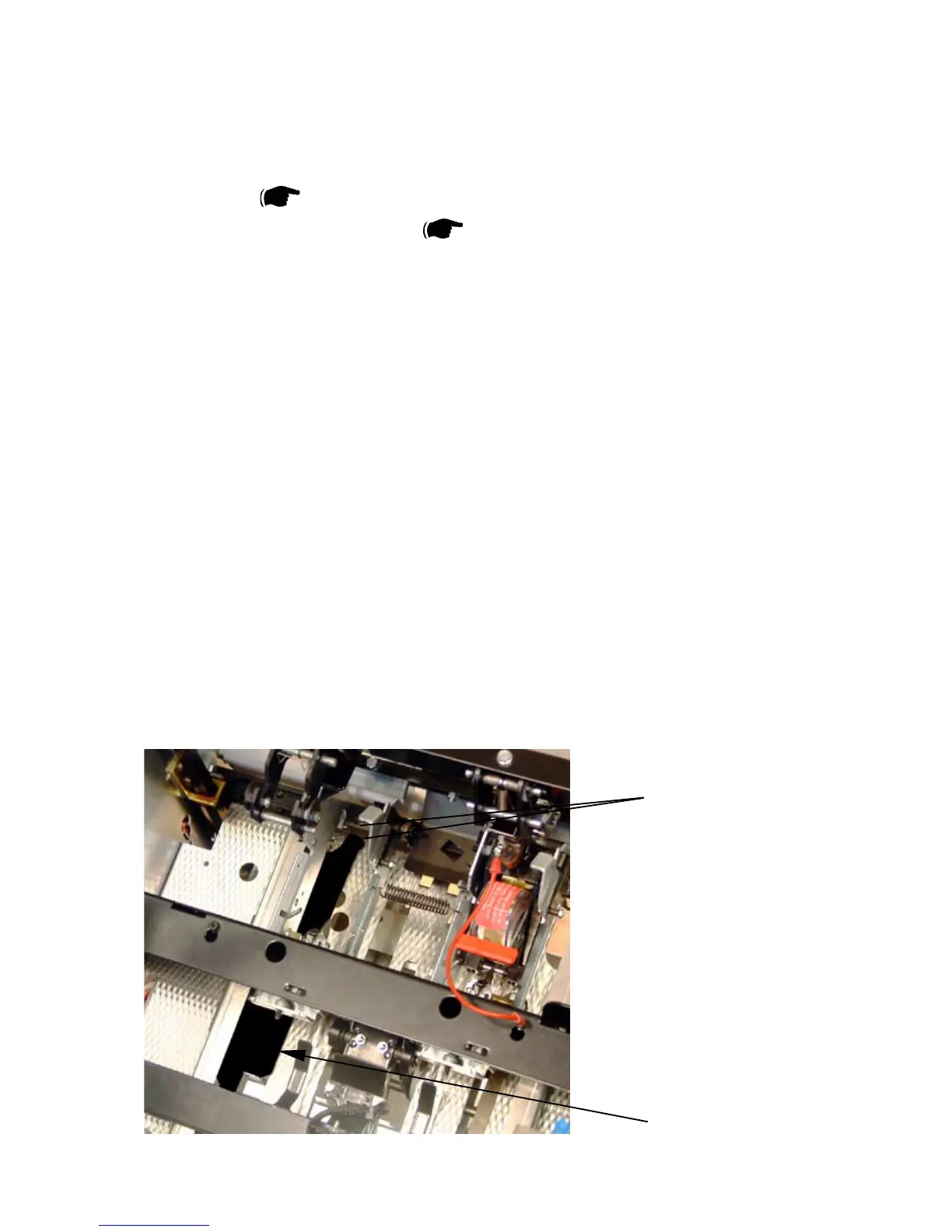

7. Insert the Multi tool [A], according to picture below.
Push the Multi tool gently up against the side guide to make sure it is in con-
tact.
8. Press OK.
The text FOLD POSITION will be shown on the LCD.
The stop gate moves the Multi tool upwards [B] so the top of the Multi tool
catches the clincher bar.
IMPORTANT: If this fails, the procedure must be done all over again!
The text REMOVE TOOL will be shown.
9. Remove the tool. Press OK.
[B]
[A]
Executing Paper Size Reset
The side guides and stop gate must be parallel and square before this procedure
is carried out ( 3.8.1, 3.8.2 ).
PAPER SIZE RESET
To Next Page
