Ricoh bk5010 - Page 29

1-15
Installation
04 October 2007

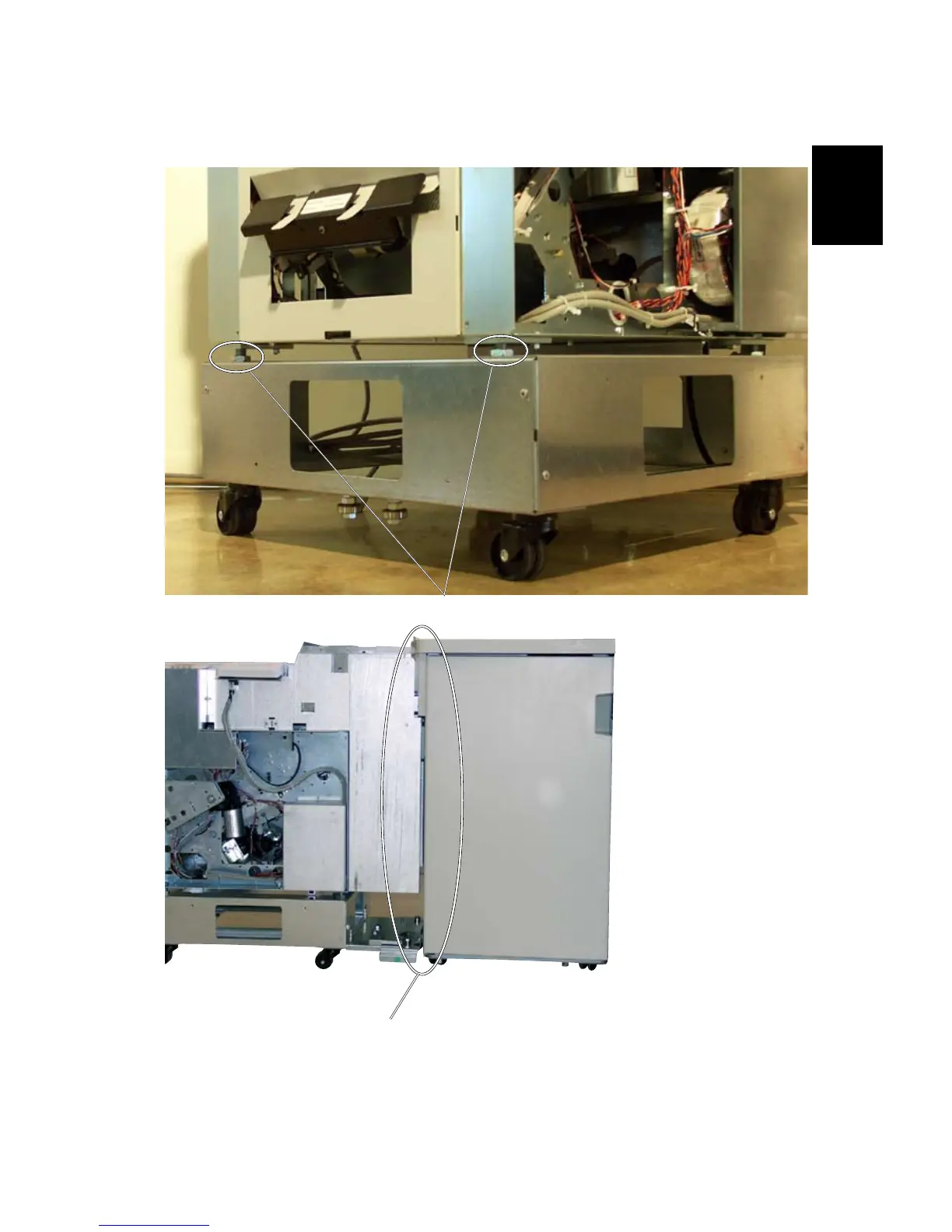

6. Turn both outfeed side adjustment nuts [D] until the gap [E] between the Book-
let maker and the Finisher is parallell ± 2mm.
NOTE: Turn both screws equal amount of turns.
[D]
[E]
Booklet Maker, outfeed view
BOOKLET MAKER INSTALLATION
