BOOKLET MAKER INSTALLATION

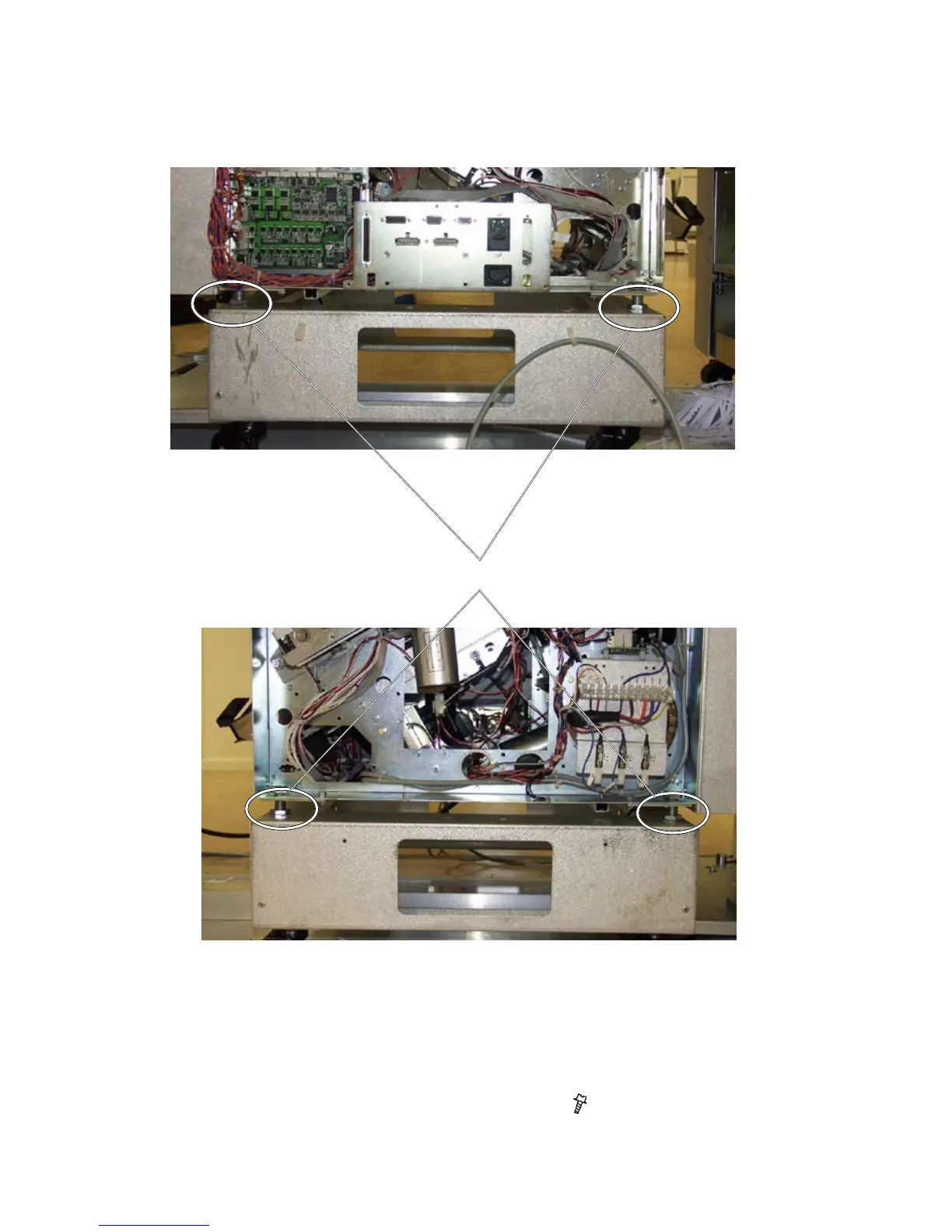

9. To adjust the height of the Booklet Maker, turn all four adjustment nuts [I].
One revolution equals 2 mm difference in height.
10. Undock the Booklet maker.
11. Reinstall the Booklet maker front and rear covers (
x 10).
[I]
Booklet Maker, rear view
Booklet Maker, front view
