Installation
04 October 2007
1. Install motor harness [A] ( x 2).
2. Install sensor harness [B] (
x 1).
3. Install fan harness [C] (
x 1).
[A][B] [C]

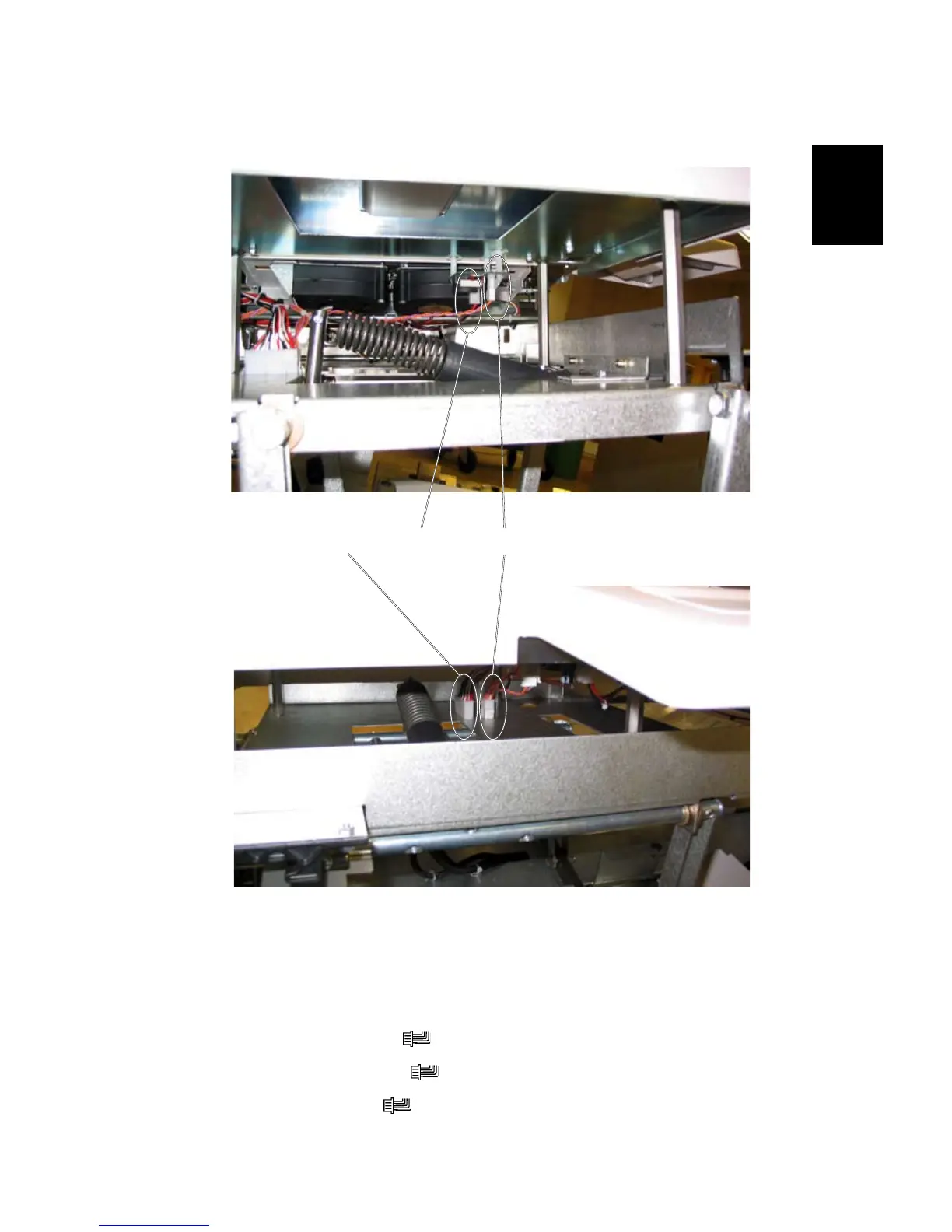

Installation of the Cover Feeder connectors
Cover Feeder, viewed from
Booklet Maker outfeed
Cover Feeder, viewed from
Booklet Maker front side
COVER FEEDER INSTALLATION
