Paper Feed Section
D096 4-38 SM
4.7.6 REGISTRATION ROLLER
1. PCU
2. Front cover
3. Right door
4. Rear cover
5. High-voltage power supply
6. Registration clutch

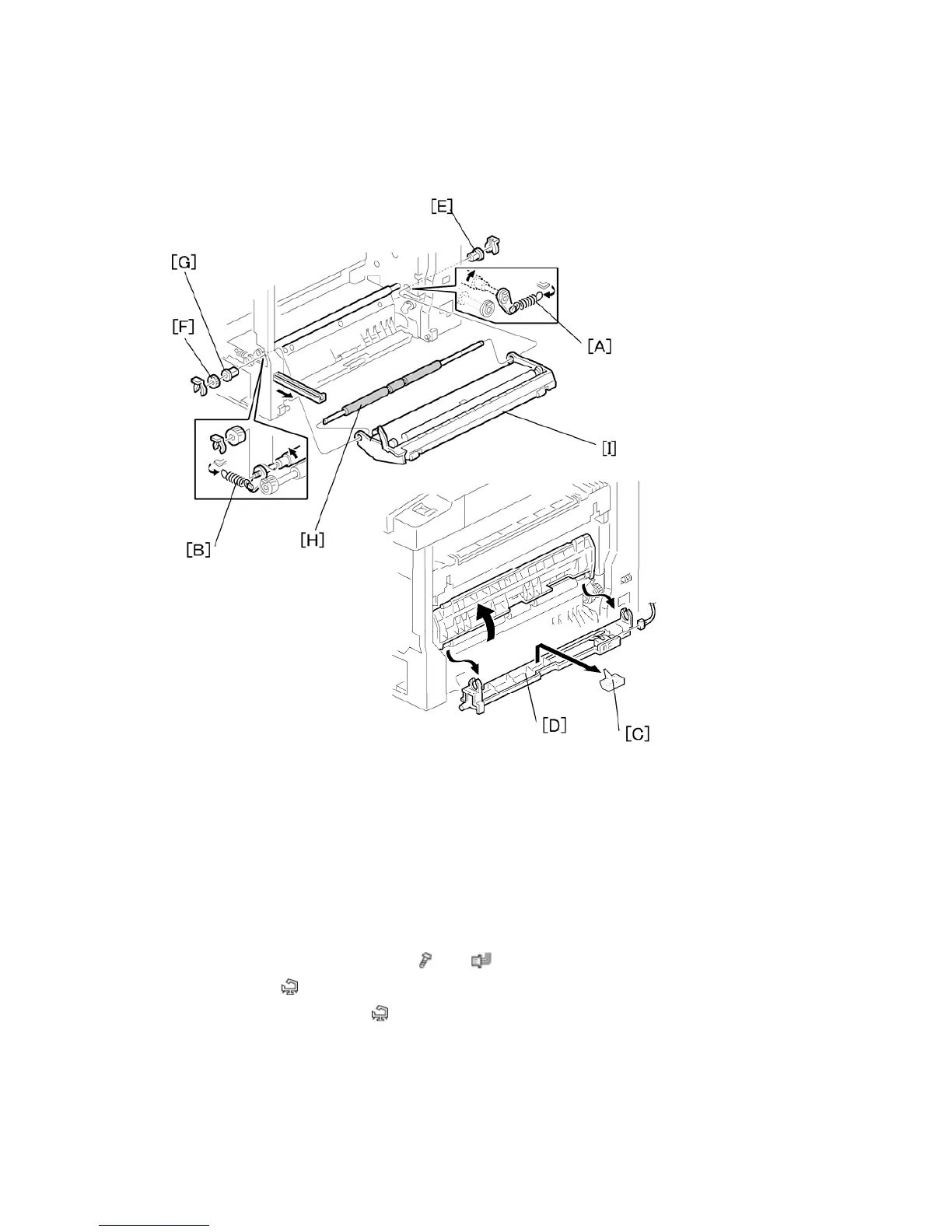

7. Unhook the springs [A] and [B] at the rear and front sides.
8. Guide support [C] and guide [D] (
x 1, x 1)
9. Bushing [E] (
x 1)
10. Gear [F] and bushing [G] (
x 1)
11. Registration roller [H] with the image transfer unit [I]
