Ricoh D096 - 4.5.5 POLYGONAL MIRROR MOTOR

Laser Unit
SM 4-23 D096
Replacement
and
Adjustment
4.5.5 POLYGONAL MIRROR MOTOR

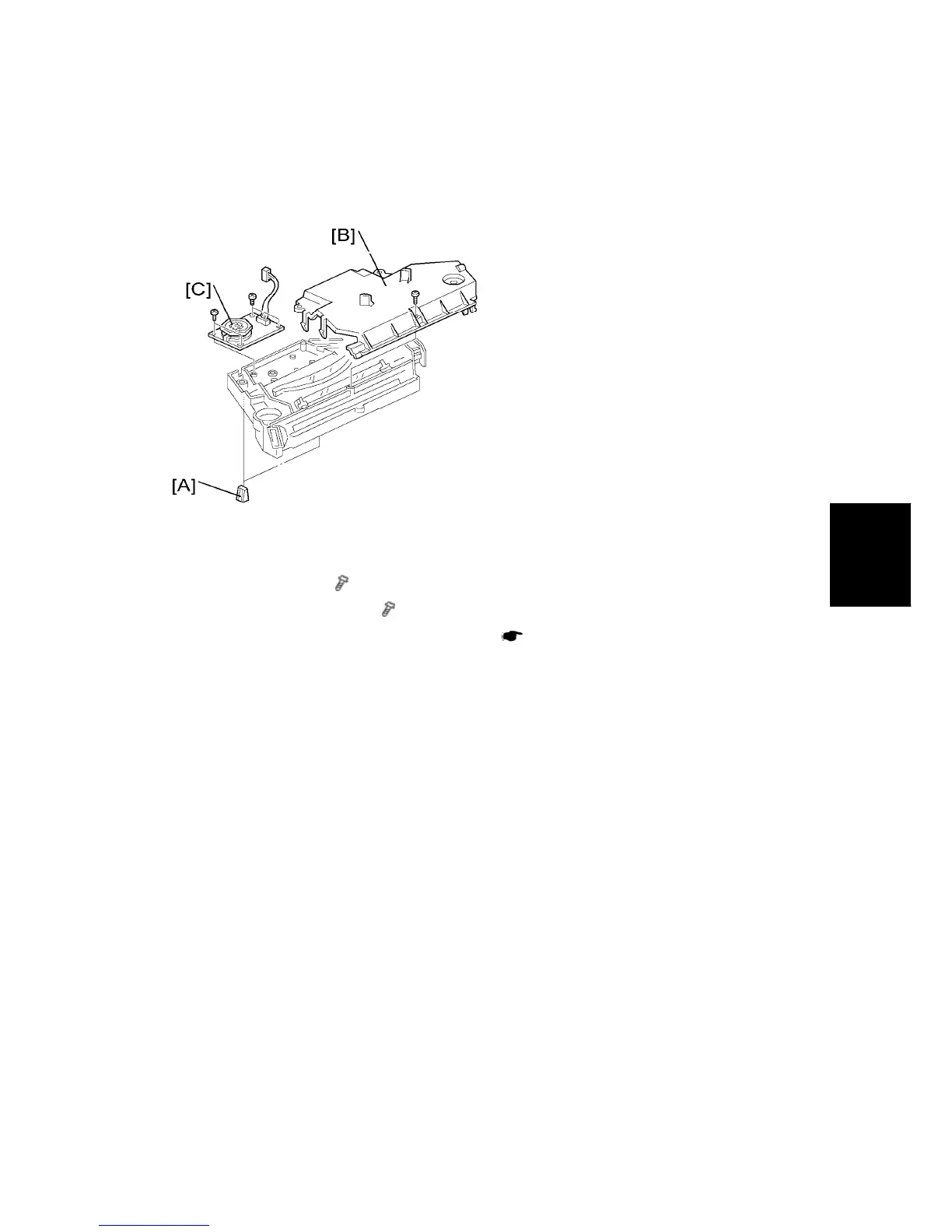

1. Laser unit
2. Two rubber bushings [A]
3. Laser unit cover [B] (
x 1)
4. Polygonal mirror motor [C] (
x 4)
5. After reassembling, adjust the image quality (
p.4-58 "Copy Adjustments
Printing/Scanning").
