Paper Feed Section
SM 4-39 D096
Replacement
and
Adjustment

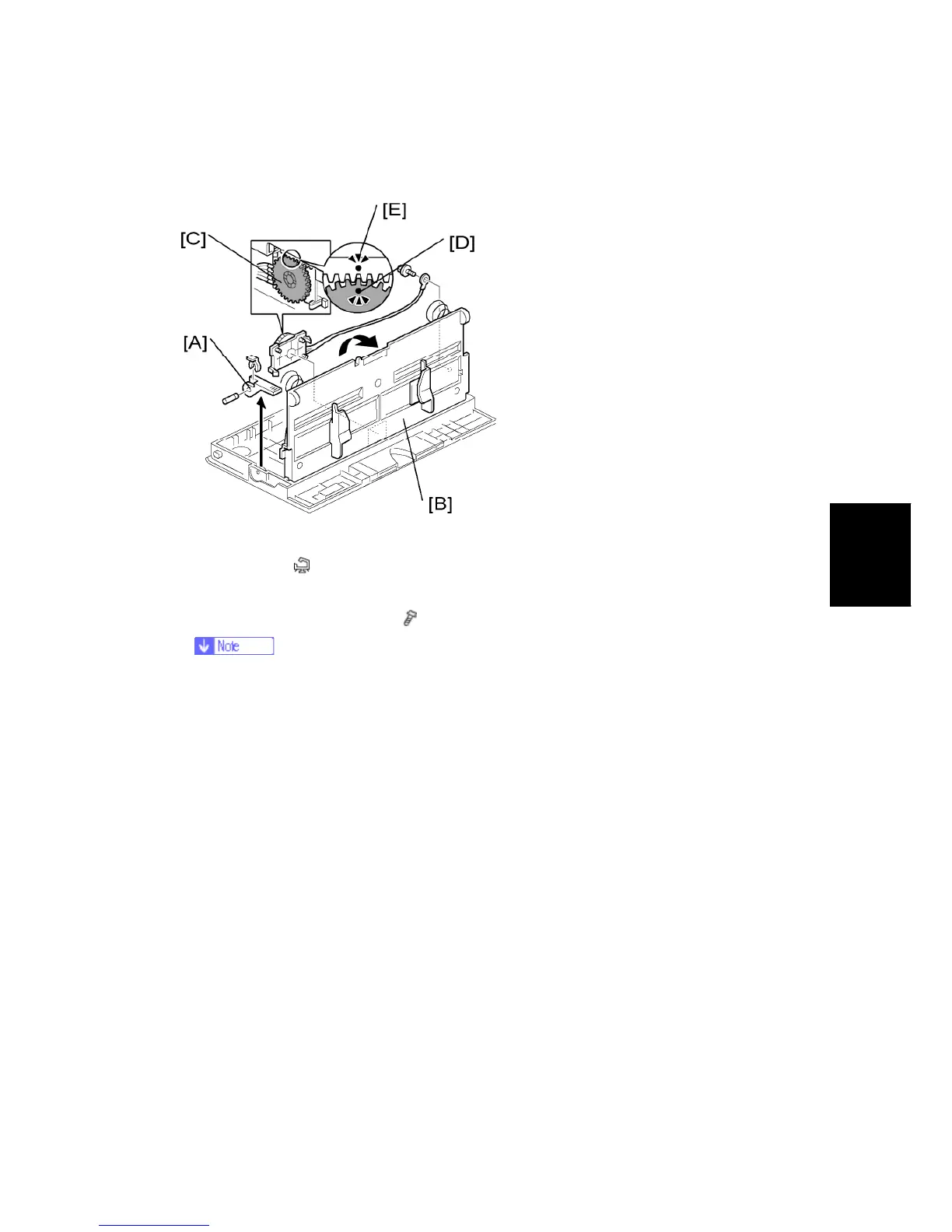

4.7.7 BY-PASS PAPER SIZE SWITCH
1. By-pass tray
2. Tray lever [A] (
x 1, 1 pin)
3. Lift the upper tray [B]
4. By-pass paper size switch [C] (
x 1)
When reinstalling the switch: Move the paper guides to their middle position
(about halfway between fully open and fully closed), and install the round gear
so that the hole in the gear [D] aligns with the peg [E] on the sliding gear.
