Scanner Unit
D096 4-10 SM
4.4 SCANNER UNIT
4.4.1 EXPOSURE GLASS/DF EXPOSURE GLASS

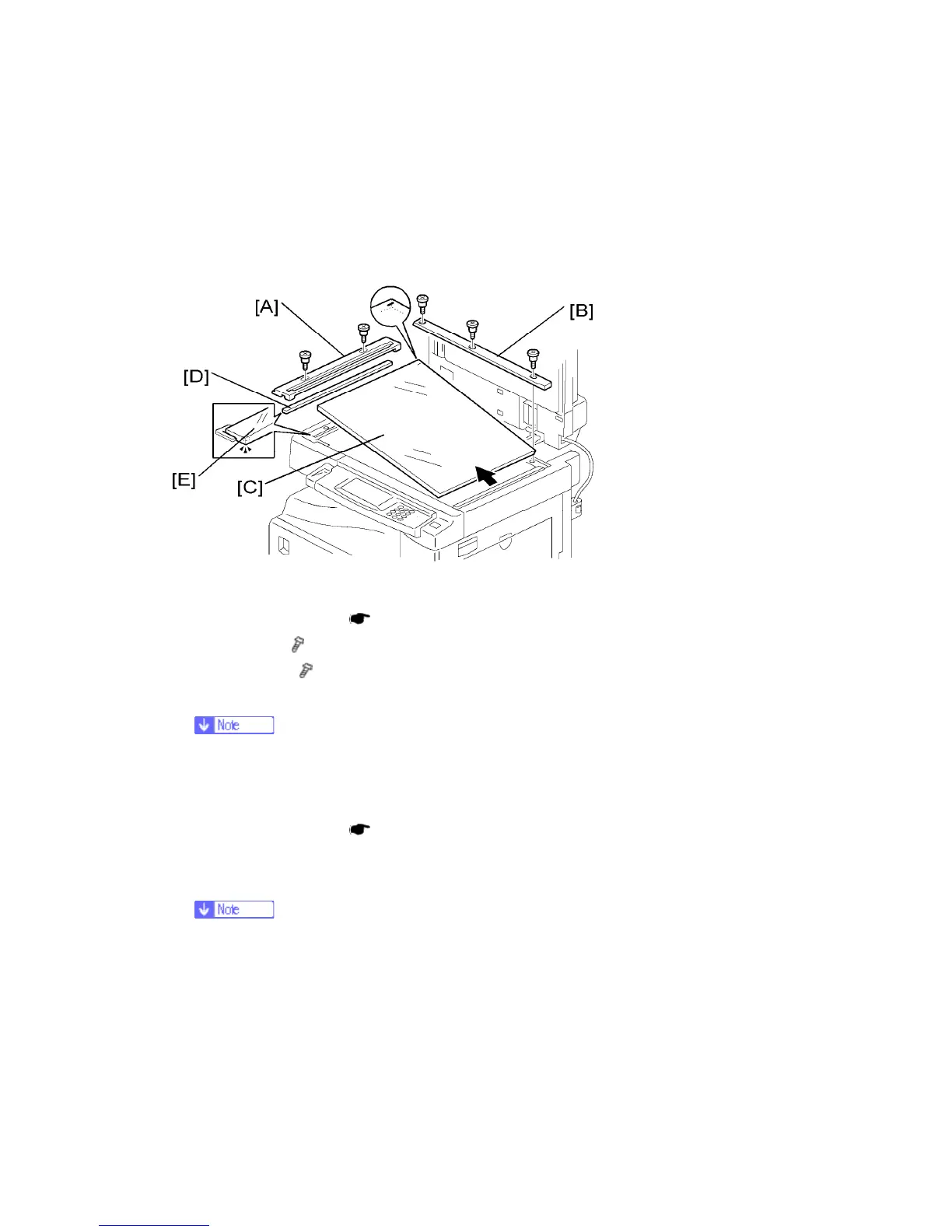

- Exposure Glass -
1. Front upper left cover (
p.4-5 "Upper Covers")
2. Left scale [A] (
x 2)
3. Rear scale [B] (
x 3)
4. Exposure glass [C]
 Make sure that the mark is at the rear left corner, and that the left edge is
aligned to the support on the frame when you reinstall the exposure glass.
- DF Exposure Glass -
1. Front upper left cover (
p.4-5 "Upper Covers")
2. Left scale [A]
3. DF exposure glass [D]
 Make sure that the mark [E] is on the bottom at the front end when reinstall the
exposure glass.
