Ricoh D096 - 4.10.3 BICU (BASE-ENGINE IMAGE CONTROL UNIT); 4.10.4 MAIN MOTOR

Other Replacements
SM 4-53 D096
Replacement
and
Adjustment

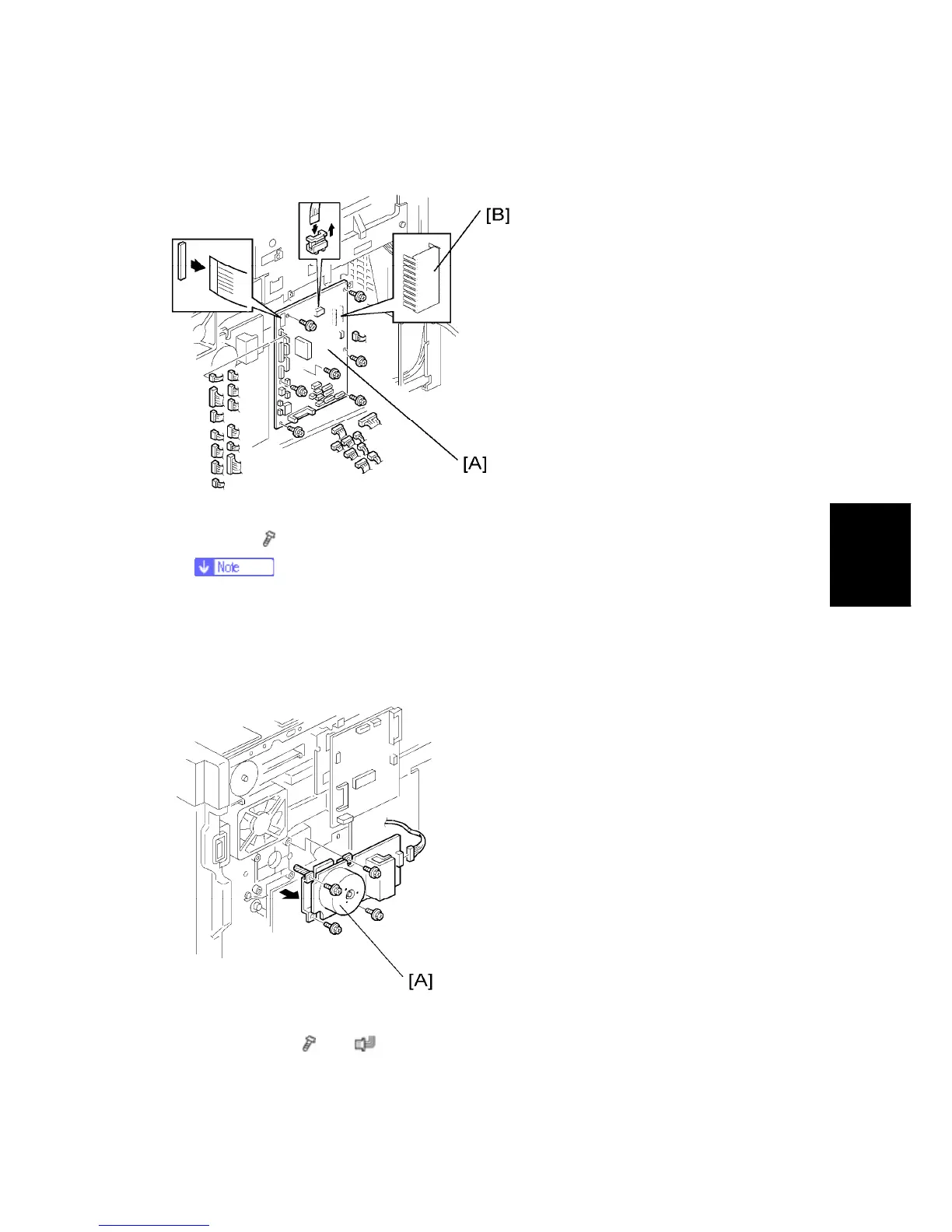

4.10.3 BICU (BASE-ENGINE IMAGE CONTROL UNIT)
1. Rear cover
2. BICU [A] (
x 7, all connectors, 2 flat cables)
 Remove the NVRAM [B] from the old BICU and install it on the new BICU
when you replace the BICU. The NVRAM keeps machine-specific data.
4.10.4 MAIN MOTOR
1. Rear cover
2. Main motor [A] (
x 4, x 1)
