Image T
ransfer
SM 4-43
D096
Repla
cement
and
Adjustment
4.8 IMAGE
TRANSFER
4.8.1
IMAGE TRANSFER ROLLER
Do not touch the transfer ro
ller surface with bare hands
1.
Open the right door
.
2.

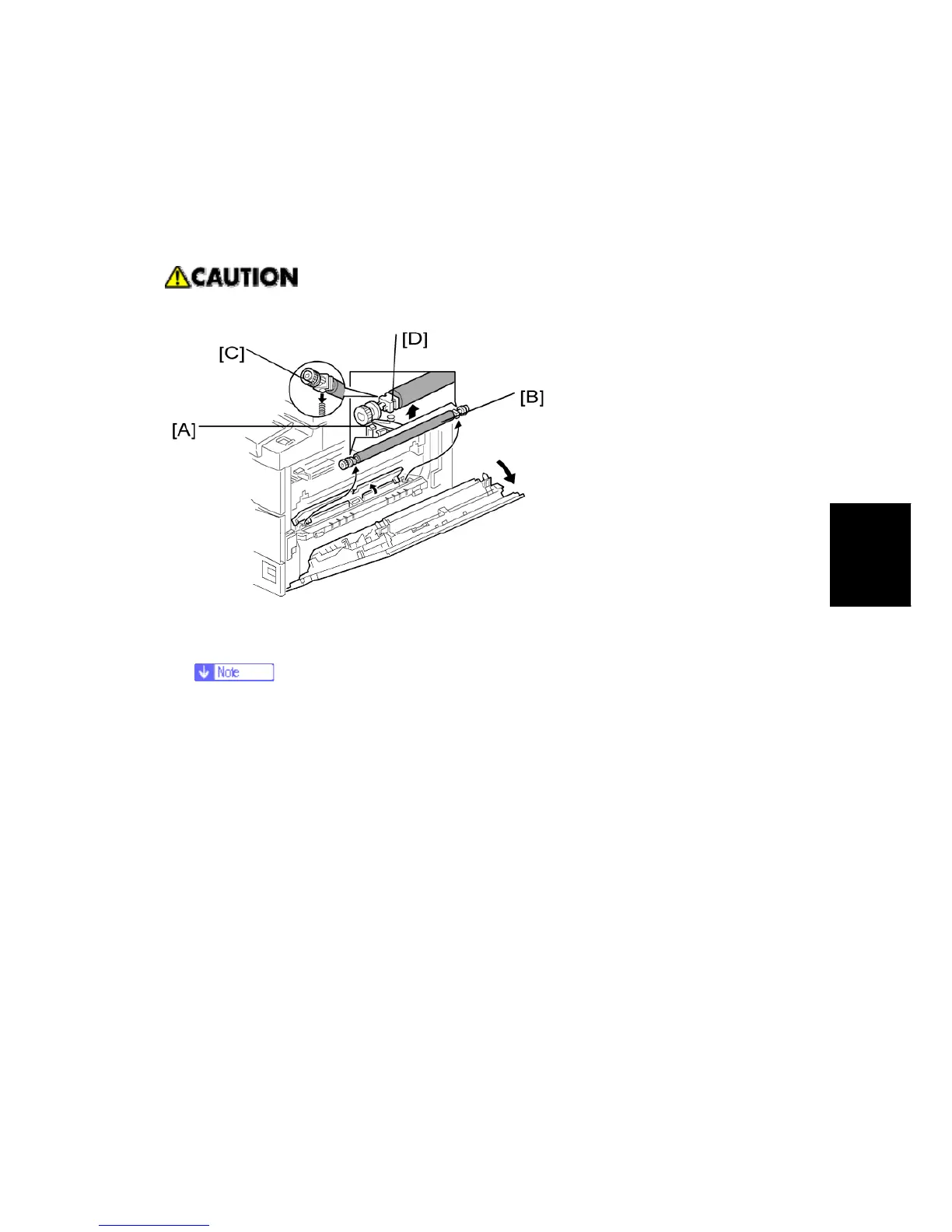

Lift the plastic holders [A] wi
th the image transfer roller [B].
Leave the springs under the holders. Ma
ke sure that the pegs [C] on the
holders [D] engage with the springs when you reassemble.
104
106
Table of Contents
Table of Contents
13
Product Information
19
Read this First
21
Safety Notices
21
Important Safety Notices
21
Handling Toner
22
Laser Safety
22
Symbols and Abbreviations
23
1 Product Information
25
Specifications
27
Machine Configuration
28
Guidance for those Who Are Familiar with Predecessor Products
29
Overview
30
Component Layout
30
Paper Path
32
Drive Layout
33
2 Installation
35
Installation Requirements
37
Environment
37
Machine Level
38
Minimum Space Requirements
39
Power Requirements
39
Copier Installation
40
Accessory Check
40
Power Sockets for Peripherals
40
Installation Procedure
41
Platen Cover Installation
45
Accessory Check
45
Installation Procedure
45
Adf Installation
46
Accessory Check
46
Installation Procedure
47
Anti-Condensation Heater Installation
50
Tray Heater
51
Sm D096
51
Accessibility Handle Installation
53
3 Preventive Maintenance
55
Pm Tables
57
How to Reset the Pm Counter
58
4 Replacement and Adjustment
61
General Cautions
63
Pcu (Photoconductor Unit)
63
Replacement and Adjustment 4
63
Scanner Unit
63
Transfer Roller
63
Fusing Unit
64
Laser Unit
64
Paper Feed
64
Special Tools and Lubricants
65
Exterior Covers & Operation Panel
66
Copy Tray
66
Rear Cover
66
Left Cover
67
Upper Covers
67
Front Cover
68
Front Right Cover
68
Right Door
69
Right Rear Cover
69
By-Pass Tray
70
Platen Cover Sensor
71
Scanner Unit
72
Exposure Glass/Df Exposure Glass
72
Lens Block
73
Lamp Stabilizer Board and Exposure Lamp
74
Scanner Motor
75
Scanner Home Position Sensor
76
Adjusting Scanner Positions
77
Laser Unit
81
Location of Caution Decal
81
Toner Shield Glass
82
Laser Unit
83
Ld Unit
84
Polygonal Mirror Motor
85
Laser Unit Alignment Adjustment
86
Pcu Section
88
Pcu
88
Toner Supply Motor
89
Pick-Off Pawls and Toner Density Sensor
90
Opc Drum
91
Charge Roller and Cleaning Brush
92
Cleaning Blade
93
Developer
94
After Replacement or Adjustment
95
Paper Feed Section
96
Paper Feed Roller
96
Friction Pad
97
Paper End Sensor
97
Exit Sensor
98
By-Pass Feed Roller and Paper End Sensor
99
Registration Roller
100
By-Pass Paper Size Switch
101
Registration Clutch
102
Registration Sensor
102
Paper Feed Clutch and By-Pass Feed Clutch
103
Paper Size Switch
104
Image Transfer
105
Image Transfer Roller
105
Image Density Sensor
106
Fusing
107
Fusing Unit
107
Thermistor
107
Fusing Lamps
108
Sm D096
109
Hot Roller
109
Hot Roller Stripper Pawls
109
Thermostat
110
Pressure Roller and Bushings
111
Nip Band Width Adjustment
112
Cleaning Roller
113
Other Replacements
114
High-Voltage Power Supply Board
114
Quenching Lamp
114
Bicu (Base-Engine Image Control Unit)
115
Main Motor
115
Left Exhaust Fan
116
Psu (Power Supply Unit)
116
Gearbox
117
Copy Adjustments Printing/Scanning
120
Printing
121
Scanning
122
Adf Image Adjustment
125
Troubleshooting
156
Energy Saving
163
Service Tables
127
How to Enter the Sp Mode
129
Service Program Mode
129
Sp Tables
129
Adjusting Registration and Magnification
131
Using Sp Modes
131
ID Sensor Error Analysis (Sp 2221)
132
Memory Clear
133
Input Check (Sp 5803)
135
Output Check (Sp 5804)
140
Serial Number Input (Sp 5811)
142
Nvram Data Upload/Download (Sp 5824/5825)
143
Firmware Update Procedure
145
Test Pattern Print (Sp 5902 1)
147
Paper Jam Counters (Sp 7504)
149
Jam History Codes
150
Original Jam History Display (Sp 7508)
150
Smc Print (Sp 5990)
150
Adf Aps Sensor Output Display (Sp 6901)
151
Troubleshooting 6
153
Service Call Conditions 6
155
Electrical Component Defects 6
156
Sensors
156
Switches
158
Blown Fuse Conditions 6
159
Bicu
160
Led Display 6
160
Energy Saving 7
161
Energy Save 7
163
Energy Saver Modes
163
Recommendation
164
Return to Stand-By Mode
164
Timer Settings
164
Energy Save Effectiveness
165
D096 Appendices
169
1 Appendix: Specifications
171
General Specifications
173
Supported Paper Sizes
178
North America, Europe, Asia, Taiwan
178
Original Size Detection
178
China, Korea
180
Main Frame
182
Paper Feed and Exit
182
Optional Equipment
185
Adf
185
2 Appendix: Preventive Maintenance
189
Pm Tables
189
Troubleshooting Guide
193
3 Appendix: Troubleshooting Guide
195
Service Call Conditions
195
Sc Code Descriptions
196
4 Appendix: Sp Mode Tables
207
Sp Mode Tables
207
Sp1-XXX (Feed)
209
Sp2-XXX (Drum)
213
Sp4-XXX (Scanner)
221
Sp5-XXX (Mode)
229
Sp6-XXX (Peripherals)
233
Sp7-XXX (Data Log)
235
Sp8-XXX (History)
240
Document Feeder Df2000 B813
245
1 Overall Information
247
Mechanical Component Layout
247
Electrical Component Layout
248
Drive Layout
249
2 Detailed Section Descriptions
250
Adf B813 and Ardf B814
250
Original Size Detection
251
Pick-Up and Separation
253
Original Transport and Exit Mechanism
254
Stamp
255
Timing Charts
256
A3, Stamp Mode
257
Jam Detection
258
Overall Electrical Circuit
259
Free Run
260
3 Replacement and Adjustment
261
Exterior Covers
261
Front Cover
261
Original Entrance Guide
261
Original Table
261
Rear Cover
261
Df Feed Cover
262
Feed Unit
262
Separation Roller
262
Feed Belt
263
Pick-Up Roller
263
Original Sensors (Width, Length, Trailing Edge)
264
Original Set Sensor
265
Transport Motor
265
Feed Cover Open Sensor/ Feed Clutch/Rom/Df Drive Board20 3.10 Registration Sensor
266
Pick-Up Solenoid
267
Registration Sensor
267
Stamp Solenoid
268
