Ricoh D096 - 4.3.7 RIGHT REAR COVER; 4.3.8 RIGHT DOOR

Exterior Covers & Operation Panel
SM 4-7 D096
Replacement
and
Adjustment
4.3.7 RIGHT REAR COVER

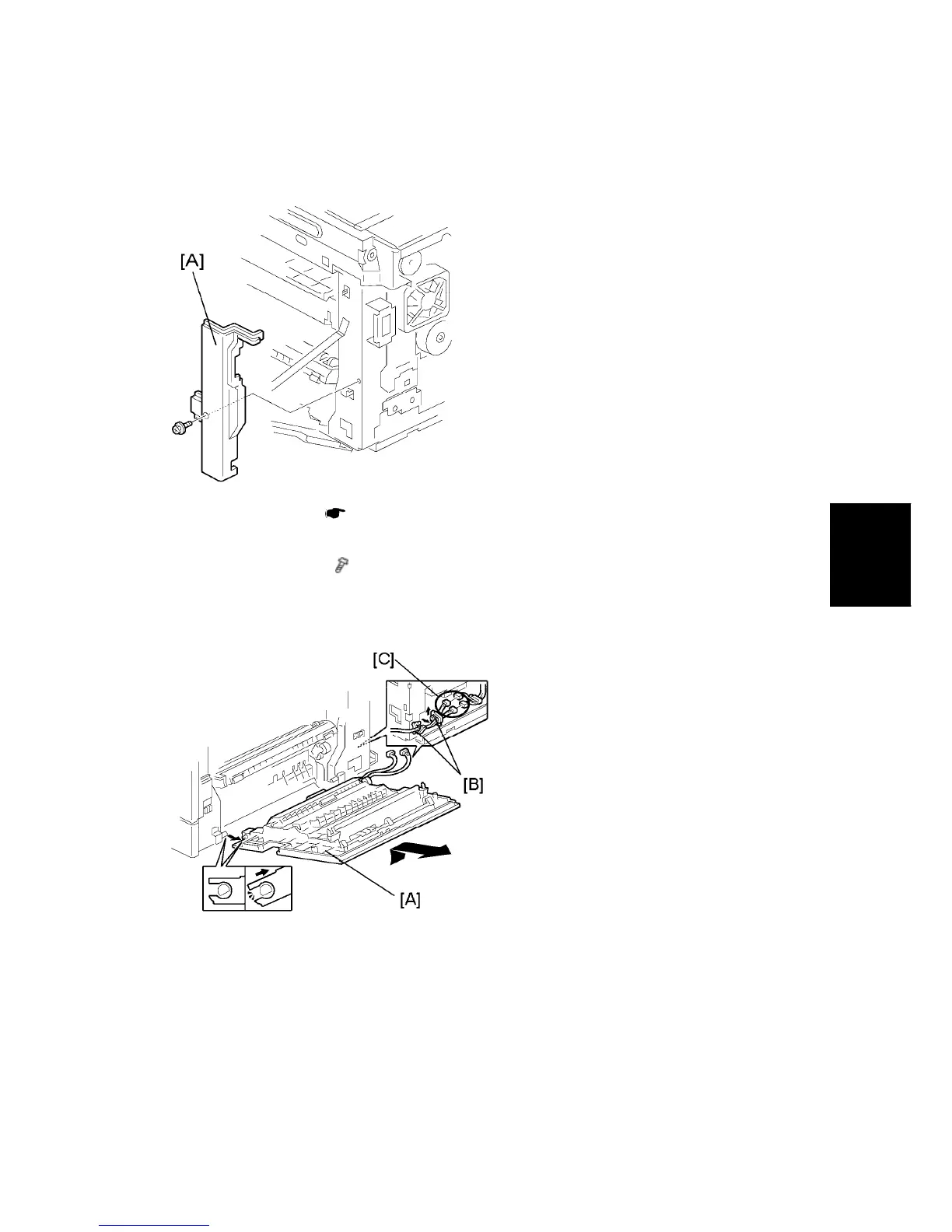

1. Right upper cover (
p.4-5 "Upper Covers")
2. Open the right door.
3. Right rear cover [A] (
x 1)
4.3.8 RIGHT DOOR
1. Right rear cover (see above)
2. Open the right door [A].
3. Open the clamps [B] and disconnect the two connectors [C].
4. Right door
