Ricoh D096 - 4.3.3 UPPER COVERS; 4.3.4 LEFT COVER

Exterior Covers & Operation Panel
SM 4-5 D096
Replacement
and
Adjustment

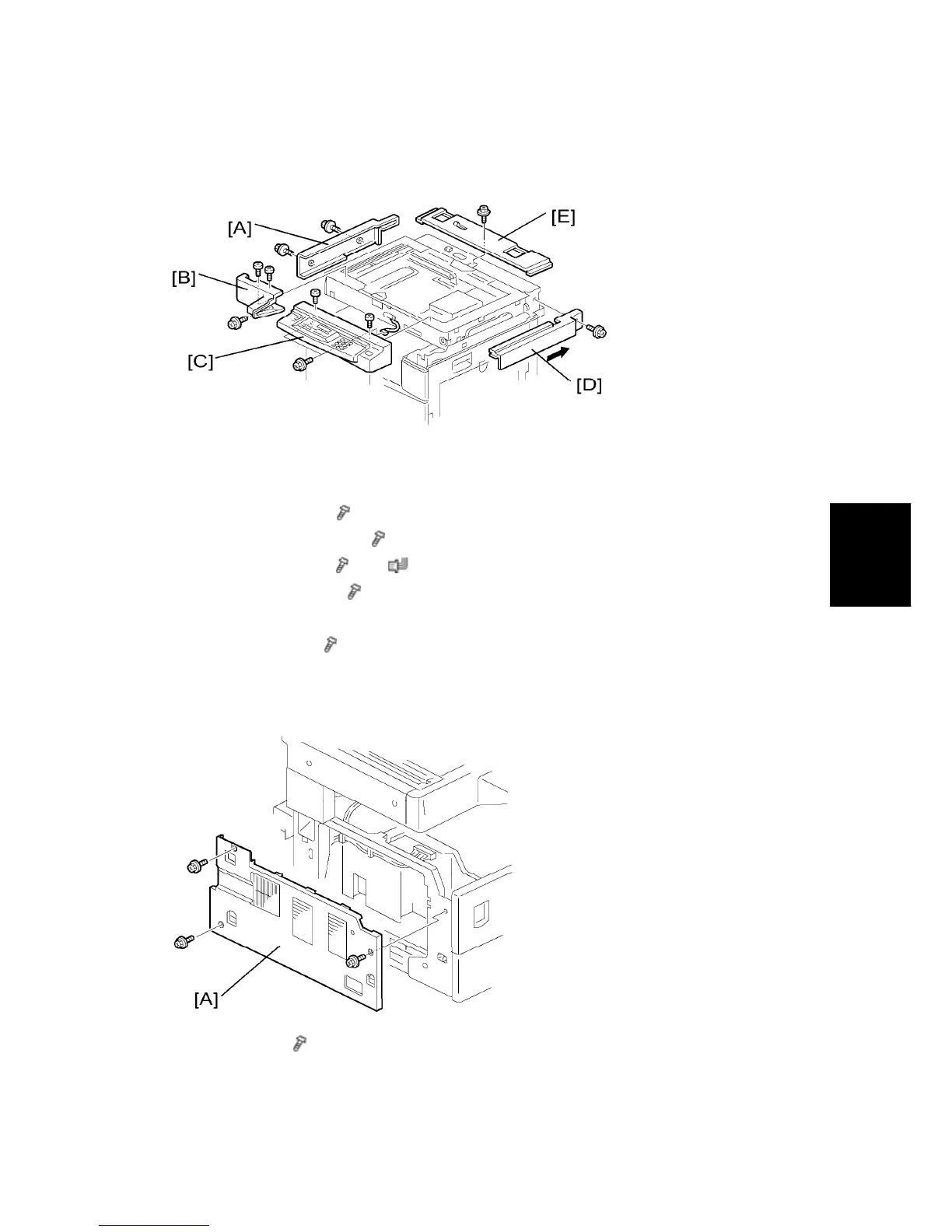

4.3.3 UPPER COVERS
1. Platen Cover or ADF (if installed)
2. Rear cover
3. Left upper cover [A] ( x 2)
4. Front upper left cover [B] (
x 3)
5. Operation panel [C] (
x 4, x 1)
6. Right upper cover [D] (
x 1, 3 hooks)
7. Push the cover to the rear side to release the hooks.
8. Top rear cover [E] (
x 1)
4.3.4 LEFT COVER
1. Left cover [A] ( x 3)
