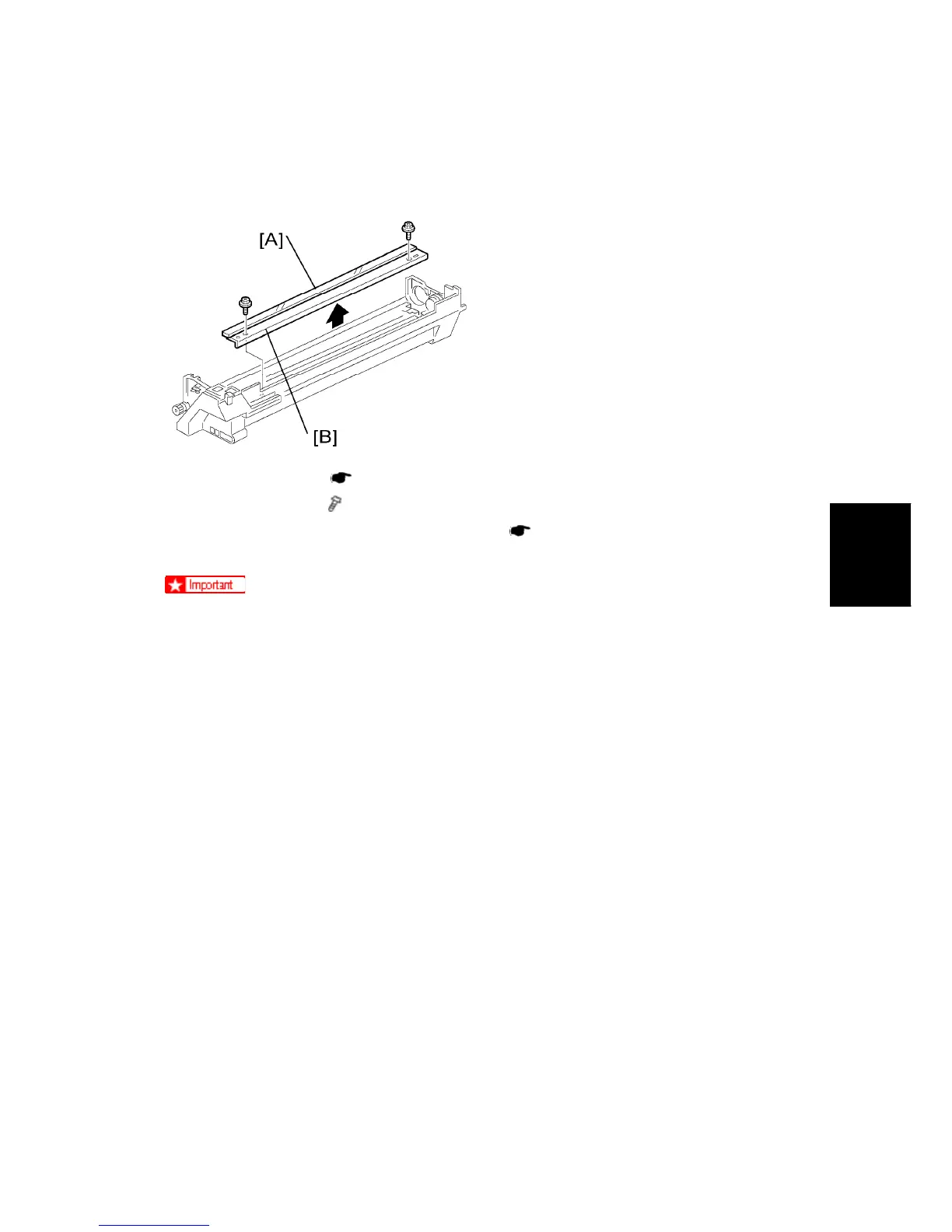

4.6.6 CLEANING BLADE
1. Drum charge roller (
p.4-30 "Charge Roller and Cleaning Brush")
2. Cleaning blade [B] (
x 2)
3. When reassembling, adjust the image quality (
p.4-33 "After Replacement or
Adjustment").
Apply toner to the edge of the new cleaning blade when you replace the cleaning
blade. This prevents possible damage to the OPC drum and blade.
After installing the cleaning blade, remove some of the toner from the old blade
with your finger.
Apply the toner to the edge [A] of the new cleaning blade. Make sure to apply the
toner evenly along full length of the new cleaning blade.
