Paper Feed Section
SM 4-37 D096
Replacement
and
Adjustment

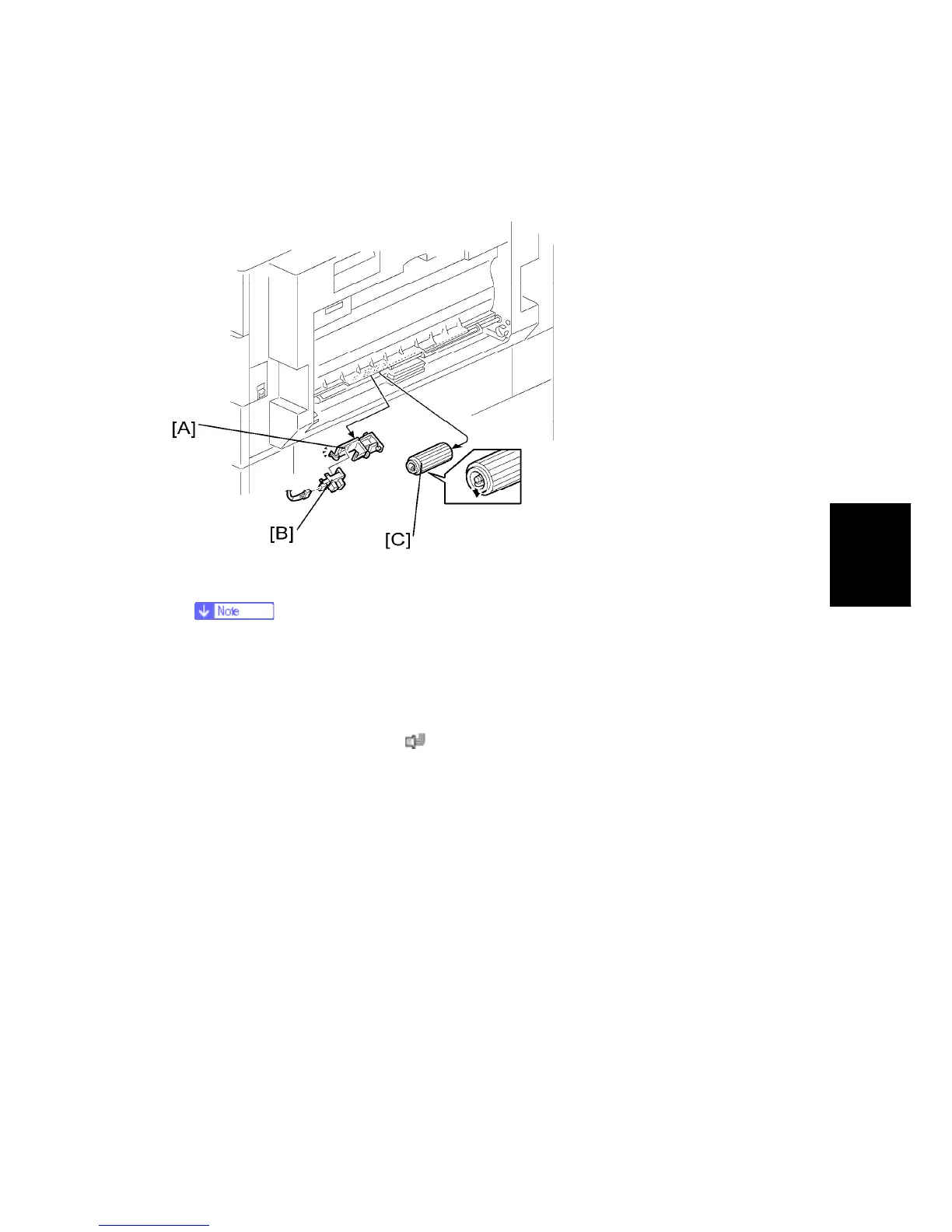

4.7.5 BY-PASS FEED ROLLER AND PAPER END SENSOR
1. By-pass tray
If you have a support to keep the by-pass tray within the reach of the
connector cable, you do not need to disconnect the connector. When you do
so, use caution not to place too much load on the cable.
2. Sensor holder [A]
3. By-pass paper end sensor [B] (
x 1)
4. By-pass feed roller [C]
