Laser Unit
SM 4-21 D096
Replacement
and
Adjustment
4.5.3 LASER UNIT
1. Toner shield glass.
2. Copy tray
3. Pull out the (upper) paper tray.
4. Front cover

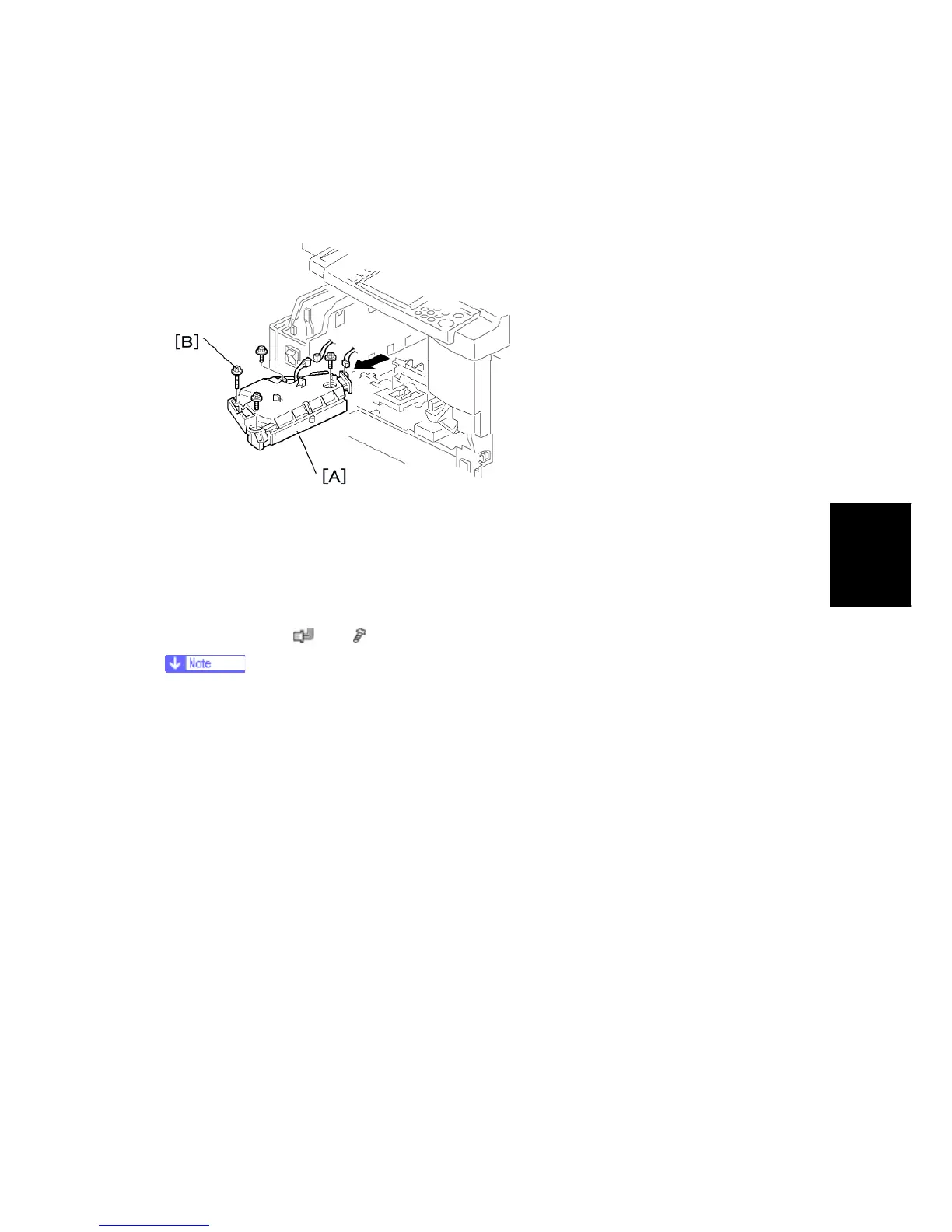

5. Laser unit [A] (
x 2, x 4)
The screw at the left front position [B] is longer than the other three.
