Copy Adjustments Printing/Scanning
SM 4-63 D096
Replacement
and
Adjustment

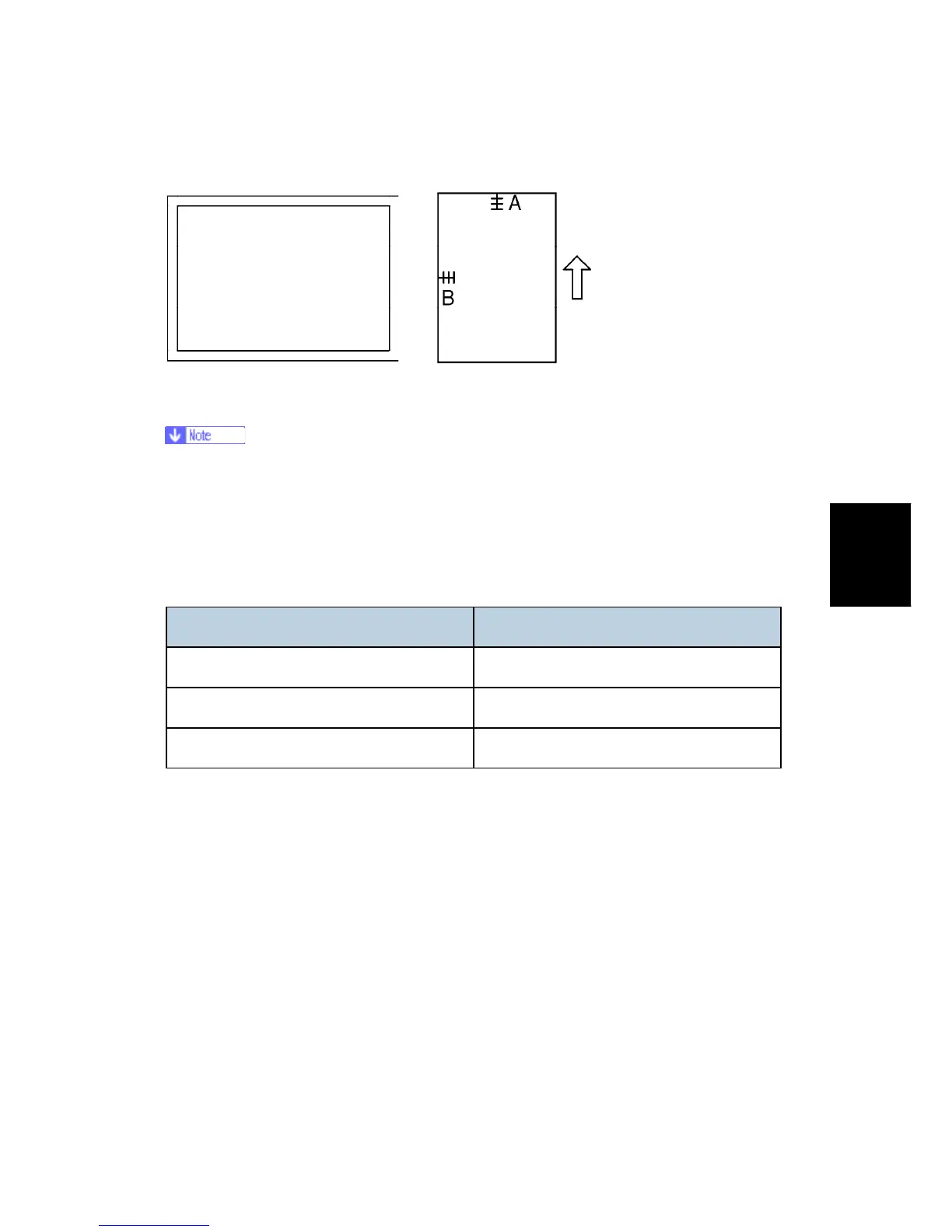

4.11.3 ADF IMAGE ADJUSTMENT
A: Leading edge registration
B: Side-to-side registration
Make a temporary test chart as shown above, using A3/11" x 17" paper.
1. Place the temporary test chart on the ADF and make a copy from one of the feed
stations.
2. Check the registrations, and adjust as necessary with the appropriate SP modes, as
follows.
SP mode
Side-to-side registration SP 6006 1
Leading edge registration SP 6006 2
Blank margin for the trailing edge SP 6006 3
