Ricoh D096 - 2.2.3 INSTALLATION PROCEDURE

Copier Installation
SM 2-5 D096
Installation

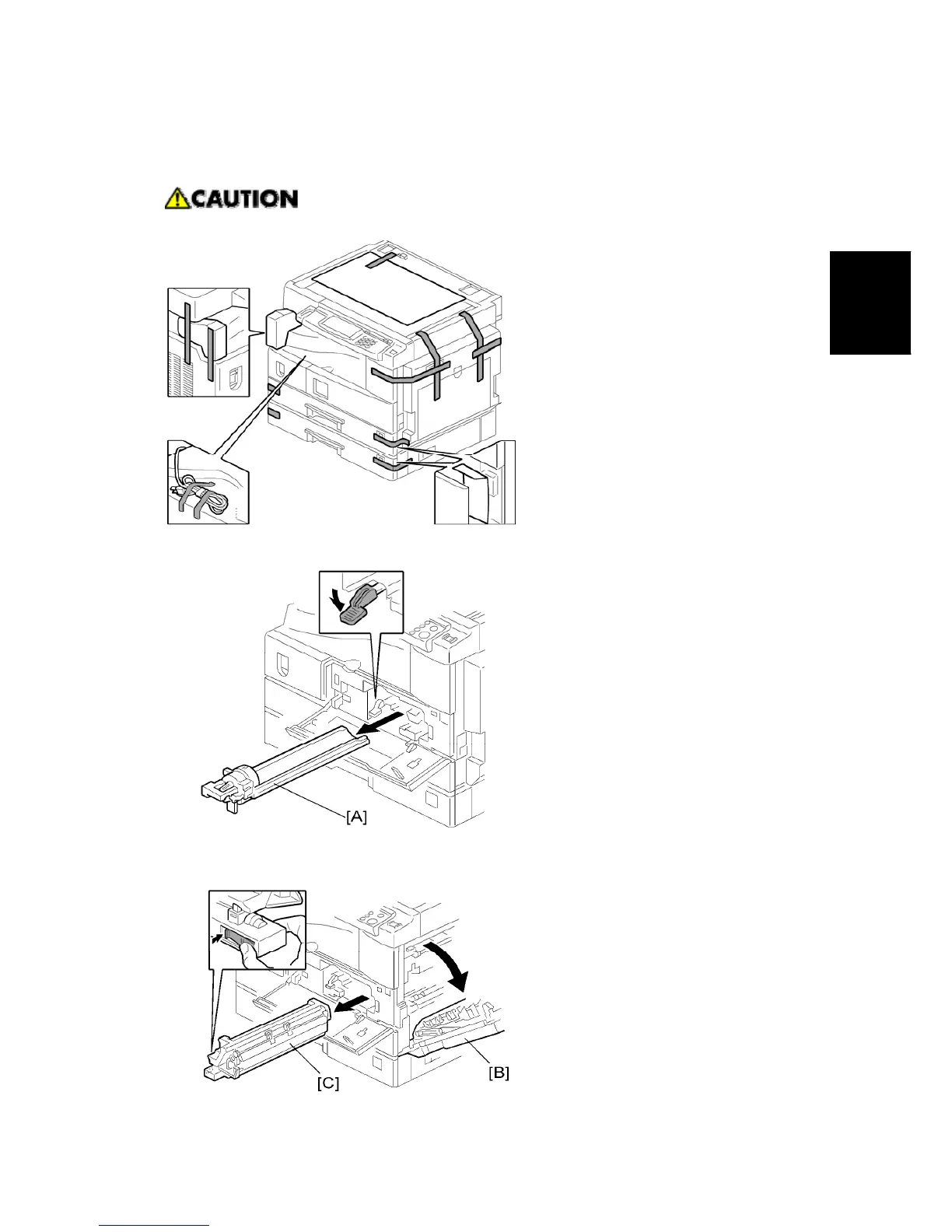

2.2.3 INSTALLATION PROCEDURE
 Unplug the machine power cord before starting the following procedure.
1. Remove filament tape and other padding.
2. Open the front door and remove the toner bottle holder [A]
