PCU Section
D096 4-28 SM
4.6.3 PICK-OFF PAWLS AND TONER DENSITY SENSOR
Do not turn the PCU upside down. This causes toner and developer to spill out.
1. PCU (
p.4-26)

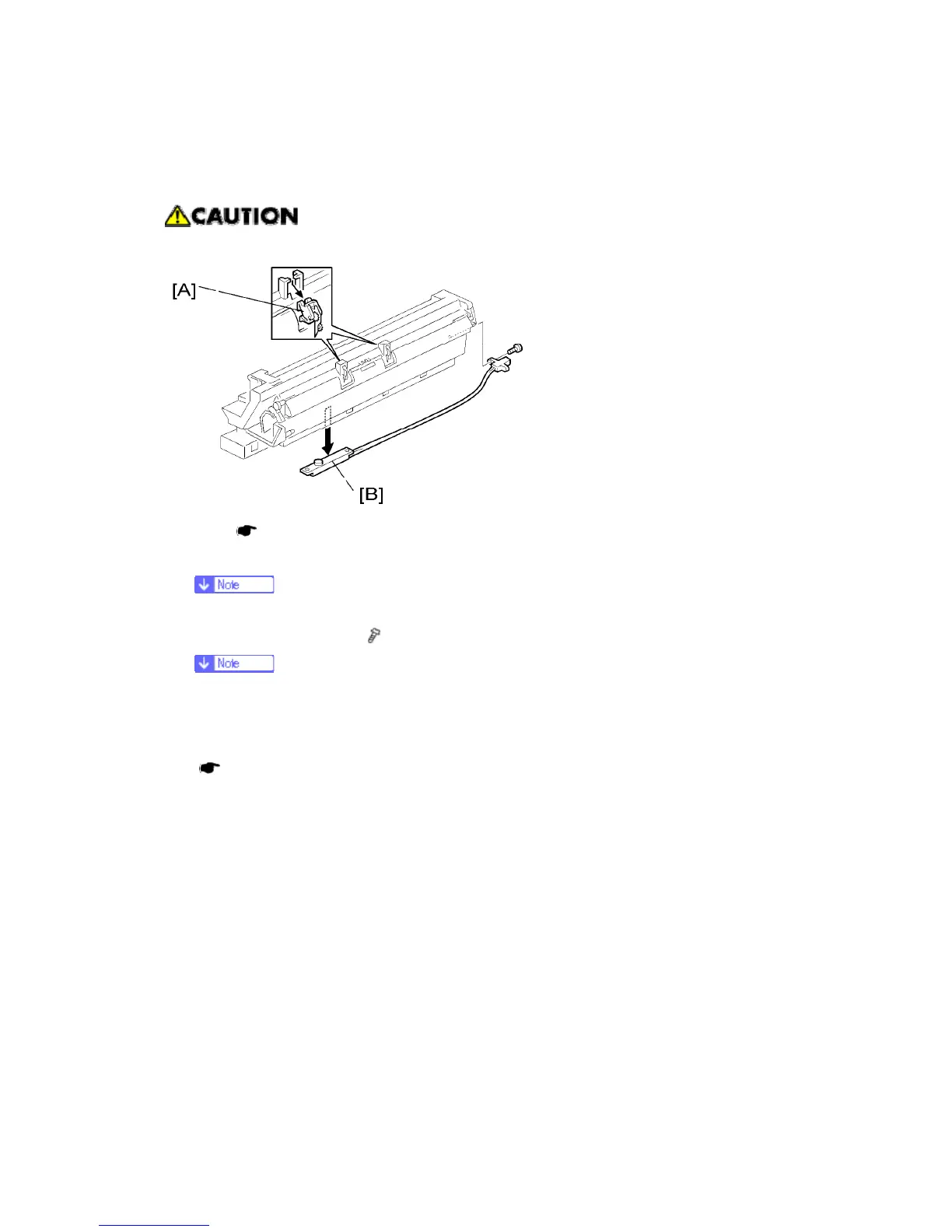

2. Pawl [A]
Pull down the pawl and release the bottom end.
3. Toner density sensor [B] (
x 1)
The toner density sensor is taped to the bottom of the PCU. Pry it off with a
regular screwdriver.
4. After reinstalling the pick-off pawls or toner density sensor, adjust the image quality
(
p.4-33 "After Replacement or Adjustment").
