4.9.4 HOT ROLLER STRIPPER PAWLS

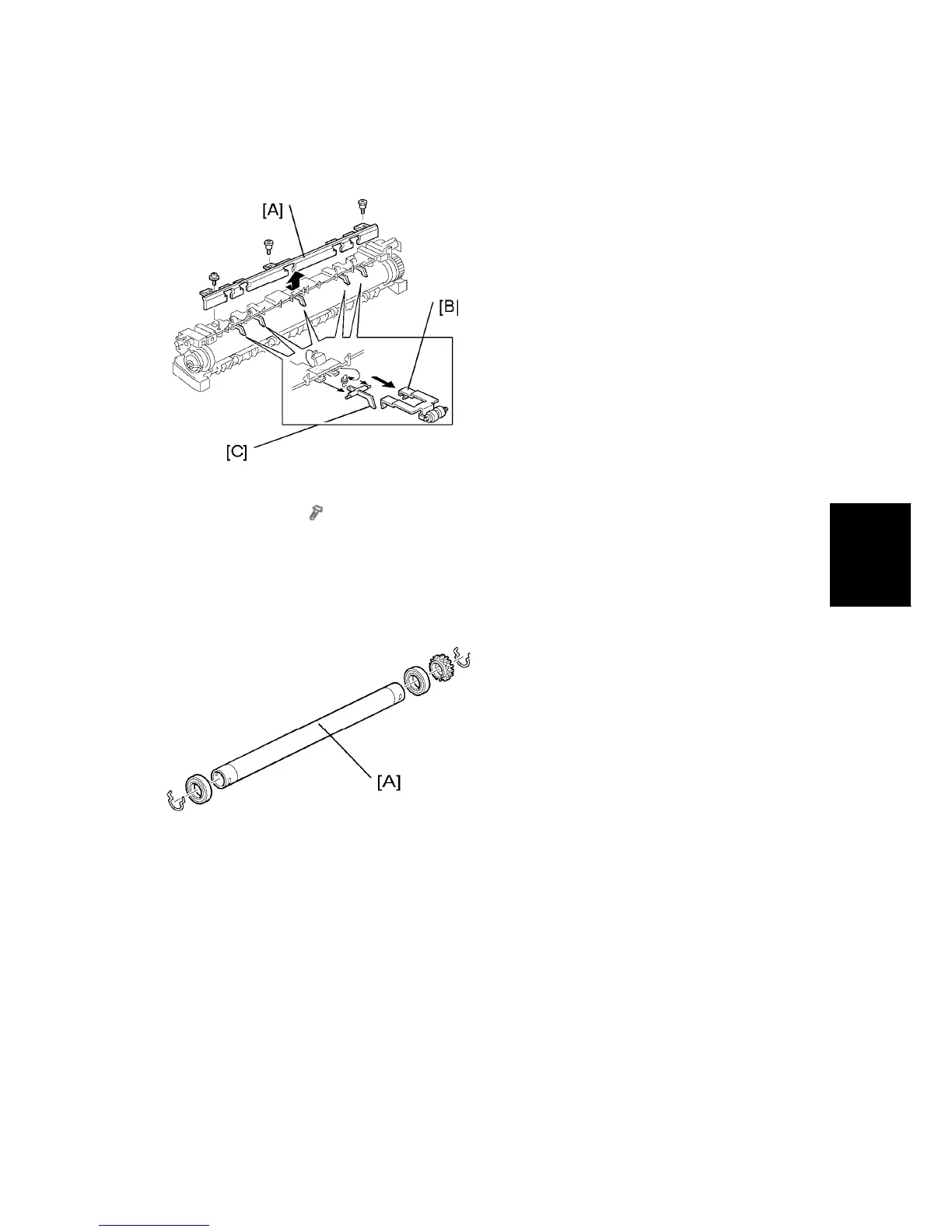

1. Hot roller section (See above)
2. Roller guard [A] (
x 3)
3. Metal holders [B] (1 holder for each)
4. Hot roller stripper pawls [C] (1 spring for each)
4.9.5 HOT ROLLER
1. Hot roller stripper pawls (See above)
2. Hot roller [A] (2 C-rings, 1 gear, 2 bearings)
