Ricoh D096 - 4.4.2 LENS BLOCK

Scanner Unit
SM 4-11 D096
Replacement
and
Adjustment
4.4.2 LENS BLOCK
 Do not touch the paint-locked screws on the lens block. The position of the lens
assembly (black part) is adjusted before shipment.
 Do not grasp the PCB or the lens assembly when you handle the lens block. The
lens assembly may slide out of position.

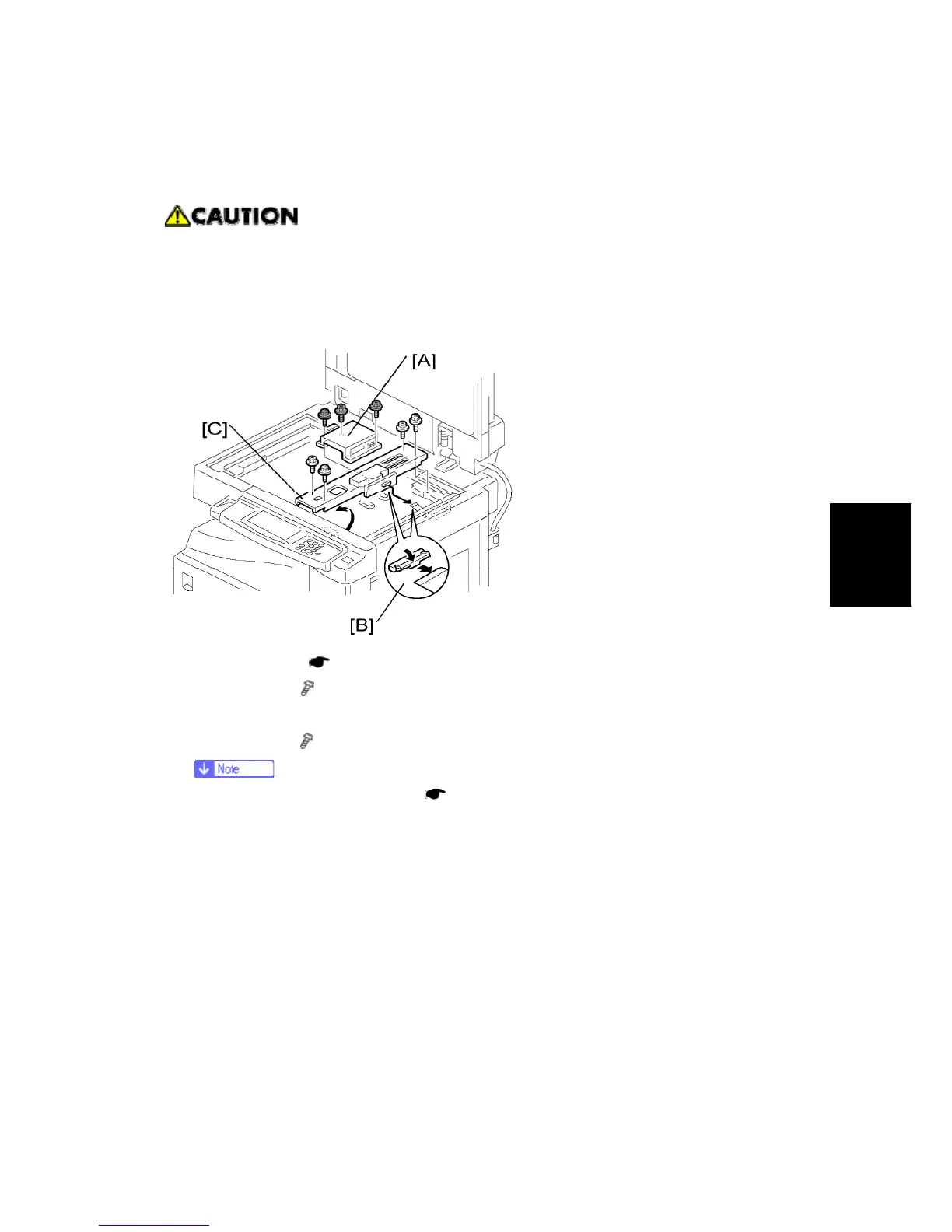

1. Exposure glass ( p.4-10 "Exposure Glass/DF Exposure Glass ")
2. Lens cover [A] (
x 5)
3. Disconnect the flat cable [B].
4. Lens block [C] (
x 4).
 Adjust the image quality (
p.4-58 "Copy Adjustments Printing/Scanning")
after you install a new lens block.
