Copy Adjustments Printing/Scanning
SM 4-59 D096
Replacement
and
Adjustment
4.11.1 PRINTING
Make sure the paper is installed correctly in each paper tray before you start these
adjustments.
Use the Trimming Area Pattern (SP 5902, No.10) to print the test pattern for the
printing adjustments below.
Set SP 5902 to 0 again after you complete these printing adjustments.

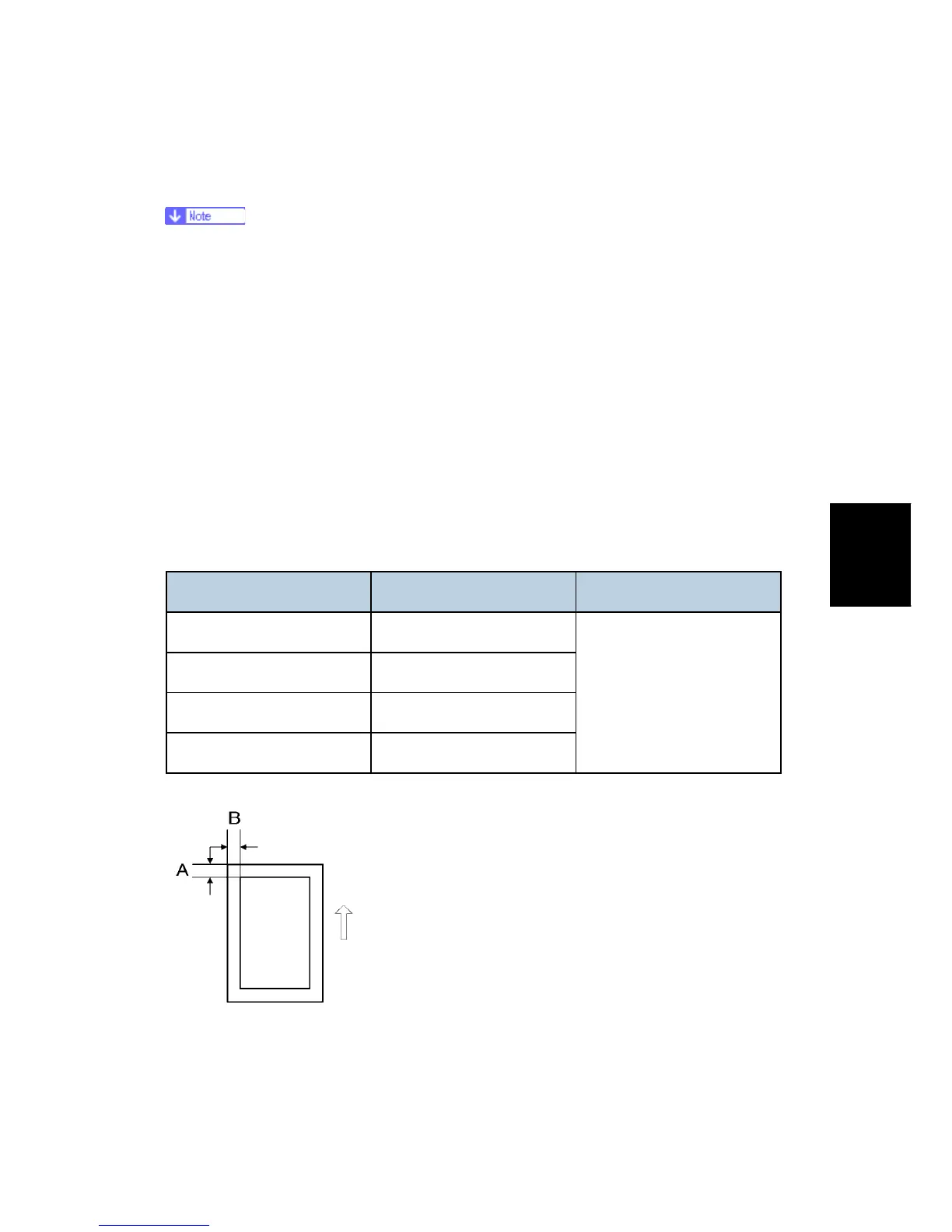

- Registration - Leading Edge/Side-to-Side -
1. Check the leading edge registration for each paper feed station, and adjust each of
these registrations using SP 1001.
2. Check the side-to-side registration for each paper feed station, and adjust these
registrations using SP 1002.
Tray SP mode Specification
All Trays SP 1001 1
2 ± 1.5 mm
By-pass feed SP 1001 2
1st tray SP 1002 1
By-pass feed SP 1002 5
A: Leading Edge Registration
B: Side-to-side Registration
- Blank Margin -
