Ricoh D096 - 4.3.5 FRONT COVER; 4.3.6 FRONT RIGHT COVER

Exterior Covers & Operation Panel
D096 4-6 SM

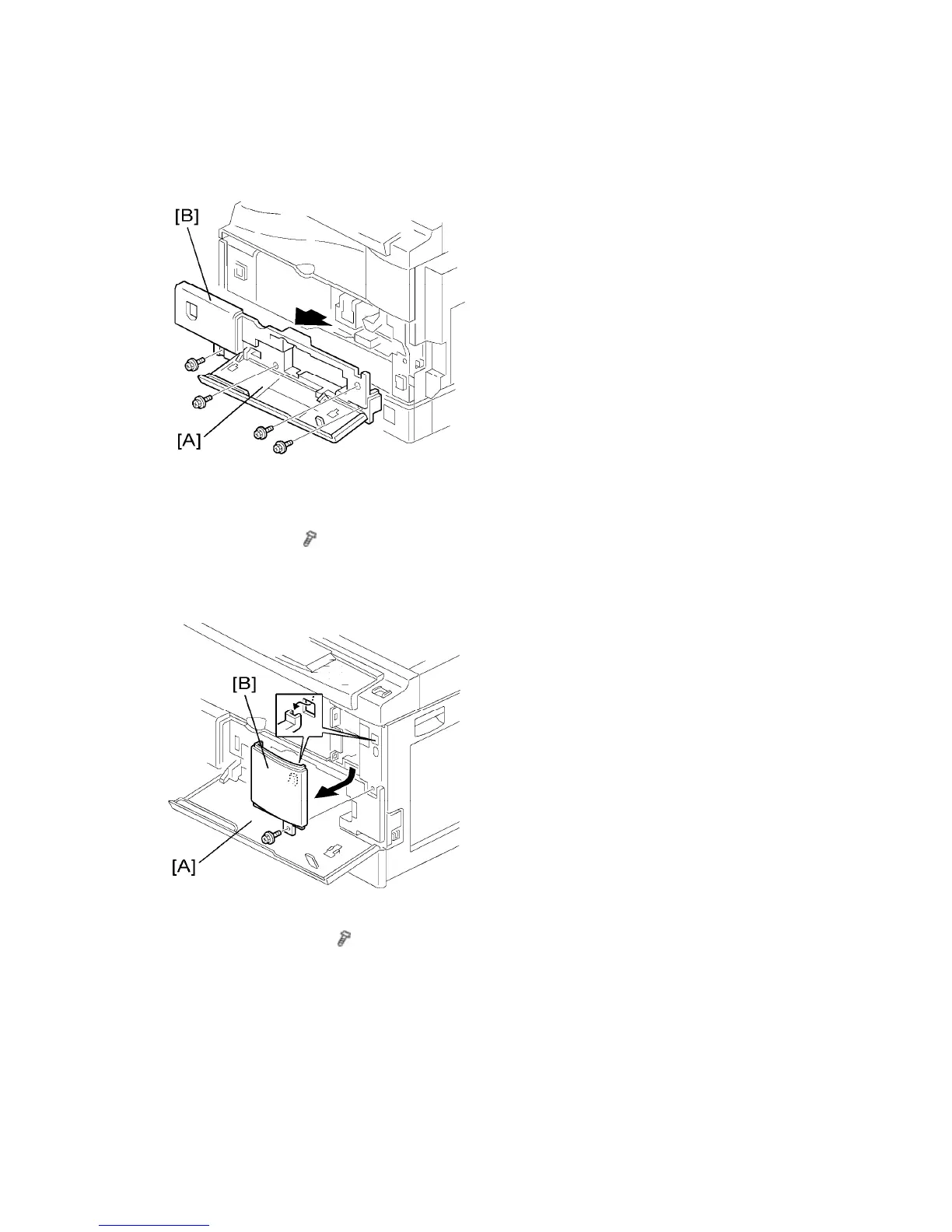

4.3.5 FRONT COVER
1. Pull out the (top) paper tray.
2. Open the front door [A].
3. Front cover [B] (
x 4)
4.3.6 FRONT RIGHT COVER
1. Open the front door [A].
2. Front right cover [B] (
x 1)
