4.6.7 DEVELOPER
1. PCU (
p.4-26)
2. To let the toner fall to the development section, gently tap about eight different spots on
the top of the PCU with a screwdriver. Each spot must be approximately at an equal
distance from the next spot.
3. Reinstall the PCU in the copier.
4. Turn the main switch on.
5. Open and close the front door and wait for the machine to rotate the development roller
for about 10 seconds.
6. Repeat the previous step two more times.
7. PCU (
p.4-26)
8. Separate the developer section from the OPC drum section (
p.4-29).

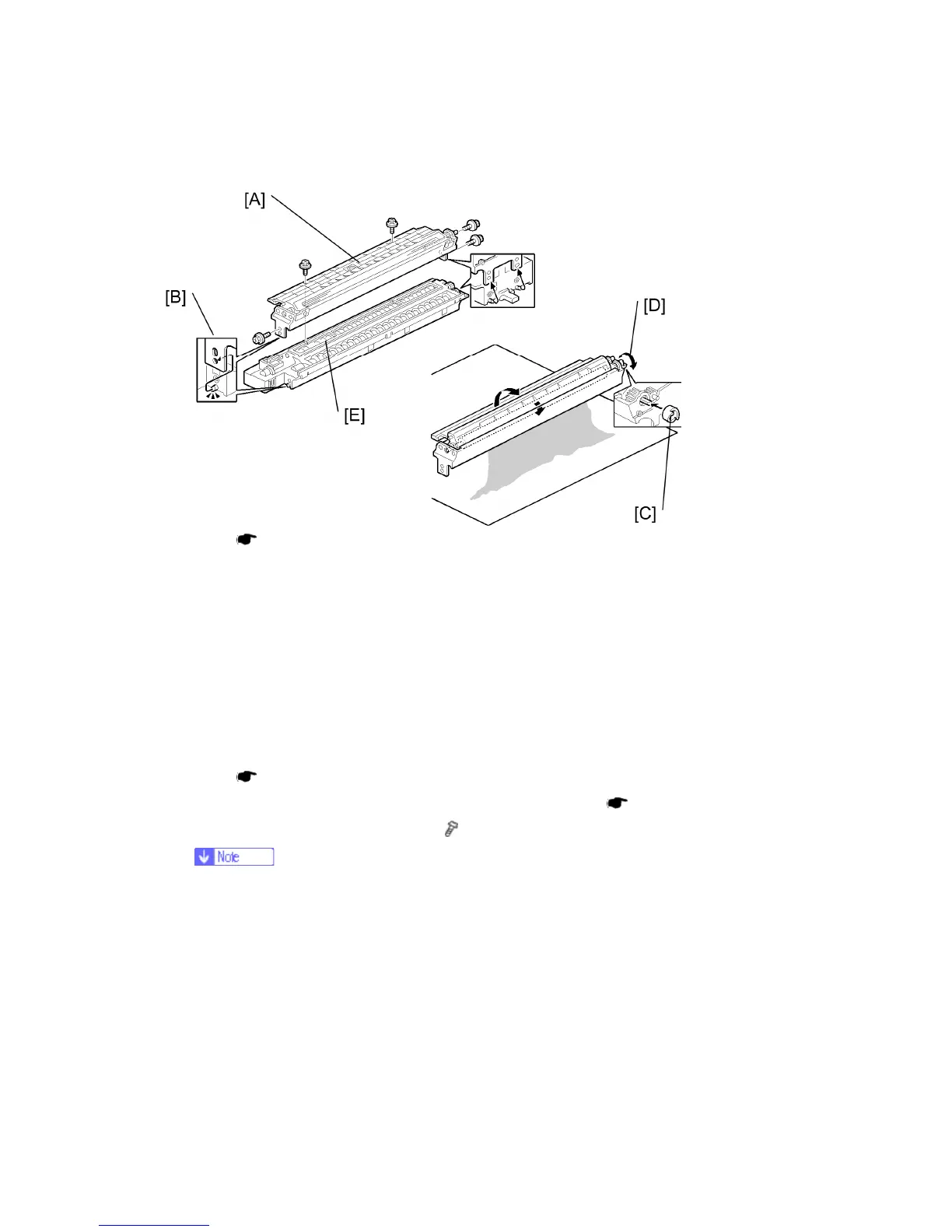

9. Top part [A] of the development unit (
x 5)
Release the hook [B].
10. Set the coupling [C] back to the shaft.
11. Turn the coupling in the direction of the arrow [D] to remove developer from the roller.
12. Turn the bottom part [E] over and rotate the gears to remove the developer.
13. Load new developer.
14. When reassembling, execute SP 2214 to reinitialize the TD sensor.
