Exterior Covers & Operation Panel
D096 4-8 SM
4.3.9 BY-PASS TRAY
1. Right rear cover (above)
2. Open the right door.
3. Release the by-pass tray cable from the clamps (see [A] on the preceding procedure)
and disconnect the connector (5-pin connector with colored wires).

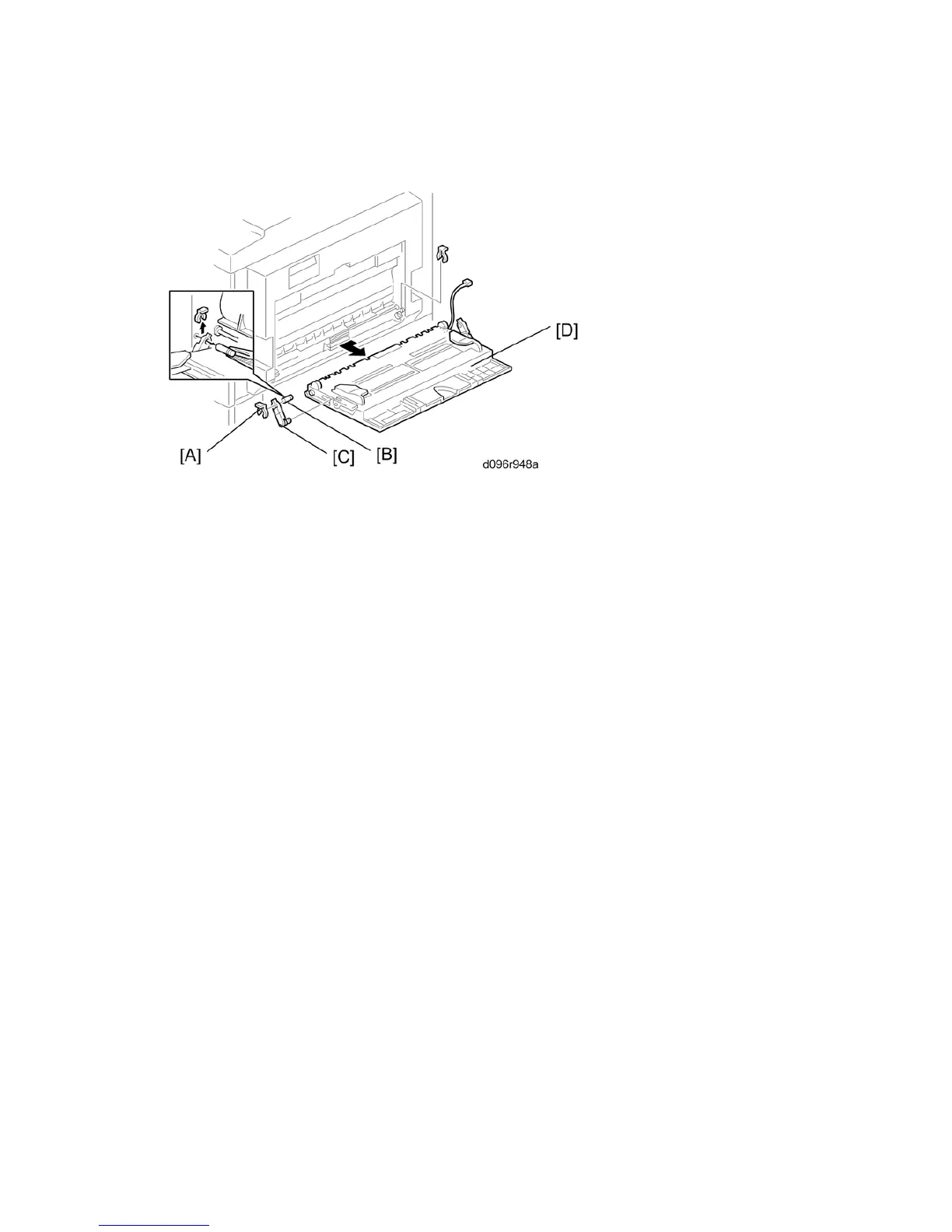

4. Front-side clip ring [A]
5. Front-side pin [B] (You can push the pin from behind the right door.)
6. Front-side tray holder arm [C]
7. Remove the rear-side clip ring, pin, and tray holder arm in the same manner.
8. By-pass tray [D]
