Scanner Unit
SM 4-13 D096
Replacement
and
Adjustment
4.4.4 SCANNER MOTOR
1. Left upper cover, front upper left cover, operation panel, top rear cover (
p.4-10
"Exposure Glass/DF Exposure Glass ")
2. Exposure glass (
p.4-10 "Exposure Glass/DF Exposure Glass ")

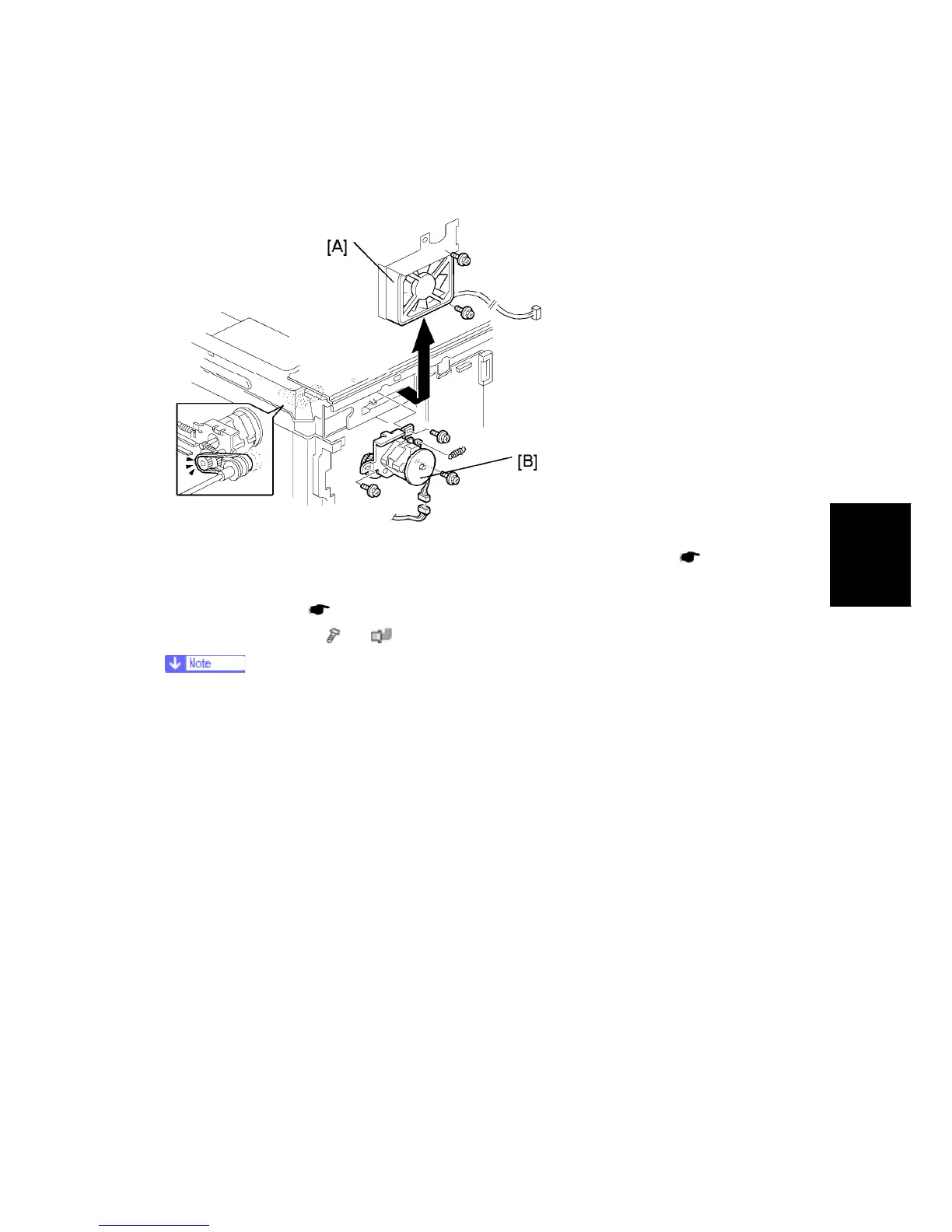

3. Scanner motor [B] (
x 3, x 1, 1 spring, 1 belt)
Install the belt first, and then set the spring when you reassemble. Fasten the
leftmost screw (viewed from the rear), and fasten the other two screws.
Adjust the image quality after you install the motor.
