Paper Feed Section
SM 4-41 D096
Replacement
and
Adjustment

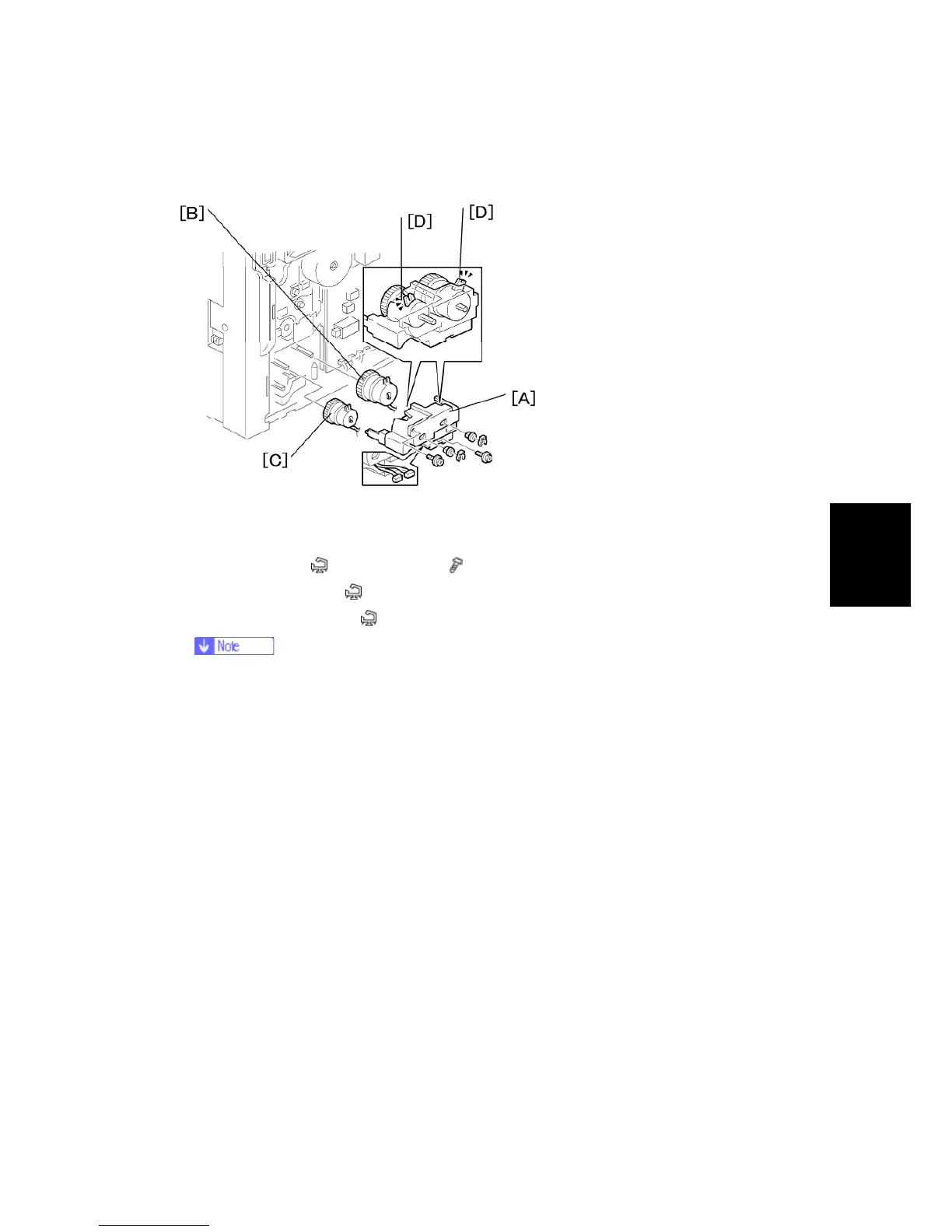

4.7.10 PAPER FEED CLUTCH AND BY-PASS FEED CLUTCH
1. Rear cover
2. High-voltage power supply board
3. Clutch cover [A] (
x 2, 2 bushings, x 2 )
4. Paper feed clutch [B] (
x 1)
5. By-pass feed clutch [C] (
x 1)
Make sure that the rotation-prevention tabs [D] on the clutches fit correctly into
the corresponding openings on the clutch cover when you reinstall.
