Other Replacements
SM 4-55 D096
Replacement
and
Adjustment

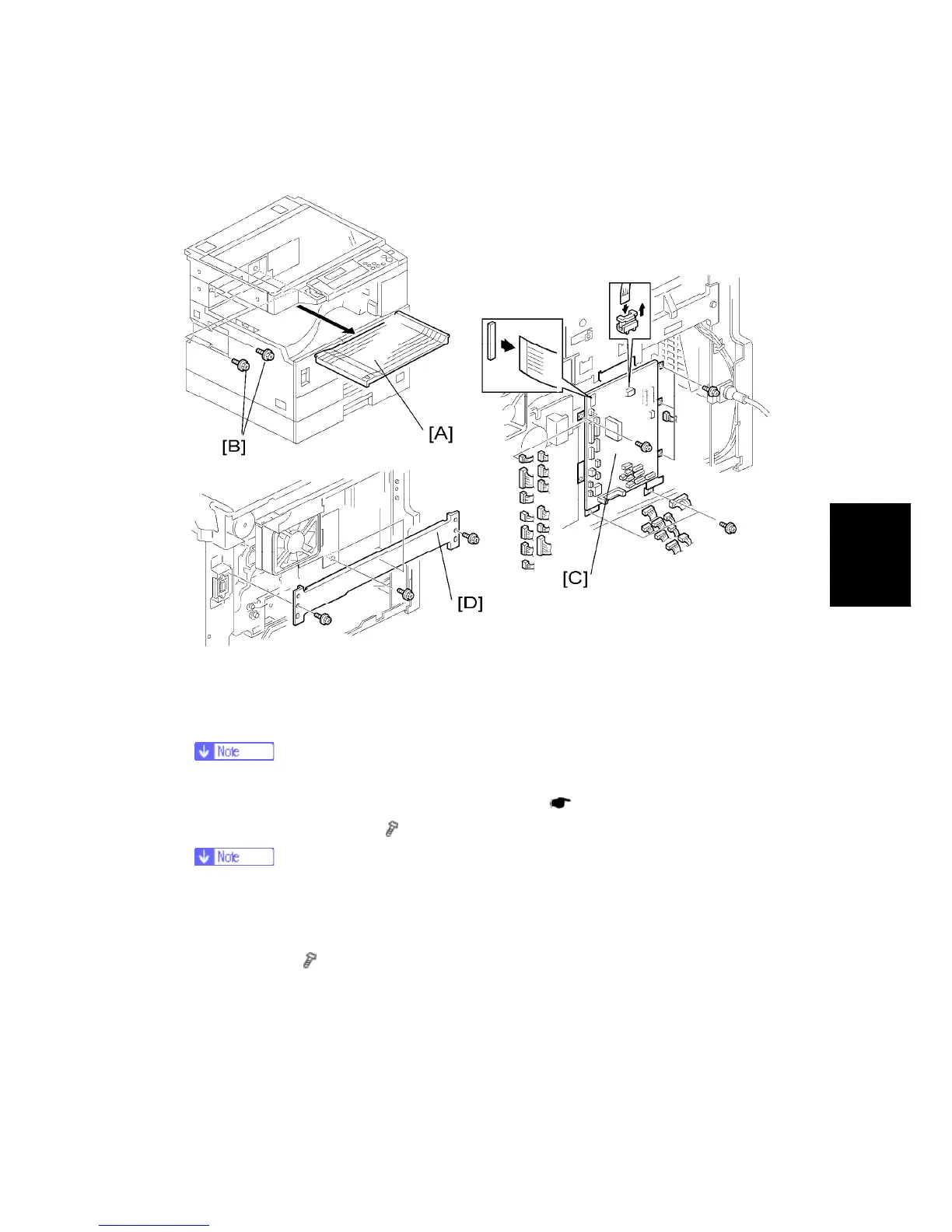

4.10.7 GEARBOX
- Replacement Procedure -
1. Inverter tray [A]
2. Two screws [B] from the middle rear cover
This step releases the topmost part of the BICU bracket.
3. High-voltage power supply board (with the bracket) (
p.4-40)
4. BICU (with the bracket) [C] (
x 6)
If you have difficulty to remove the bracket, remove the screw at the middle of
the crosspiece (see step 6).
5. Main motor
6. Crosspiece [D] (
x 3)
7. Registration clutch
To Next Page
