Ricoh D096 - Page 118

Other Replacements
D096 4-56 SM
8. PCU
 This step releases the gear (on the gearbox) that drives the PCU.
9. Ground plate [E] (
x 2)
10. Gearbox [F] (
x 5, 1 belt)
Do not change the position of the spring [G] and make sure that the bushing [H] on the
PCU drive shaft is in the correct position you when you reassemble. You can adjust its
position by rotating the gear [I] seen from the opening of the gearbox.

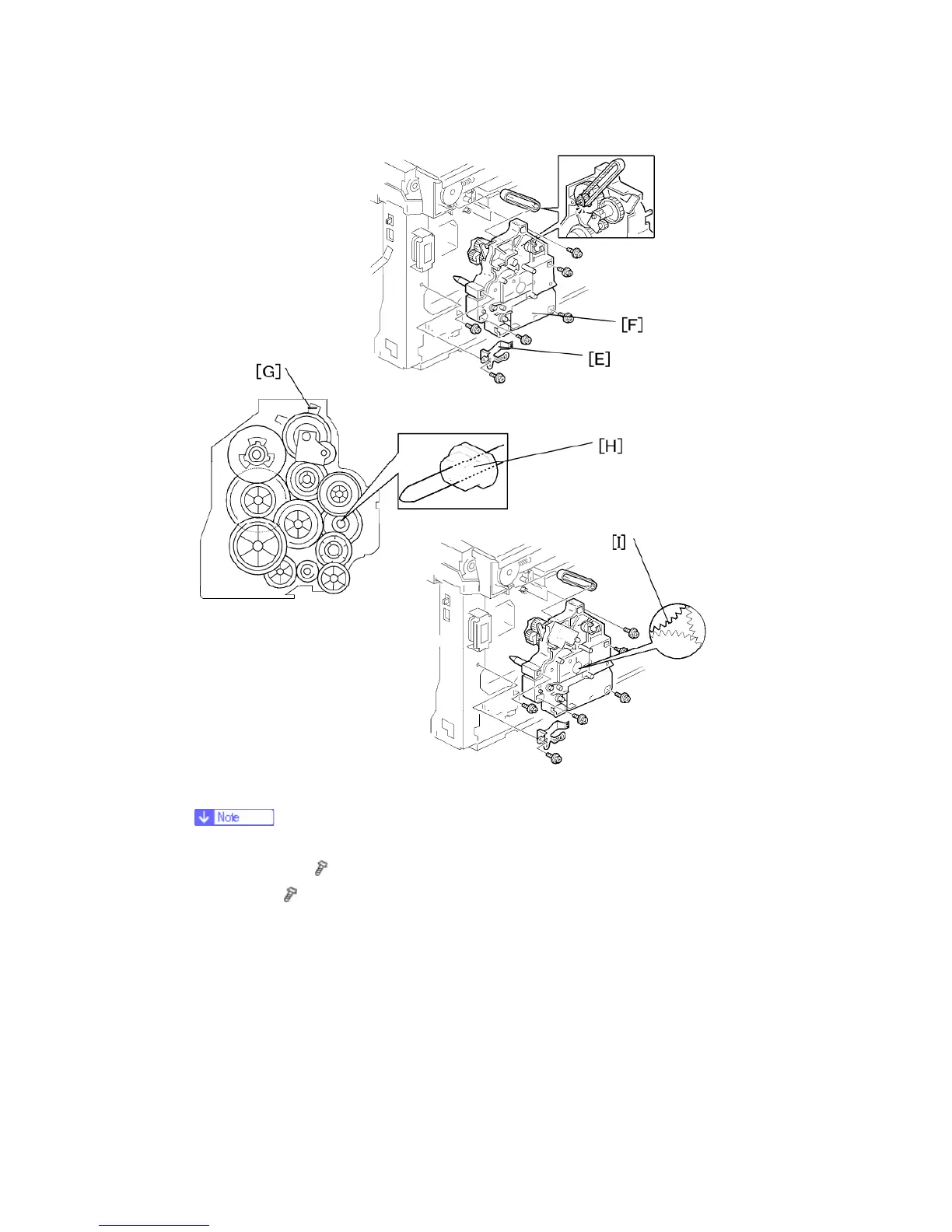

- Gear Arrangement in the Gearbox -
