Ricoh D096 - DOCUMENT FEEDER DF2000 REPLACEMENT AND ADJUSTMENT; 3.1 EXTERIOR COVERS; 3.1.1 REAR COVER; 3.1.2 ORIGINAL TABLE

EXTERIOR COVERS
SM 15 B813
Document
Feeder
DF2000
B813
3. REPLACEMENT AND ADJUSTMENT
3.1 EXTERIOR COVERS

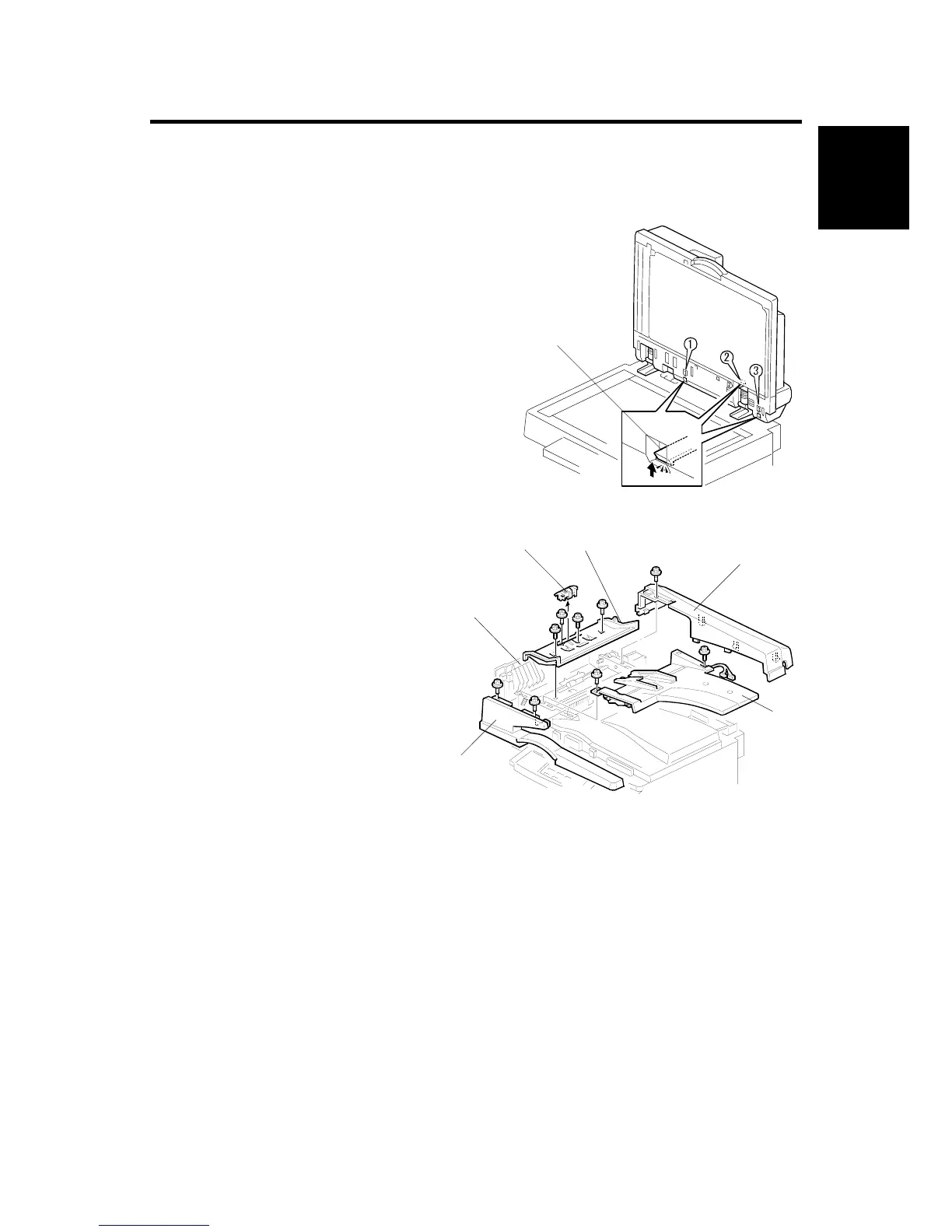

3.1.1 REAR COVER
1. Lift the DF.
2. Unhook the three latches [A] in the
order marked on the DF body.
3. Close the DF.
4. Open the DF feed cover [B].
5. Rear cover [C] ( x 1)
3.1.2 ORIGINAL TABLE
1. Rear cover ( 3.1.1)
2. Original table [D] ( x 2,  x 2)
3.1.3 FRONT COVER
1. Open the DF feed cover [B].
2. Original table. ( 3.1.2)
3. Front cover [E] ( x 2)
3.1.4 ORIGINAL ENTRANCE
GUIDE
1. Feed unit ( 3.2)
2. Original table ( 3.1.2)
3. Roller cover [F]
4. Original entrance guide [G] ( x 4)
B813R901.WMF
B813R902.WMF
[A]
[F]
[E]
[D]
[C]
[B]
[G]
